Lightweight and easy to cut and bend
Processing methods

Punching and bending

photo of Example processing: reversed pyramid forming for LED
Example processing: reversed pyramid forming for LED (punching and bending)

  • MCPET and MCPOLYCA can be easily cut and bent.
  • Cutters and scissors are also available.
  • Half pressed line will enable you to bend the sheet easily.

Forming

photo of Formed MCPOLYCA product
Formed MCPOLYCA product (deep-drawn vacuum forming)

  • Match molding is recommended to thermoform MCPET.
  • Since MCPOLYCA is based on a non-crystalline resin, vaccum molding is also available.
Recommended molding method
  Vacuum forming Vacuum pressure forming Matched mold
MCPET impractical impractical marginal
MCPOLYCA fine fine fine

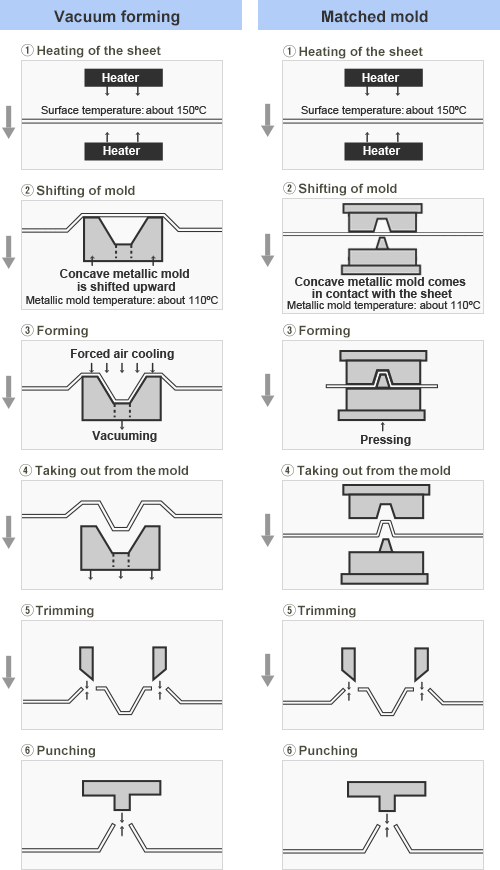

fig of forming

The temperature conditions shown above are the recommended temperature conditions when forming MCPOLYCA. When forming MCPET, use of the matched mold method and setting of the sheet surface temperature to 200ºC and the metallic mold temperature to 170ºC is recommended.

Open New Window.How to use MCPET
