HSD WAN Unnumbered

INFONET対向専用線接続３（WAN Unnumbered）

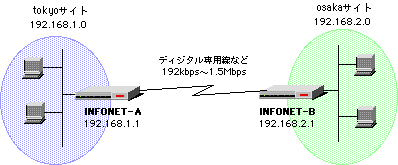

INFONETシリーズでは、専用線を用いた１対１の接続に対応しています。専用線側にIPアドレスを設定しない、WAN Unnumbered の接続です。

＊ここでは、INFONET-RX30での設定例を挙げます。

INFONET-Aの設定

INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 17:34:14 (   0 00:38:24) Normal Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 6　　　←Super Modeに移動します
New password: 　　　←必ずパスワードを入れてください
Retype New password:
New password is accepted.

INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 17:34:25 (   0 00:38:35)  Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 2

*** Selecting PORT way ***
* 1 HSD
  2 FR
Select the number. [1]:

*** Set current time parameter(s) ***
1998/06/25 17:34:29
Do you change (y/n)? [n]:

*** Main: Set HSD configuration ***
<Main HSD parameter(s)>
    speed                         : 192Kbps
Do you change (y/n)? [n]: y
speed(1:192K 2:256K 3:384K 4:512K 5:768K 6:1024K 7:1152K 8:1.5M) [1]: 5
 　←回線速度は768kbps
Main HSD parameter(s) are set to the following values.
<Main HSD parameter(s)>
    speed                         : 768Kbps
Set OK (y/n)? [y]:

*** Set basic configuration ***
<Basic configuration parameter(s)>
    IP routing       : use
    IP filtering     : not use
    IPX routing      : not use
    AppleTalk routing: not use
    bridging         : not use
    SNMP             : use
Do you change (y/n)? [n]:

*** Set IP router configuration ***
<IP router configuration parameter(s)>
    routing interface list
                                              broadcast or
            IP address       subnetmask         remote address interface type
    -------+----------------+----------------+----------------+--------------
    LAN     192.52.150.1     255.255.255.0    192.52.150.255   broadcast
    HSD     0.0.0.0          255.255.255.255  0.0.0.0          point to point
    OSPF protocol: not use
Do you change (y/n)? [n]: y
LAN    IP address [192.52.150.1]: 192.168.1.1
←ルータのLANアドレス
       subnetmask [255.255.255.0]:
       broadcast [192.168.1.255]:
HSD    interface type (1:broadcast 2:point to point) [2]:
       IP address []:
       remote IP address [0.0.0.0]: 192.168.2.1
←相手ルータのLANアドレス
       remote subnetmask [255.255.255.0]:
OSPF protocol (1:use 2:not use) [2]:
IP router parameter(s) are set to the following values.
<IP router configuration parameter(s)>
    routing interface list
                                              broadcast or
            IP address       subnetmask         remote address interface type
    -------+----------------+----------------+----------------+--------------
    LAN     192.168.1.1      255.255.255.0    192.168.1.255    broadcast
    HSD     ---.---.---.---  255.255.255.0    192.168.2.1      point to point
    OSPF protocol: not use
Set OK (y/n)? [y]:

*** Set RIP(IP) motion configuration ***
<RIP(IP) motion parameter(s)>
    mode          : supplier
    default metric: 16
Do you change (y/n)? [n]:

*** Set RIP(IP) interface configuration ***
<RIP(IP) interface parameter(s)>

           send    recv    metric pre-    broad- interval   ageout time
           control control        ference   cast      (sec)             (sec)
    ------+-------+-------+------+-------+------+----------+------+----------
    LAN    RIP1    RIP1,2  0      0       -      -          -      -
    HSD    RIP1    RIP1,2  0      0       on     30         on     180
    <RIP2 password>
        LAN    :                 (not configured)
        HSD    :                 (not configured)
Do you change (y/n)? [n]:

Do you change (y/n)? [n]: y
LAN RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]:
        recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]:
    password []:
    metric [0]:
    preference [0]:
HSD RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]: 4
←RIPを使用しません
        recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]: 4
←RIPを使用しません
    metric [0]:
    preference [0]:
    broadcast (1:on 2:off) [1]:
    broadcast interval (sec) [30]:
    RIP entry ageout (1:on 2:off) [1]:
    ageout time (sec) [180]:

RIP(IP) interface parameter(s) are set to the following values.
<RIP(IP) interface parameter(s)>

           send    recv    metric pre-    broad- interval   ageout time
           control control        ference   cast      (sec)             (sec)
    ------+-------+-------+------+-------+------+----------+------+----------
    LAN    RIP1    RIP1,2  0      0       -      -          -      -
    HSD    off     off     0      0       on     30         on     180
    <RIP2 password>
        LAN    :                 (not configured)
        HSD    :
Set OK (y/n)? [y]:

*** Set IP static routing configuration ***
    1. change  2. delete  3. add  4. display  5. end
Select the number. [5]: 4

<IP static routing table (max 32 entries)>
    no  dst address     mask            metric preference
        gateway
    ---+---------------+---------------+------+----------
     1. 0.0.0.0         ---.---.---.--- 16     50
        HSD

*** Set IP static routing configuration ***
    1. change  2. delete  3. add  4. display  5. end
Select the number. [5]:  2　←必要でないスタティックルートを削除する

<Delete IP static routing data>
Select the entry number. : 1
Selected IP static routing data:
    no  dst address     mask            metric preference
        gateway
    ---+---------------+---------------+------+----------
     1. 0.0.0.0         ---.---.---.--- 16     50
        HSD
Delete OK (y/n)? [n]: y

*** Set IP static routing configuration ***
    1. change  2. delete  3. add  4. display  5. end
Select the number. [5]: 3　←スタティックルートを設定する

<Add IP static routing data>
destination address [0.0.0.0]: 192.168.2.0
mask [255.255.255.0]:
gateway type(1:IP address 2:Interface) [1]: 2
interface(1:HSD) []: 1
metric [16]: 2
preference [50]:
IP static routing data:
    no  dst address     mask            metric preference
        gateway
    ---+---------------+---------------+------+----------
     1. 192.168.2.0     255.255.255.0   2      50
        HSD
Add OK (y/n)? [y]:

*** Set IP static routing configuration ***
    1. change  2. delete  3. add  4. display  5. end
Select the number. [5]:
：
：省略
：
Now you have set all configurations!
Do you display the configurations (y/n)? [y]: n

(Warning): Some configurations are not updated unless you reset
    1. Save new parameter(s) and reset    3. Configurations set again
    2. Save new parameter(s) only         4. Quit (no save and no reset)
Select the number. : 1　←リセットが行われ立ち上がり後、設定が有効です

INFONET-Bの設定

INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 17:34:14 (   0 00:38:24) Normal Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 6　　　←Super Modeに移動します
New password: 　　　←必ずパスワードを入れてください
Retype New password:
New password is accepted.

INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 17:34:25 (   0 00:38:35)  Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 2

*** Selecting PORT way ***
* 1 HSD
  2 FR
Select the number. [1]:

*** Set current time parameter(s) ***
1998/06/25 17:34:29
Do you change (y/n)? [n]:

*** Main: Set HSD configuration ***
<Main HSD parameter(s)>
    speed                         : 192Kbps
Do you change (y/n)? [n]: y
speed(1:192K 2:256K 3:384K 4:512K 5:768K 6:1024K 7:1152K 8:1.5M) [1]: 5
 　←回線速度は768kbps
Main HSD parameter(s) are set to the following values.
<Main HSD parameter(s)>
    speed                         : 768Kbps
Set OK (y/n)? [y]:

*** Set basic configuration ***
<Basic configuration parameter(s)>
    IP routing       : use
    IP filtering     : not use
    IPX routing      : not use
    AppleTalk routing: not use
    bridging         : not use
    SNMP             : use
Do you change (y/n)? [n]:

*** Set IP router configuration ***
<IP router configuration parameter(s)>
    routing interface list
                                              broadcast or
            IP address       subnetmask         remote address interface type
    -------+----------------+----------------+----------------+--------------
    LAN     192.52.150.1     255.255.255.0    192.52.150.255   broadcast
    HSD     0.0.0.0          255.255.255.255  0.0.0.0          point to point
    OSPF protocol: not use
Do you change (y/n)? [n]: y
LAN    IP address [192.52.150.1]: 192.168.2.1
←ルータのLANアドレス
       subnetmask [255.255.255.0]:
       broadcast [192.168.2.255]:
HSD    interface type (1:broadcast 2:point to point) [2]:
       IP address []:
       remote IP address [0.0.0.0]: 192.168.1.1
←相手ルータのLANアドレス
       remote subnetmask [255.255.255.0]:
OSPF protocol (1:use 2:not use) [2]:
IP router parameter(s) are set to the following values.
<IP router configuration parameter(s)>
    routing interface list
                                              broadcast or
            IP address       subnetmask         remote address interface type
    -------+----------------+----------------+----------------+--------------
    LAN     192.168.2.1      255.255.255.0    192.168.2.255    broadcast
    HSD     ---.---.---.---  255.255.255.0    192.168.1.1      point to point
    OSPF protocol: not use
Set OK (y/n)? [y]:

*** Set RIP(IP) motion configuration ***
<RIP(IP) motion parameter(s)>
    mode          : supplier
    default metric: 16
Do you change (y/n)? [n]:

*** Set RIP(IP) interface configuration ***
<RIP(IP) interface parameter(s)>

           send    recv    metric pre-    broad- interval   ageout time
           control control        ference   cast      (sec)             (sec)
    ------+-------+-------+------+-------+------+----------+------+----------
    LAN    RIP1    RIP1,2  0      0       -      -          -      -
    HSD    RIP1    RIP1,2  0      0       on     30         on     180
    <RIP2 password>
        LAN    :                 (not configured)
        HSD    :                 (not configured)
Do you change (y/n)? [n]:

Do you change (y/n)? [n]: y
LAN RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]:
        recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]:
    password []:
    metric [0]:
    preference [0]:
HSD RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]: 4
←RIPを使用しません
        recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]: 4
←RIPを使用しません
    metric [0]:
    preference [0]:
    broadcast (1:on 2:off) [1]:
    broadcast interval (sec) [30]:
    RIP entry ageout (1:on 2:off) [1]:
    ageout time (sec) [180]:

RIP(IP) interface parameter(s) are set to the following values.
<RIP(IP) interface parameter(s)>

           send    recv    metric pre-    broad- interval   ageout time
           control control        ference   cast      (sec)             (sec)
    ------+-------+-------+------+-------+------+----------+------+----------
    LAN    RIP1    RIP1,2  0      0       -      -          -      -
    HSD    off     off     0      0       on     30         on     180
    <RIP2 password>
        LAN    :                 (not configured)
        HSD    :
Set OK (y/n)? [y]:

*** Set IP static routing configuration ***
    1. change  2. delete  3. add  4. display  5. end
Select the number. [5]: 4

<IP static routing table (max 32 entries)>
    no  dst address     mask            metric preference
        gateway
    ---+---------------+---------------+------+----------
     1. 0.0.0.0         ---.---.---.--- 16     50
        HSD

*** Set IP static routing configuration ***
    1. change  2. delete  3. add  4. display  5. end
Select the number. [5]:  2　←必要でないスタティックルートを削除する

<Delete IP static routing data>
Select the entry number. : 1
Selected IP static routing data:
    no  dst address     mask            metric preference
        gateway
    ---+---------------+---------------+------+----------
     1. 0.0.0.0         ---.---.---.--- 16     50
        HSD
Delete OK (y/n)? [n]: y

*** Set IP static routing configuration ***
    1. change  2. delete  3. add  4. display  5. end
Select the number. [5]: 3　←スタティックルートを設定する

<Add IP static routing data>
destination address [0.0.0.0]: 192.168.1.0
mask [255.255.255.0]:
gateway type(1:IP address 2:Interface) [1]: 2
interface(1:HSD) []: 1
metric [16]: 2
preference [50]:
IP static routing data:
    no  dst address     mask            metric preference
        gateway
    ---+---------------+---------------+------+----------
     1. 192.168.1.0     255.255.255.0   2      50
        HSD
Add OK (y/n)? [y]:

*** Set IP static routing configuration ***
    1. change  2. delete  3. add  4. display  5. end
Select the number. [5]:
：
：省略
：
Now you have set all configurations!
Do you display the configurations (y/n)? [y]: n

(Warning): Some configurations are not updated unless you reset
    1. Save new parameter(s) and reset    3. Configurations set again
    2. Save new parameter(s) only         4. Quit (no save and no reset)
Select the number. : 1　←リセットが行われ立ち上がり後、設定が有効です

ソリューションメニューへ戻る
