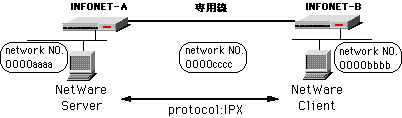

＊各装置でサポートしているWAN回線に対してサポートしておりますが、専用線での例を挙げます。
|
conf#wan hsd 128 ←速度を設定する conf#interface ipx lan network=0000aaaa tick=1 ←ルータのLANアドレス conf#interface ipx hsd network=0000cccc tick=11 ←ルータのWANアドレス conf#ipxrouting on ←IPXルーティングを使用する conf#exit configuration modified. save OK ? (y/n): y please reset# reset Do you want to continue (y/n)?: y
conf#wan hsd 128 conf#interface ipx lan network=0000bbbb tick=1 conf#interface ipx hsd network=0000cccc tick=11 conf#ipxrouting on conf#exit configuration modified. save OK ? (y/n): y please reset# reset Do you want to continue (y/n)?: y
INFONET-RX20 Remote Router A V01.03 1998.04.15
WAN topology ( 6) 1998/04/22 15:47:38 ( 0 00:01:56) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 2 ←基本設定を行います
*** Selecting PORT way ***
1 HSD, HSD
* 2 HSD, ISDN
3 FR, ISDN
Select the number. [2]:
：
：省略
：
*** Selecting WAN topology ***
<"L:" is load split, "B:" is backup, "L+B:" is load split and backup>
1 HSD
2 HSD ( B:ISDN#1)
3 HSD (L+B:ISDN#1)
4 HSD (L+B:ISDN#1,2)
5 HSD ( B:ISDN#1,2)
* 6 ISDN#1
7 ISDN#1 (L :ISDN#2)
8 HSD, ISDN#1
9 HSD, ISDN#1 (L :ISDN#2)
10 ISDN#1, ISDN#2
11 HSD ( B:ISDN#1),ISDN#2
12 HSD (L+B:ISDN#1),ISDN#2
13 HSD, ISDN#1, ISDN#2
Select the number. [6]: 1 ←HSDを選択します
*** Main: Set HSD configuration ***
<Main HSD parameter(s)>
speed : 0Kbps
Do you change (y/n)? [n]: y
speed(1:64K 2:128K) [2]: ←回線速度は128Kbps
Main HSD parameter(s) are set to the following values.
<Main HSD parameter(s)>
speed : 128Kbps
Set OK (y/n)? [y]:
*** Set basic configuration ***
<Basic configuration parameter(s)>
IP routing : use
IP filtering : not use
IPX routing : not use
AppleTalk routing: not use
bridging : not use
SNMP : use
Do you change (y/n)? [n]: y
IP routing (1:use 2:not use) [1]: 2 ←IPルーティングを使用しない
IP filtering (1:use 2:not use) [2]:
IPX routing (1:use 2:not use) [2]: 1 ←IPXルーティングを使用する
AppleTalk routing (1:use 2:not use) [2]:
bridging (1:use 2:not use) [2]:
SNMP (1:use 2:not use) [1]: 2
Basic parameter(s) are set to the following values.
<Basic configuration parameter(s)>
IP routing : not use
IP filtering : not use
IPX routing : use
AppleTalk routing: not use
bridging : not use
SNMP : not use
Set OK (y/n)? [y]:
*** Set IPX router configuration ***
<IPX router parameter(s)>
router name:
routing interface list
network NO. node ID. frame type tick
-------+-------------+---------------+--------------+-----
LAN 00000000 ETHERNET_802.2 1
HSD 00000000 0000.0000.0000 ETHERNET_802.2 1
IPX filtering:use
Do you change (y/n)? [n]: y
router name []:
LAN network NO. [00000000]: 0000aaaa ←ルータのLANアドレス
frame type
(1:ETHERNET_II 2:ETHERNET_802.3 3:ETHERNET_802.2 4:ETHERNET_SNAP) [3]:
ticks [1]:
HSD network NO. [00000000]: 0000cccc ←ルータのWANアドレス
node ID. [0000.0000.0000]:
frame type
(1:ETHERNET_II 2:ETHERNET_802.3 3:ETHERNET_802.2 4:ETHERNET_SNAP) [3]:
ticks [1]: 11
IPX filtering (1:use 2:not use) [1]:
IPX router parameter(s) are set to the following values ***
<IPX router parameter(s)>
router name:
routing interface list
network NO. node ID. frame type tick
-------+-------------+---------------+--------------+-----
LAN 0000aaaa ETHERNET_802.2 1
HSD 0000cccc 0000.0000.0000 ETHERNET_802.2 11
IPX filtering:use
Set OK (y/n)? [y]:
：
：省略
：
(Warning): Some configurations are not updated unless you reset
1. Save new parameter(s) and reset 3. Configurations set again
2. Save new parameter(s) only 4. Quit (no save and no reset)
Select the number. : 1
*** Set IPX router configuration ***
<IPX router parameter(s)>
router name:
routing interface list
network NO. node ID. frame type tick
-------+-------------+---------------+--------------+-----
LAN 0000bbbb ETHERNET_802.2 1
HSD 0000cccc 0000.0000.0000 ETHERNET_802.2 11
IPX filtering:use
