設定例
Amazon Virtual Private Cloud (Amazon VPC) とVPN接続する
概要
Amazon Virtual Private Cloud(Amazon VPC)に接続するための設定例です。
補足・注意点
Amazon Virtual Private Cloud(Amazon VPC)では、Amazon Web Services(AWS)Cloud のプライベートで孤立したセクションをプロビジョンすることができます。
詳細はWebで提供されている技術資料をご覧ください。

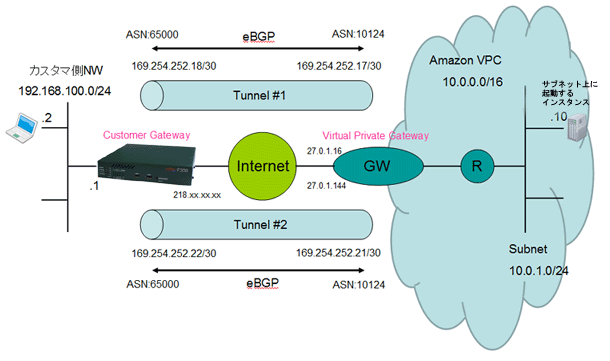

構成図
Amazon VPCの設定

下記の文書にしたがってAmazon VPCを設定します。

http://docs.amazonwebservices.com/AmazonVPC/latest/GettingStartedGuide/


以下、主要な設定画面について説明していきます

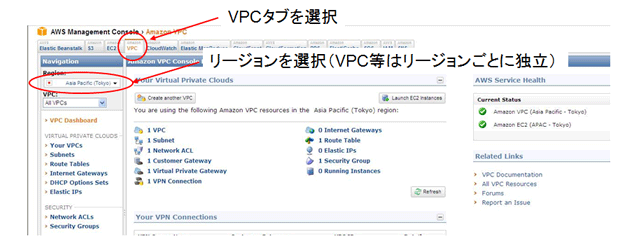

1.VPCタブを選択・リージョンを選択

VPC等はリージョンごとに独立しています。
AWS Management Console上から実行するウィザードで基本的な設定はほとんど行うことができます。

設定画面#1

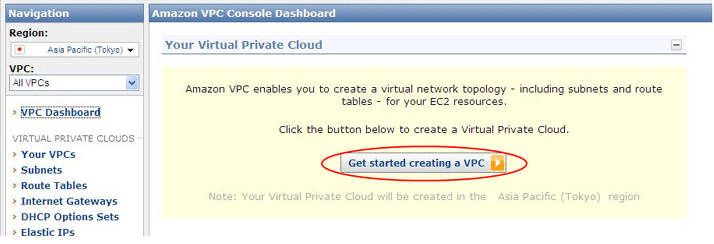

2.「Amazon VPC Console Dashboard」から「Get started creating a VPC」というボタンを押す。

設定画面#2

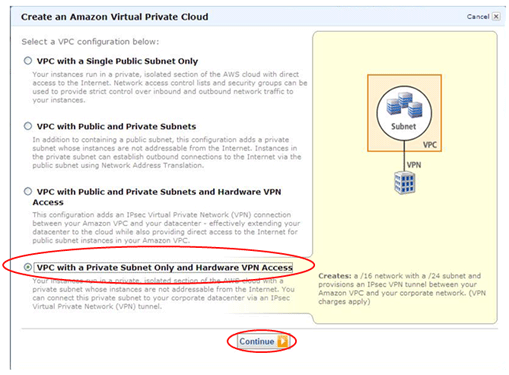

3.ネットワーク構成の選択

「VPC with a Private Subnet Only and Hardware VPN Access」を選び、「Continue」ボタンを押します。

設定画面#3

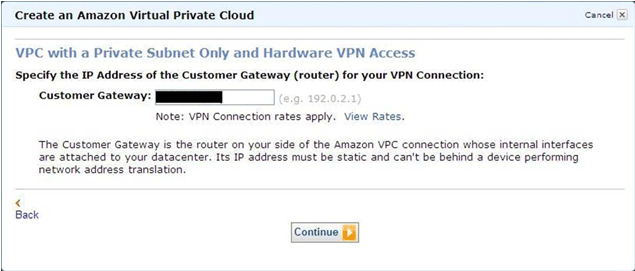

4.ルーターのIPアドレスの設定

VPN接続のためのユーザ側アドレスの入力を求められるので、「Customer Gateway:」にルータのEWAN側IPアドレスを入力し、「Continue」ボタンを押します。

設定画面#4

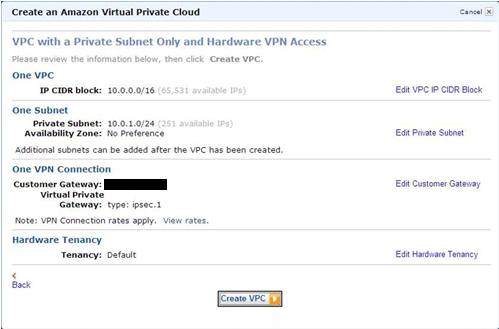

5.設定の確認

VPCとVPN接続の設定確認が表示されるので、問題がなければ「CreateVPC」ボタンを押します。

設定画面#5

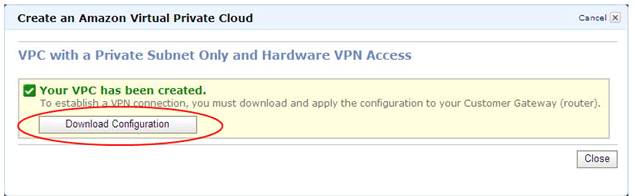

6.VPCの生成

VPCとVPN接続の生成処理が行われ、完了画面が表示されます。
「Download Configuration」ボタンを押して、カスタマー側のルータに適用する設定をダウンロードします。

設定画面#6

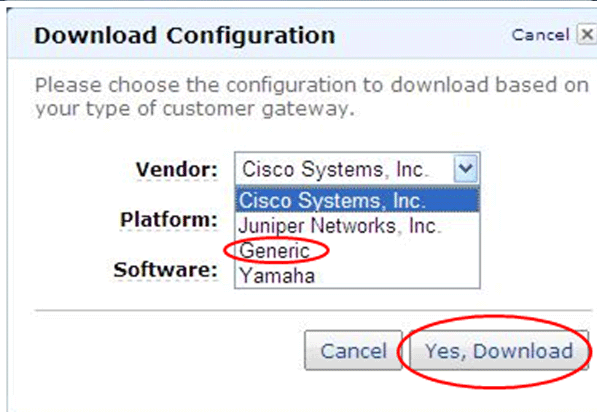

7.設定のダウンロード

VPN接続作成のウィザードの最後に、カスタマー側のルータに適用する設定を「Yes, Download」ボタンを押して、ダウンロードします。
「Vender:」は「Generic」を選択してください。
確認済みメーカー(Cisco/Juniper/Yamaha)用の設定は各社のコンフィグ形式に合わせたものがダウンロードできますが、IKE, IPsec, Tunnel, BGPといった必須となる構成要素の部分だけの設定となりますので、手動での調整が必要です。
Generic用設定がテキスト形式ファイルでダウンロードできるので、作業用PCに保存して内容を確認してください。

注意点
・Pre-Shared Key:IKE SAの事前共有鍵(テキスト形式)
                  Amazon側のVPN接続を作りなおすたびに変更されます。
・ Outside IP Address:SAを張るアドレス
    “ Virtual Private Gateway”がSAのピアとなるAmazon側のアドレス
    “Customer Gateway”はF200のWAN側アドレスが入っています。
・ Inside IP Address:IPsecインターフェイスのアドレス
    “Customer Gateway”がF200のIPsecインターフェイスに設定すべきアドレス

設定画面#7

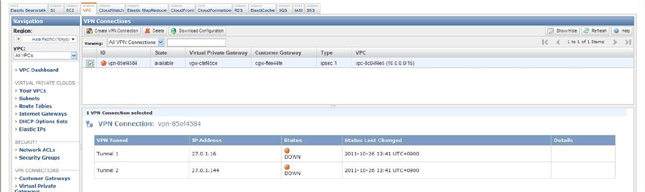

8.Amazon VPC側設定完了確認

VPC設定画面-VPN Connections で確認できます。 ※下記画面は、ルータ側が未設定のためDOWN状態となっています。

設定画面#8
ルータ設定の例
ルータへの設定パラメータはダウンロードしたGeneric用設定の内容を適用する必要があります。
IPsec設定 〜Phase1〜
認証方式:Pre-Shared Key
事前共有鍵の形式:プレインテキスト
認証アルゴリズム:SHA-1
暗号化アルゴリズム:AES-128-CBC
ネゴシエーションモード:Main
DH group:Group 2
ライフタイム:28800 sec
Pre-Shared Key:Amazon側のVPN接続を作りなおすたびに変更されます。
VPNピア IPアドレス:Virtual Private Gatewayを指定します。
crypto isakmp policy 1
 authentication prekey
 encryption aes 128
 group 2
 hash sha
 key ascii ********************************
 lifetime 28800
 negotiation-mode main
 peer-identity address 27.0.1.16
exit
crypto isakmp policy 2
 authentication prekey
 encryption aes 128
 group 2
 hash sha
 key ascii ################################
 lifetime 28800
 negotiation-mode main
 peer-identity address 27.0.1.144
exit
IPsec設定 〜VPNセレクタ・Phase2・IPsecif〜
認証方式:Pre-Shared Key
事前共有鍵の形式:プレインテキスト
認証アルゴリズム:SHA-1
暗号化アルゴリズム:AES-128-CBC
ネゴシエーションモード:Main
DH group:Group 2
ライフタイム:28800 sec
IPsecインターフェイスのアドレス:Inside IP AddressのCustomer Gatewayを指定します。

(以下、推奨設定)
・DPDを有効にする
    Interval:10 sec
    リトライ回数:3
・その他
    TCP MSS Adjustment:1396 bytes
    DFビット消去:有効
    フラグメント:暗号化の前(pre-fragment)
ipsec access-list 1 ipsec ip any any
ipsec access-list 2 ipsec ip any any
ipsec access-list 64 bypass ip any any
ipsec transform-set AES128-SHA esp-aes-128 esp-sha-hmac

crypto map MAP1 1
 match address 1
 set peer address 27.0.1.16
 set security-association lifetime seconds 3600
 set security-association always-up
 set transform-set AES128-SHA
exit
crypto map MAP2 2
 match address 2
 set peer address 27.0.1.144
 set security-association lifetime seconds 3600
 set security-association always-up
 set transform-set AES128-SHA
exit
crypto security-association
 ikealive retry max 3
 ikealive retry timer 10
 ikealive freq 10
exit

interface ipsecif 1
 crypto map MAP1
 ip address 169.254.252.18 255.255.255.252
 ip mtu 1390
exit
interface ipsecif 2
 crypto map MAP2
 ip address 169.254.252.22 255.255.255.252
 ip mtu 1390
exit
BGP設定
・カスタマー側ネットワークとVPC側ネットワークの経路交換に使用されます。
・トンネル内で、トンネルの内側のIPアドレスを用いてピアを張ります。
・一方のトンネルが障害等によりダウンすると、もう一方のトンネルに経路が切り替わります。

設定パラメータ(Generic設定ファイルより)
  カスタマーゲートウェイのASN:65000
  仮想プライベートゲートウェイのASN:10124
  ネイバーのIPアドレス:169.254.252.17, 169.254.252.21
  ネイバーのHold Time:30 sec
  default-originate でデフォルト経路広告
  soft-reconfiguration inbound

BGP設定
interface loopback 1		# ループバックのアドレスはBGPのrouter-idとして使用する
 ip address 192.168.100.254
exit

router bgp 65000
 bgp router-id 192.168.100.254		# Loopback1に設定したアドレスに設定
 neighbor 169.254.252.17 activate enable
 neighbor 169.254.252.17 default-originate
 neighbor 169.254.252.17 ebgp-multihop
 neighbor 169.254.252.17 remote-as 10124
 neighbor 169.254.252.17 soft-reconfiguration inbound
 neighbor 169.254.252.17 timers 10 30
 neighbor 169.254.252.21 activate enable
 neighbor 169.254.252.21 default-originate
 neighbor 169.254.252.21 ebgp-multihop
 neighbor 169.254.252.21 remote-as 10124
 neighbor 169.254.252.21 soft-reconfiguration inbound
 neighbor 169.254.252.21 timers 10 30
 network 192.168.100.0 255.255.255.0
exit

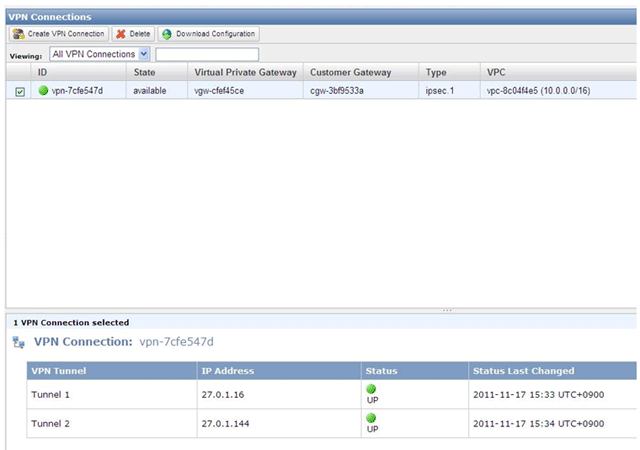

9.Amazon VPCへのVPN接続確立

VPN接続が確立するとStatusがUPの状態になります。

VPN接続確立

10.ルーティング情報確認

IPsec SAが確立しBGPセッションも確立すると、自分のVPCへの経路がBGPで広告されます。
NexthopはIPsecトンネルのAmazon側端点となります。

CGW-F200#show ip route
Max entry: 10000 (Commonness in IPv4 and IPv6)
Active entry:7 (IPv4), 2 (IPv6)  Peak:7

Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF
       B - BGP, I - IKE, U - SA-UP, D - REDUNDANCY, E - EventAction
       A - AutoConfig, > - selected route, * - FIB route, p - stale info.

B> * 10.0.0.0/16 [20/0] via 169.254.252.17, IPSECIF1, 00:11:56
S> * 27.0.1.16/32 [1/0] via 218.xx.xx.xx, EWAN1
S> * 27.0.1.144/32 [1/0] via 218.xx.xx.xx, EWAN1
C> * 127.0.0.0/8 is directly connected, LOOP0
C> * 169.254.252.16/30 is directly connected, IPSECIF1
C> * 169.254.252.20/30 is directly connected, IPSECIF2

10.疎通確認

ルータ配下のPCより、Amazon VPCのインスタンスへのPINGによる疎通確認をおこないます。
インスタンスの起動の仕方については、Amazon VPCの技術情報を参照してください。 PING疎通確認先はインスタンスが持つアドレス(プライベートアドレス)となります。

C:\Users\st>ping 10.0.1.10

10.0.1.10 に ping を送信しています 32 バイトのデータ:
10.0.1.10 からの応答: バイト数 =32 時間 =12ms TTL=61
10.0.1.10 からの応答: バイト数 =32 時間 =9ms TTL=61
10.0.1.10 からの応答: バイト数 =32 時間 =9ms TTL=61
10.0.1.10 からの応答: バイト数 =32 時間 =11ms TTL=61

10.0.1.10 の ping 統計:
    パケット数: 送信 = 4、受信 = 4、損失 = 0 (0% の損失)、
ラウンド トリップの概算時間 (ミリ秒):
    最小 = 9ms、最大 = 12ms、平均 = 10ms

11.トンネル冗長 切り替わりの確認

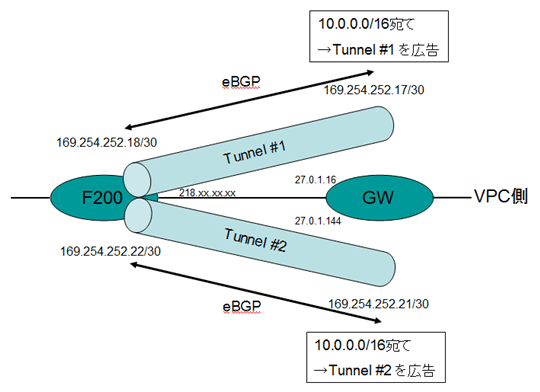

11-1.正常時

トンネル冗長の切り替わり

正常時(トンネル2本up)の経路情報

CGW-F200#show ip route
Max entry: 10000 (Commonness in IPv4 and IPv6)
Active entry:7 (IPv4), 2 (IPv6)  Peak:7

Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF
       B - BGP, I - IKE, U - SA-UP, D - REDUNDANCY, E - EventAction
       A - AutoConfig, > - selected route, * - FIB route, p - stale info.

B> * 10.0.0.0/16 [20/0] via 169.254.252.17, IPSECIF1, 00:02:36  ←VPC宛ての経路がTunnel#1を向いています。
S> * 27.0.1.16/32 [1/0] via 218.xx.xx.xx, EWAN1
S> * 27.0.1.144/32 [1/0] via 218.xx.xx.xx, EWAN1
C> * 127.0.0.0/8 is directly connected, LOOP0
C> * 169.254.252.16/30 is directly connected, IPSECIF1
C> * 169.254.252.20/30 is directly connected, IPSECIF2
C> * 192.168.100.0/24 is directly connected, LAN

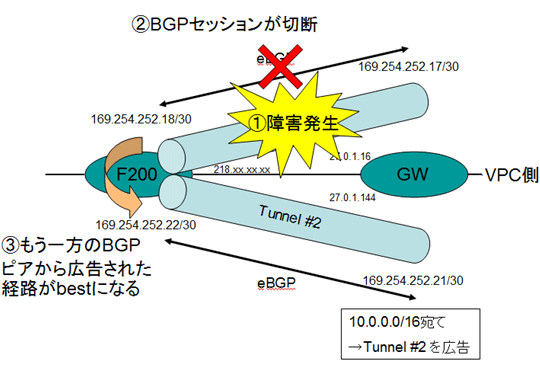

11-2.Tunnel#1 障害発生時

discard crypto isakmp idコマンドを実行して、Amazon VPCへの経路に使用されているIPsecトンネル(Tunnel#1)を強制的にdownさせます。

トンネル冗長の切り替わり

Tunnel#1 down後のBGPネイバ状態

Router#show ip bgp summary
BGP router identifier 192.168.100.254, local AS number 10124
  BGP AS-PATH entries
  BGP community entries


Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
169.254.252.17  4 10124      25      33        0    0    0 00:00:23 Active  ←Tunnel#1側のBGPがdownします。
169.254.252.21  4 10124      34      36        0    0    0 00:04:37        1

Tunnel#1 down後の経路情報

CGW-F200#show ip route
Max entry: 10000 (Commonness in IPv4 and IPv6)
Active entry:6 (IPv4), 2 (IPv6)  Peak:7

Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF
       B - BGP, I - IKE, U - SA-UP, D - REDUNDANCY, E - EventAction
       A - AutoConfig, > - selected route, * - FIB route, p - stale info.

B> * 10.0.0.0/16 [20/0] via 169.254.252.21, IPSECIF2, 00:00:54 ←VPC宛ての経路がTunnel#2に切り替わります。
S> * 27.0.1.16/32 [1/0] via 218.xx.xx.xx, EWAN1
S> * 27.0.1.144/32 [1/0] via 218.xx.xx.xx, EWAN1
C> * 127.0.0.0/8 is directly connected, LOOP0
C> * 169.254.252.20/30 is directly connected, IPSECIF2
C> * 192.168.100.0/24 is directly connected, LAN

11-3.Tunnel#1 復旧

no discard crypto isakmpコマンドを実行して、Amazon VPCへの経路に使用されているIPsecトンネル(Tunnel#1)を復旧させます。

Tunnel#1 復旧後のBGPネイバ状態

Router#show ip bgp summary
BGP router identifier 192.168.100.254, local AS number 10124
  BGP AS-PATH entries
  BGP community entries

 Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
169.254.252.17  4 10124      36      45        0    0    0 00:00:57        1 ←Tunnel#1側のBGPがUPします。
169.254.252.21  4 10124      46      48        0    0    0 00:06:29        1

Tunnel#1 復旧後の経路情報

CGW-F200#show ip route
Max entry: 10000 (Commonness in IPv4 and IPv6)
Active entry:7 (IPv4), 2 (IPv6)  Peak:7

Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF
       B - BGP, I - IKE, U - SA-UP, D - REDUNDANCY, E - EventAction
       A - AutoConfig, > - selected route, * - FIB route, p - stale info.

B> * 10.0.0.0/16 [20/0] via 169.254.252.21, IPSECIF2, 00:02:45←VPC宛ての経路はTunnel#2向きのまま
S> * 27.0.1.16/32 [1/0] via 218.xx.xx.xx, EWAN1
S> * 27.0.1.144/32 [1/0] via 218.xx.xx.xx, EWAN1
C> * 127.0.0.0/8 is directly connected, LOOP0
C> * 169.254.252.16/30 is directly connected, IPSECIF1
C> * 169.254.252.20/30 is directly connected, IPSECIF2
C> * 192.168.100.0/24 is directly connected, LAN

11-4.Tunnel#2 障害発生時

discard crypto isakmpコマンドを実行して、Amazon VPCへの経路に使用されているIPsecトンネル(Tunnel#2)を強制的にdownさせます。

Tunnel#2 down後のBGPネイバ状態

Router#show ip bgp summary
BGP router identifier 192.168.100.254, local AS number 10124
  BGP AS-PATH entries
  BGP community entries

Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
169.254.252.17  4 10124      76      85        0    0    0 00:07:16        1
169.254.252.21  4 10124      80      85        0    0    0 00:00:18 Active ←Tunnel#2側のBGPがdownします。

Tunnel#2 down後の経路情報

CGW-F200#show ip route
Max entry: 10000 (Commonness in IPv4 and IPv6)
Active entry:6 (IPv4), 2 (IPv6)  Peak:7

Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF
       B - BGP, I - IKE, U - SA-UP, D - REDUNDANCY, E - EventAction
       A - AutoConfig, > - selected route, * - FIB route, p - stale info.

B> * 10.0.0.0/16 [20/0] via 169.254.252.17, IPSECIF1, 00:00:35 ←VPC宛ての経路がTunnel#1に切り替わります。
S> * 27.0.1.16/32 [1/0] via 218.xx.xx.xx, EWAN1
S> * 27.0.1.144/32 [1/0] via 218.xx.xx.xx, EWAN1
C> * 127.0.0.0/8 is directly connected, LOOP0
C> * 169.254.252.16/30 is directly connected, IPSECIF1
C> * 192.168.100.0/24 is directly connected, LAN

11-5.Tunnel#2 復旧

no discard crypto isakmpコマンドを実行して、Amazon VPCへの経路に使用されているIPsecトンネル(Tunnel#2)を復旧させます。

Tunnel#2 復旧後のBGPネイバ状態

Router#show ip bgp summary
BGP router identifier 192.168.100.254, local AS number 10124
  BGP AS-PATH entries
  BGP community entries

Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
169.254.252.17  4 10124      88      97        0    0    0 00:09:08        1
169.254.252.21  4 10124      90      95        0    0    0 00:00:48        1 ←Tunnel#2側のBGPがupします。

Tunnel#2 復旧後の経路情報

CGW-F200#show ip route
Max entry: 10000 (Commonness in IPv4 and IPv6)
Active entry:7 (IPv4), 2 (IPv6)  Peak:7

Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF
       B - BGP, I - IKE, U - SA-UP, D - REDUNDANCY, E - EventAction
       A - AutoConfig, > - selected route, * - FIB route, p - stale info.

B> * 10.0.0.0/16 [20/0] via 169.254.252.17, IPSECIF1, 00:02:29 ←VPC宛ての経路はTunnel#1向きのまま
S> * 27.0.1.16/32 [1/0] via 218.xx.xx.xx, EWAN1
S> * 27.0.1.144/32 [1/0] via 218.xx.xx.xx, EWAN1
C> * 127.0.0.0/8 is directly connected, LOOP0
C> * 169.254.252.16/30 is directly connected, IPSECIF1
C> * 169.254.252.20/30 is directly connected, IPSECIF2
C> * 192.168.100.0/24 is directly connected, LAN

ページトップへ

All Rights Reserved, Copyright(C) FURUKAWA ELECTRIC CO., LTD. 2013
