設定例
AWS Direct Connectを使用して複数のAmazon VPCと直接接続する
概要
AWS Direct Connectを利用した専用線接続で、複数のAmazon VPCへの接続を行うための設定例です。
(AWS Direct Connectの「プライベート接続」を使用します)

【補足・注意点】
AWS Direct Connectの詳細、利用方法につきましては、http://aws.amazon.com/jp/directconnect/をご覧ください。

APNパートナーを利用して接続する場合は、ポート占有型のプランの利用が必要となります。

構成図
【Direct Connectの論理接続】
論理接続
【FITEL装置の設定に必要な情報】
  • VLAN番号(Direct ConnectではタグVLANを使用します)
  • Direct Connectの社内ネットワーク側IPアドレス
  • Direct ConnectのAmazon側IPアドレス
  • BGP AS番号(プライベート接続なのでプライベートAS番号を使用します)
  • BGP MD5パスワード

  • ※APNパートナー事業者から上記パラメータが指定されている場合はそれに従って設定してください。

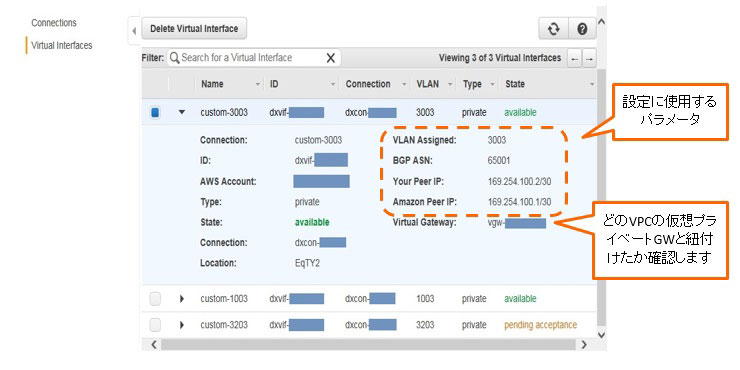

    設定に使用するパラメータについては、AWSコンソールの"Direct Connect"→"Virtual Interface"にて確認可能です。(MD5パスワード除く)

    <表示例>
    表示例
    設定例では以下のパラメータで設定を行います。
    (1)VPC1と接続するVirtual Interface
  • VLAN番号:3003
  • Direct Connectの社内ネットワーク側IPアドレス:169.254.100.2
  • Direct ConnectのAmazon側IPアドレス:169.254.100.1
  • BGP AS番号:65001
  • BGP MD5パスワード:XXXXXX

  • (2)VPC2と接続するVirtual Interface
  • VLAN番号:3004
  • Direct Connectの社内ネットワーク側IPアドレス:169.254.100.6
  • Direct ConnectのAmazon側IPアドレス:169.254.100.5
  • BGP AS番号:65001
  • BGP MD5パスワード:YYYYYY

  • ルータ設定例
    (!の行はコメントです。実際に入力する必要はありません。)
    この設定を利用したい方は
    !
    !
    ! 特権ユーザモードに移行します。
    !
    Router> enable
    Enter password: super ←パスワードを入力します(実際は何も表示されません)。

    Router#
    !
    !
    ! 基本設定モードに移行します。
    !
    Router# configure terminal
    Router(config)#
    !
    !
    ! ホスト名を設定します。
    !
    Router(config)# hostname Router-DX
    !
    !
    ! LAN1インタフェースの設定を行います。
    !
    Router-DX(config)# interface lan 1
    Router-DX(config-if lan 1)# description To-On-Premises
    Router-DX(config-if lan 1)# ip address 192.168.10.200 255.255.255.0
    Router-DX(config-if lan 1)# exit
    !
    !
    ! VLANIF1インタフェース(VPC1と接続)の設定を行います。
    ! (物理ポートEWAN1をVLANIF1に割り当て)
    !
    Router-DX(config)# interface vlanif 1
    Router-DX(config-if vlanif 1)# description To-DX_VPC1
    Router-DX(config-if vlanif 1)# bridge-group ewan 1
    Router-DX(config-if vlanif 1)# vlan-id 3003
    !    "VLAN Assigned:"で指定されたVLAN-ID
    Router-DX(config-if vlanif 1)# ip address 169.254.100.2 255.255.255.252
    !    "Your Peer IP:"で指定されたIPアドレス
    Router-DX(config-if vlanif 1)# exit
    !
    !
    ! VLANIF2インタフェース(VPC2と接続)の設定を行います。
    ! (物理ポートEWAN1をVLANIF2に割り当て)
    !
    Router-DX(config)# interface vlanif 2
    Router-DX(config-if vlanif 2)# description To-DX_VPC2
    Router-DX(config-if vlanif 2)# bridge-group ewan 1
    Router-DX(config-if vlanif 2)# vlan-id 3004
    !    "VLAN Assigned:"で指定されたVLAN-ID
    Router-DX(config-if vlanif 2)# ip address 169.254.100.6 255.255.255.252
    !    "Your Peer IP:"で指定されたIPアドレス
    Router-DX(config-if vlanif 2)# exit

    !
    !
    ! BGPの設定を行います。
    !
    Router-DX(config)# router bgp 65001
    !    "BGP ASN:"で指定されたAS番号
    Router-DX(config-bgp)# bgp log-neighbor-changes
    Router-DX(config-bgp)# neighbor 169.254.100.1 remote-as 10124
    !    VPC1と接続するVirtualInterfaceのネイバ設定
    !    "Amazon Peer IP:"で指定されたIPアドレス
    Router-DX(config-bgp)# neighbor 169.254.100.1 password XXXXXX
    !    指定されたBGP MD5パスワード(VPC1と接続するVirtual Interfaceのパラメタ)
    Router-DX(config-bgp)# neighbor 169.254.100.5 remote-as 10124
    !    VPC2と接続するVirtualInterfaceのネイバ設定
    !    "Amazon Peer IP:"で指定されたIPアドレス
    Router-DX(config-bgp)# neighbor 169.254.100.5 password YYYYYY
    !    指定されたBGP MD5パスワード(VPC2と接続するVirtual Interfaceのパラメタ)
    Router-DX(config-bgp)# network 192.168.10.0 255.255.255.0
    !    AWS側に広告する社内ネットワーク側の経路情報を指定
    Router-DX(config-bgp)# exit
    !
    !
    ! 特権ユーザモードに戻ります。
    !
    Router-DX(config)# end
    !
    !
    ! 設定を保存します。
    !
    Router-DX# save SIDE-A.cfg
    % saving working-config
    % finished saving

    Router-DX#
    !
    !
    ! 設定を有効にするために再起動します。
    !
    Router-DX# reset
    Are you OK to cold start?(y/n) y

    動作状況の確認

    AWS側とのBGPセッションが確立できたことを確認します。

    確認内容 画面表示例
    BGPネイバの情報を表示


    "BGP state = Established"となっていることを確認します。
    (VPC1との接続のネイバ)
    Router-DX#show ip bgp neighbors
    BGP neighbor is 169.254.100.1, remote AS 10124, local AS 65001, external link
      BGP version 4, remote router ID 169.254.100.1
      BGP state = Established, up for 00:00:08
      Last read 00:00:08, hold time is 90, keepalive interval is 30 seconds
      Neighbor capabilities:
        Route refresh: advertised and received (old and new)
        Address family IPv4 Unicast: advertised and received
      Received 98 messages, 0 notifications, 0 in queue
      Sent 95 messages, 1 notifications, 0 in queue
      Route refresh request: received 0, sent 0
      Minimum time between advertisement runs is 30 seconds
     For address family: IPv4 Unicast
      Index 1, Offset 0, Mask 0x2
      Community attribute sent to this neighbor (both)
      1 accepted prefixes
      1 announced prefixes
     Connections established 2; dropped 1
    Local host: 169.254.100.2, Local port: 64633
    Foreign host: 169.254.100.1, Foreign port: 179
    Nexthop: 169.254.100.2
    Nexthop global: ::
    Nexthop local: ::
    BGP connection: non shared network
    Read thread: on  Write thread: off



    "BGP state = Established"となっていることを確認します。
    (VPC2との接続のネイバ)
    BGP neighbor is 169.254.100.5, remote AS 10124, local AS 65001, external link
      BGP version 4, remote router ID 169.254.100.5
      BGP state = Established, up for 00:14:11
      Last read 00:00:00, hold time is 90, keepalive interval is 30 seconds
      Neighbor capabilities:
        Route refresh: advertised and received (old and new)
        Address family IPv4 Unicast: advertised and received
      Received 33 messages, 0 notifications, 0 in queue
      Sent 33 messages, 0 notifications, 0 in queue
      Route refresh request: received 0, sent 0
      Minimum time between advertisement runs is 30 seconds
     For address family: IPv4 Unicast
      Index 2, Offset 0, Mask 0x4
      Community attribute sent to this neighbor (both)
      1 accepted prefixes
      2 announced prefixes
     Connections established 1; dropped 0
    Local host: 169.254.100.6, Local port: 65526
    Foreign host: 169.254.100.5, Foreign port: 179
    Nexthop: 169.254.100.6
    Nexthop global: ::
    Nexthop local: ::
    BGP connection: non shared network
    Read thread: on  Write thread: off

    VPCの経路を受信していることを確認します。

    確認内容 画面表示例
    BGP受信経路の情報を表示



    AWS側からVPC1の経路(172.16.0.0/16)を受信していることを確認します。
    Router-DX#show ip bgp neighbors 169.254.100.1 routes
    BGP table version is 0, local router ID is 192.168.10.200
    Status codes: s suppressed, d damped, h history, p stale, * valid, > best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete
       Network            Next Hop            Metric     LocPrf     Weight Path
    *> 172.16.0.0         169.254.100.1                                  0 10124 i
    Total number of prefixes 1





    AWS側からVPC2の経路(172.17.0.0/16)を受信していることを確認します。
    Router-DX#show ip bgp neighbors 169.254.100.5 routes
    BGP table version is 0, local router ID is 192.168.10.200
    Status codes: s suppressed, d damped, h history, p stale, * valid, > best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete
       Network            Next Hop            Metric     LocPrf     Weight Path
    *> 172.17.0.0         169.254.100.5                                  0 10124 i
    Total number of prefixes 1

    社内ネットワーク側の経路を送信していることを確認します。

    確認内容 画面表示例
    BGP送信経路の情報を表示




    社内ネットワーク側の経路(192.168.10.0/24)をVPC1側のネイバへ送信していることを確認します。
    ※172.17.0.0/16 の経路は対向側で自分のAS番号と同じAS_PATH属性となるため廃棄されます。
    Router-DX#show ip bgp neighbors 169.254.100.1 advertised-routes
    BGP table version is 0, local router ID is 192.168.10.200
    Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete
       Network            Next Hop            Metric     LocPrf     Weight Path
    *> 172.17.0.0         169.254.100.2                                  0 10124 i
    *> 192.168.10.0       169.254.100.2                              32768 i
    Total number of prefixes 1






    社内ネットワーク側の経路(192.168.10.0/24)をVPC2側のネイバへ送信していることを確認します。
    ※172.16.0.0/16 の経路は対向側で自分のAS番号と同じAS_PATH属性となるため廃棄されます。
    Router-DX#show ip bgp neighbors 169.254.100.5 advertised-routes
    BGP table version is 0, local router ID is 192.168.10.200
    Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete
       Network            Next Hop            Metric     LocPrf     Weight Path
    *> 172.16.0.0         169.254.100.6                                  0 10124 i
    *> 192.168.10.0       169.254.100.6                              32768 i
    Total number of prefixes 2
