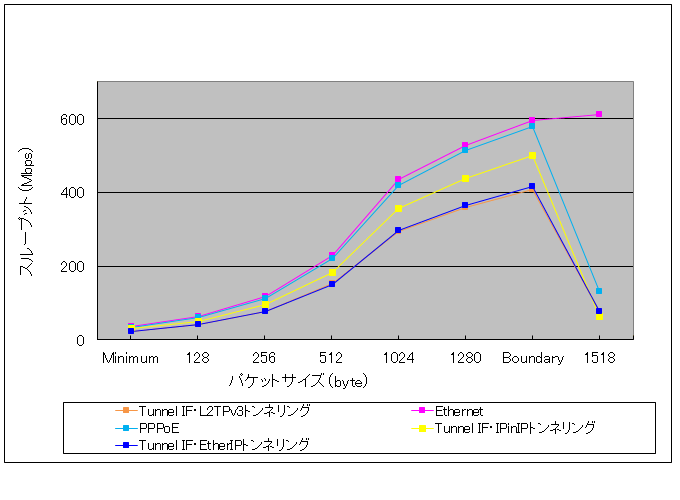

minmum | 128 | 256 | 512 | 1024 | 1280 | Boundary | 1518 | |
---|---|---|---|---|---|---|---|---|
Ethernet | 36.0 | 64.1 | 118.8 | 229.9 | 435.5 | 528.7 | 595.5 | 611.3 |
PPPoE | 34.4 | 61.0 | 112.5 | 219.3 | 418.0 | 512.9 | 579.7 | 131.3 |
Tunnel IF IPinIP | 29.3 | 50.8 | 95.7 | 183.5 | 357.1 | 439.1 | 499.6 | 64.4 |

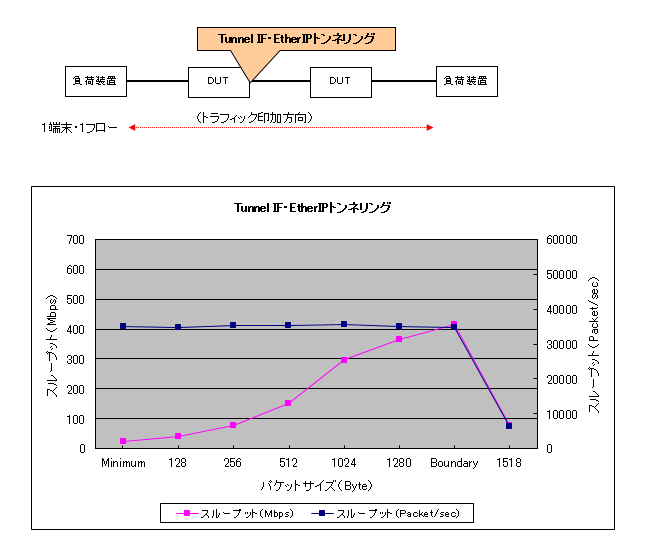

Tunnel IF EtherIP | 23.5 | 41.0 | 78.1 | 150.3 | 296.6 | 364.9 | 415.6 | 78.1 |

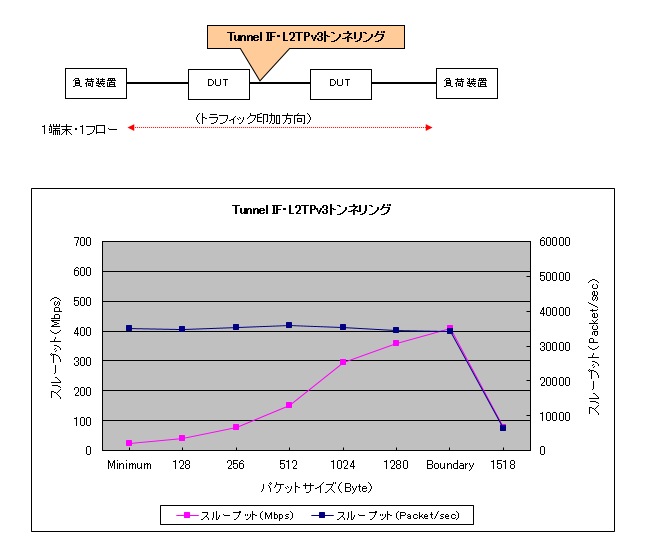

Tunnel IF L2TPv3 | 23.5 | 41.0 | 78.1 | 152.2 | 294.7 | 359.1 | 407.8 | 78.1 |
※PPPoE、L2TPv3以外 Minimum:64、Boundary:1472
※PPPoE Minimum:66、Boundary:1472
※L2TPv3 Minimum:64、Boundary:1468

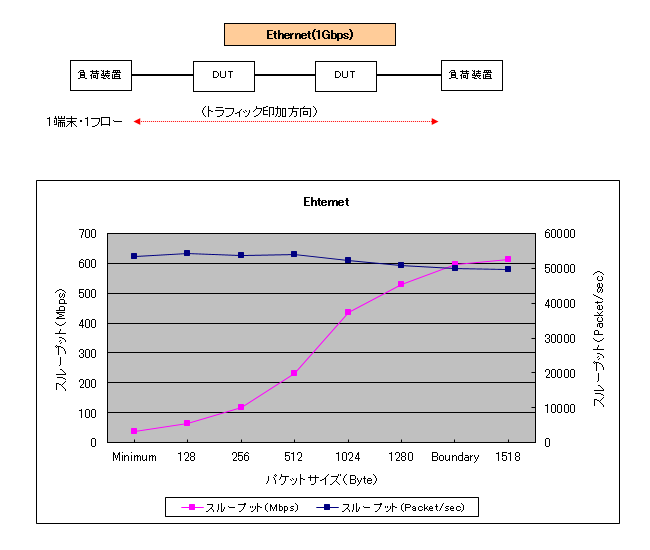

minmum | 128 | 256 | 512 | 1024 | 1280 | Boundary | 1518 | |
---|---|---|---|---|---|---|---|---|
Mbps | 36.0 | 64.1 | 118.8 | 229.9 | 435.5 | 528.7 | 595.5 | 611.3 |
Packet/sec | 53502.8 | 54118.4 | 53785.4 | 54014.0 | 52149.0 | 50837.6 | 49891.8 | 49685.4 |
※Minimum:64、Boundary:1472

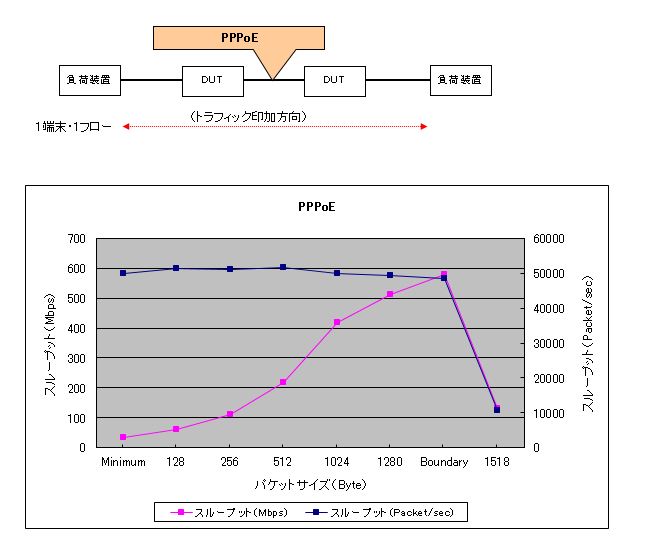

minmum | 128 | 256 | 512 | 1024 | 1280 | Boundary | 1518 | |
---|---|---|---|---|---|---|---|---|
Mbps | 34.4 | 61.0 | 112.5 | 219.3 | 418.0 | 512.9 | 579.7 | 131.3 |
Packet/sec | 49987.8 | 51479.4 | 50955.2 | 51535.8 | 50044.2 | 49316.6 | 48566.4 | 10668.0 |
※Minimum:66、Boundary:1472

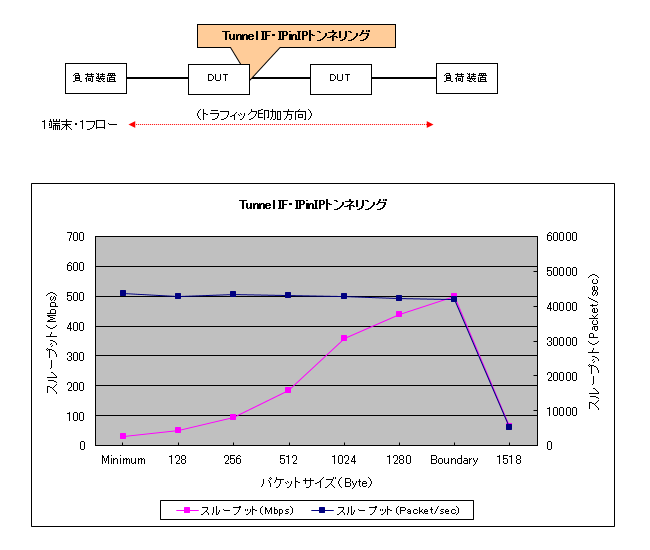

minmum | 128 | 256 | 512 | 1024 | 1280 | Boundary | 1518 | |
---|---|---|---|---|---|---|---|---|
Mbps | 29.3 | 50.8 | 95.7 | 183.5 | 357.1 | 439.1 | 499.6 | 64.4 |
Packet/sec | 43625.6 | 42888.0 | 43322.6 | 43106.0 | 42758.0 | 42217.6 | 41852.4 | 5237.2 |
※Minimum:64、Boundary:1472
