interface ewan 1 ip mtu 1500 ip address 100.0.0.10 255.255.255.0 ip nat inside source static-subnet 192.168.0.16 100.0.0.128 255.255.255.240 exit interface lan 1 ip address 192.168.0.1 255.255.255.0 exit service dhcp-server ip dhcp pool lan 1 default-router 192.168.0.1 exit end
設定内容 | 画面表示例 |
---|---|
特権ユーザモードへの移行 パスワードの入力 設定情報の初期化 設定モードの変更 設定入力 設定保存 装置再起動 |
Router>enable Enter password: Router# Router#clear working.cfg Router# Router#configure terminal Router(config)#interface ewan 1 Router(config-if ewan 1)# ip mtu 1500 Router(config-if ewan 1)# ip address 100.0.0.10 255.255.255.0 Router(config-if ewan 1)#@ubnet 192.168.0.16 100.0.0.128 255.255.255.240 Router(config-if ewan 1)#exit Router(config)#interface lan 1 Router(config-if lan 1)# ip address 192.168.0.1 255.255.255.0 Router(config-if lan 1)#exit Router(config)#service dhcp-server Router(config)#ip dhcp pool lan 1 Router(config-dhcp-pool)# default-router 192.168.0.1 Router(config-dhcp-pool)#exit Router(config)# Router(config)#end Router# Router#save SIDE-A % saving working-config % finished saving Router#reset Going to reset with SIDE-A.frm and SIDE-A.cfg. Boot-back not scheduled for next boot. Next rebooting firmware SIDE-A.frm is fine. Are you OK to cold start?(y/n)y |

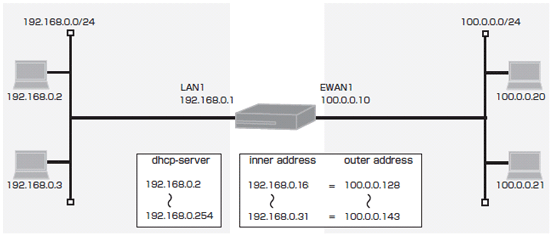

プライベートネットワーク192.168.0.16〜192.168.0.31 からグローバルネットワーク100.0.0.128〜100.0.0.143に変換した場合のNATテーブルを確認します。
確認内容 | 画面表示例 |
---|---|
NAT テーブル情報を表示 Max セッション数 予約NAT テーブル数 セッション数、ピーク数 IP アドレス等の確認 |
Router#show ip nat translation Session summary (equipment total): Max sessions: 2048 Reserved sessions: 0 Active sessions: 16 Peak: 16 List of active sessions: EWAN1 Local(address port) Global(address port) Remote(address port) prot tm(s) -------------------+--------------------+--------------------+----+------ 192.168.0.31 1024 100.0.0.143 1024 100.0.0.20 1024 udp 597 192.168.0.30 1024 100.0.0.142 1024 100.0.0.20 1024 udp 597 192.168.0.29 1024 100.0.0.141 1024 100.0.0.20 1024 udp 596 192.168.0.28 1024 100.0.0.140 1024 100.0.0.20 1024 udp 596 192.168.0.27 1024 100.0.0.139 1024 100.0.0.20 1024 udp 600 192.168.0.26 1024 100.0.0.138 1024 100.0.0.20 1024 udp 599 192.168.0.25 1024 100.0.0.137 1024 100.0.0.20 1024 udp 599 192.168.0.24 1024 100.0.0.136 1024 100.0.0.20 1024 udp 599 192.168.0.23 1024 100.0.0.135 1024 100.0.0.20 1024 udp 599 192.168.0.22 1024 100.0.0.134 1024 100.0.0.20 1024 udp 599 192.168.0.21 1024 100.0.0.133 1024 100.0.0.20 1024 udp 598 192.168.0.20 1024 100.0.0.132 1024 100.0.0.20 1024 udp 598 192.168.0.19 1024 100.0.0.131 1024 100.0.0.20 1024 udp 598 192.168.0.18 1024 100.0.0.130 1024 100.0.0.20 1024 udp 598 192.168.0.17 1024 100.0.0.129 1024 100.0.0.20 1024 udp 598 192.168.0.16 1024 100.0.0.128 1024 100.0.0.20 1024 udp 597 |
