異なるエリアのネットワークを接続する設定
F120を除く全機種対応
説明
異なるエリアに所属する2台のルータをEWANで接続した例です。

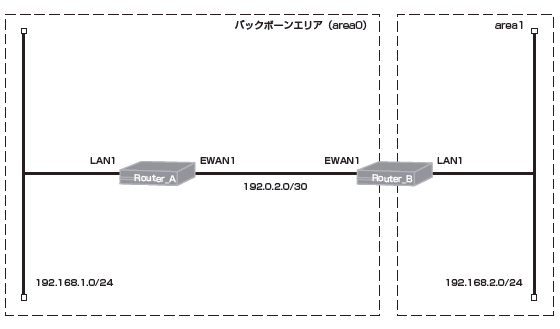

構成
コマンド設定

Router A

hostname Router_A
interface ewan 1
 ip address 192.0.2.1 255.255.255.252
exit
interface lan 1
 ip address 192.168.1.1 255.255.255.0
exit
router ospf
 network 192.0.2.0 0.0.0.3 area 0
 network 192.168.1.0 0.0.0.255 area 0
exit
end

Router B

hostname Router_B
interface ewan 1
 ip address 192.0.2.2 255.255.255.252
exit
interface lan 1
 ip address 192.168.2.1 255.255.255.0
exit
router ospf
 network 192.0.2.0 0.0.0.3 area 0
 network 192.168.2.0 0.0.0.255 area 1
exit
end
設定手順

Router A

設定内容 画面表示例
特権ユーザモードへの移行
パスワードの入力

設定情報の初期化

設定モードの変更
設定入力













設定保存



装置再起動
Router>enable
Enter password:
Router#
Router#clear working.cfg
Router#
Router#configure terminal
Router(config)#hostname Router_A
Router_A(config)#interface ewan 1
Router_A(config-if ewan 1)# ip address 192.0.2.1 255.255.255.252
Router_A(config-if ewan 1)#exit
Router_A(config)#interface lan 1
Router_A(config-if lan 1)# ip address 192.168.1.1 255.255.255.0
Router_A(config-if lan 1)#exit
Router_A(config)#router ospf
Router_A(config-ospf)# network 192.0.2.0 0.0.0.3 area 0
Router_A(config-ospf)# network 192.168.1.0 0.0.0.255 area 0
Router_A(config-ospf)#exit
Router_A(config)#
Router_A(config)#end
Router_A#
Router_A#save SIDE-A
% saving working-config
% finished saving

Router_A#reset
Going to reset with SIDE-A.frm and SIDE-A
Boot-back not scheduled for next boot.
Next rebooting firmware SIDE-A.frm is fine.
Are you OK to cold start?(y/n)y

Router B

設定内容 画面表示例
特権ユーザモードへの移行
パスワードの入力

設定情報の初期化

設定モードの変更
設定入力













設定保存



装置再起動
Router>enable
Enter password:
Router#
Router#clear working.cfg
Router#
Router#configure terminal
Router(config)#hostname Router_B
Router_B(config)#interface ewan 1
Router_B(config-if ewan 1)# ip address 192.0.2.2 255.255.255.252
Router_B(config-if ewan 1)#exit
Router_B(config)#interface lan 1
Router_B(config-if lan 1)# ip address 192.168.2.1 255.255.255.0
Router_B(config-if lan 1)#exit
Router_B(config)#router ospf
Router_B(config-ospf)# network 192.0.2.0 0.0.0.3 area 0
Router_B(config-ospf)# network 192.168.2.0 0.0.0.255 area 1
Router_B(config-ospf)#exit
Router_B(config)#
Router_B(config)#end
Router_B#
Router_B#save SIDE-A
% saving working-config
% finished saving

Router_B#reset
Going to reset with SIDE-A.frm and SIDE-A
Boot-back not scheduled for next boot.
Next rebooting firmware SIDE-A.frm is fine.
Are you OK to cold start?(y/n)y
設定状態の確認 1

1 ネイバー状態を確認します。(Router A)

確認内容 画面表示例
OSPF ネイバー情報を表示


Router_A#show ip ospf neighbor

OSPF process 0:
Neighbor ID  Pri  State        Dead Time  Address    Interface        RXmtL RqstL DBsmL
192.168.2.1  1    Full/DR      00:00:35   192.0.2.2  EWAN1:192.0.2.1  0     0     0

※:Neighbor IDに対向ルータのルータIDが表示され、StateがFullになっていることを確認してください。

2 ネイバー状態を確認します。(Router B)

確認内容 画面表示例
OSPF ネイバー情報を表示


Router_A#show ip ospf neighbor

OSPF process 0:
Neighbor ID  Pri  State        Dead Time  Address    Interface        RXmtL RqstL DBsmL
192.168.1.1  1    Full/Backup  00:00:35   192.0.2.1  EWAN1:192.0.2.2  0     0     0

※:Neighbor IDに対向ルータのルータIDが表示され、StateがFullになっていることを確認してください。

設定状態の確認 2

1 経路情報を確認します。(Router A)

確認内容 画面表示例
ルーティング情報を表示









Router_A#show ip route
Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF
       B - BGP, I - IKE, U - SA-UP, D - REDUNDANCY, E - EventAction
       A - AutoConfig, > - selected route, * - FIB route, p - stale info.

C> * 127.0.0.0/8 is directly connected, LOOP0
O    192.0.2.0/30 [110/1] is directly connected, EWAN1, 00:02:02
C> * 192.0.2.0/30 is directly connected, EWAN1
O    192.168.1.0/24 [110/1] is directly connected, LAN, 00:02:12
C> * 192.168.1.0/24 is directly connected, LAN
O> * 192.168.2.0/24 [110/2] via 192.0.2.2, EWAN1, 00:01:12

※:対向ルータのLAN側のネットワーク(192.168.2.0/24)が表示されていること

2 経路情報を確認します。(Router B)

確認内容 画面表示例
ルーティング情報を表示







Router_A#show ip route
Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF
       B - BGP, I - IKE, U - SA-UP, D - REDUNDANCY, E - EventAction
       A - AutoConfig, > - selected route, * - FIB route, p - stale info.

C> * 127.0.0.0/8 is directly connected, LOOP0
O    192.0.2.0/30 [110/1] is directly connected, EWAN1, 00:01:53
C> * 192.0.2.0/30 is directly connected, EWAN1
O> * 192.168.1.0/24 [110/2] via 192.0.2.1, EWAN1, 00:01:11
O    192.168.2.0/24 [110/1] is directly connected, LAN, 00:01:53
C> * 192.168.2.0/24 is directly connected, LAN

※:対向ルータのLAN側のネットワーク(192.168.1.0/24)が表示されていること

設定状態の確認 3

1 OSPF経路情報を確認します。(Router A)

確認内容 画面表示例
OSPF ルーティング情報を表示


経路情報が正しいことを確認

経路情報が正しいことを確認

経路情報が正しいことを確認


経路情報が正しいことを確認
Router_A#show ip ospf route
OSPF process 0:
============ OSPF network routing table ============
N    192.0.2.0/30         [1] area: 0.0.0.0
                          directly connected, EWAN1
N    192.168.1.0/24       [1] area: 0.0.0.0
                          directly connected, LAN
N    192.168.2.0/24       [2] area: 0.0.0.0
                          via 192.0.2.2, EWAN1
============ OSPF router routing table =============
R    192.168.2.1         [1] area: 0.0.0.0, ABR
                          via 192.0.2.2, EWAN1
============ OSPF external routing table ===========

2 OSPF経路情報を確認します。(Router B)

確認内容 画面表示例
OSPF ルーティング情報を表示


経路情報が正しいことを確認

経路情報が正しいことを確認

経路情報が正しいことを確認
Router_A#show ip ospf route
OSPF process 0:
============ OSPF network routing table ============
N    192.0.2.0/30         [1] area: 0.0.0.0
                          directly connected, EWAN1
N    192.168.1.0/24       [1] area: 0.0.0.0
                          via 192.0.2.1, EWAN1
N    192.168.2.0/24       [2] area: 0.0.0.0
                          directly connected, LAN
============ OSPF router routing table =============

============ OSPF external routing table ===========
設定状態の確認 4

1 OSPFデータベース情報を確認します。(Router A)

確認内容 画面表示例
OSPF データベース情報を表示





情報が正しいことを確認





情報が正しいことを確認




情報が正しいことを確認
Router_A#show ip ospf database

   OSPF Router process 0 with ID (192.168.1.1)

       Router Link States (Area 0.0.0.0)

Link ID        ADV Router   Age  Seq#       CkSum  Link count
192.168.1.1    192.168.1.1   86  0x80000005 0x3d37  2
192.168.2.1    192.168.2.1   88  0x80000002 0xc628  1

       Net Link States (Area 0.0.0.0)

Link ID        ADV Router   Age  Seq#       CkSum
192.0.2.2      192.168.2.1   89  0x80000001 0x4d07

       Summary Link States (Area 0.0.0.0)

Link ID        ADV Router   Age  Seq#       CkSum   Route
192.168.2.0    192.168.2.1  125  0x80000001 0x8df6  192.168.2.0/24

2 OSPFデータベース情報を確認します。(Router B)

確認内容 画面表示例
OSPF データベース情報を表示





情報が正しいことを確認





情報が正しいことを確認




情報が正しいことを確認




情報が正しいことを確認




情報が正しいことを確認
Router_B#show ip ospf database

   OSPF Router process 0 with ID (192.168.2.1)

       Router Link States (Area 0.0.0.0)

Link ID        ADV Router   Age  Seq#        CkSum  Link count
192.168.1.1    192.168.1.1  87   0x80000005  0x3d37 2
192.168.2.1    192.168.2.1  87   0x80000002  0xc628 1

       Net Link States (Area 0.0.0.0)

Link ID        ADV Router   Age  Seq#        CkSum
192.0.2.2      192.168.2.1  88   0x80000001  0x4d07

       Summary Link States (Area 0.0.0.0)

Link ID        ADV Router   Age  Seq#        CkSum  Route
192.168.2.0    192.168.2.1  125  0x80000001  0x8df6 192.168.2.0/24

       Router Link States (Area 0.0.0.1)

Link ID        ADV Router   Age  Seq#        CkSum  Link count
192.168.2.1    192.168.2.1  90   0x80000003  0x8684 1

       Summary Link States (Area 0.0.0.1)

Link ID        ADV Router   Age  Seq#        CkSum  Route
192.0.2.0      192.168.2.1  125  0x80000001  0x63cc 192.0.2.0/30
192.168.1.0    192.168.2.1  83   0x80000001  0xa2e1 192.168.1.0/24
