IPoE設定例

「v6プラス」IPv6/IPv4インターネットサービスを利用する
対象装置：F70/F71/F220/F221/F220 EX/F221 EX

内容

　JPIX社の「v6プラス」IPv6/IPv4インターネットサービスを利用する場合の設定例です。
　「v6プラス」IPv6/IPv4インターネットサービスについては、下記URLをご参照ください。
　http://www.jpne.co.jp/service/v6plus/
　本設定例では、「v6プラス」に対応したMAP-E方式を利用します。
　F220/F221はV01.02よりサポートしています。

　【補足・注意点】

　　本設定例では次の2つの設定を推奨します。下記表の設定例のリンク（pdfファイル）の補足欄をご参照ください。
　　対応バージョンにご注意ください。
　　・ip nat port-sharing enable：F220/F221ではV01.02(00)以降でサポートしています。
　　・ipv6 trust-ra-prefix-lifetime：F70/F71ではV01.02(00)以降、F220/F221ではV01.04(00)以降で、それぞれ
　　　サポートしています。

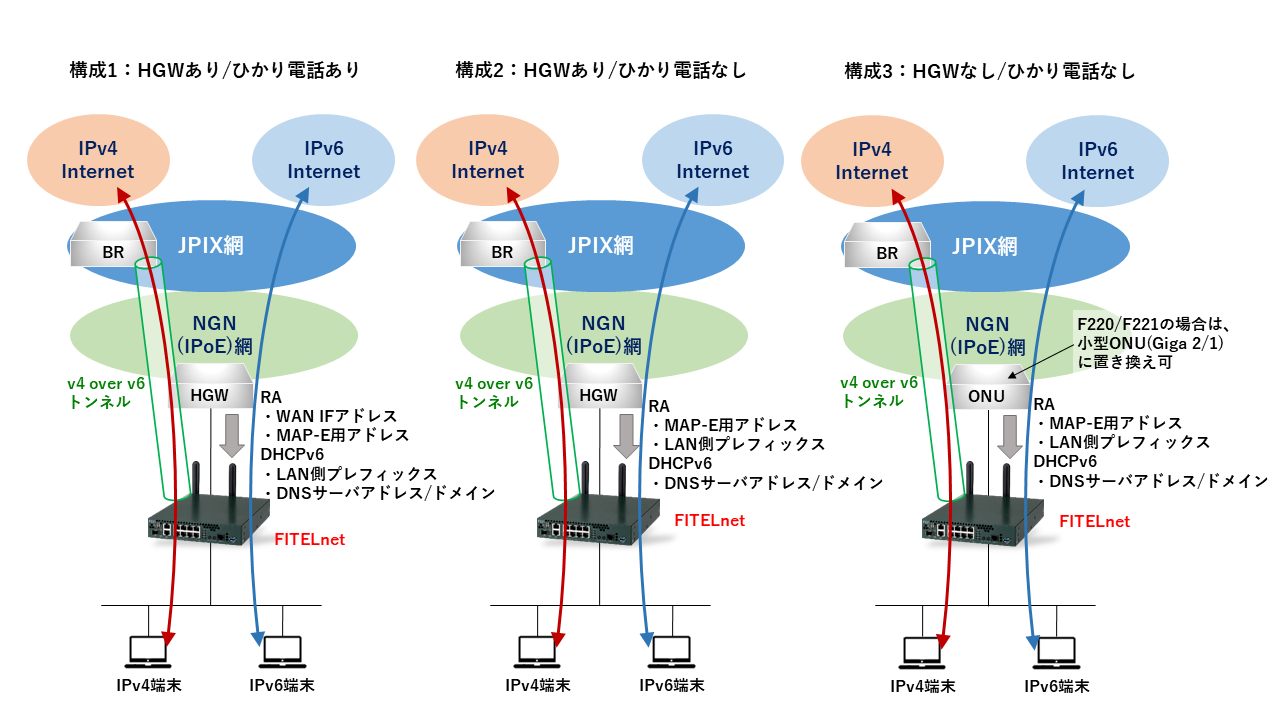

設定例	設定例（txt）	構成
1. HGWあり/ひかり電話あり	この設定のご利用は	構成1
2. HGWあり/ひかり電話なし	この設定のご利用は	構成2
3. HGWなし/ひかり電話なし	この設定のご利用は	構成3

　動的IPサービス（MAP-E）にてVPN/ローカルブレイクアウトを利用する場合の設定例が
　こちらにございます。★NEW

<pre>
access-list 100 permit udp any eq 67 any eq 68
access-list 109 deny ip any any
access-list 110 spi ip any any
access-list 4000 permit icmp6 any any neighbor-advertisement
access-list 4000 permit icmp6 any any neighbor-solicitation
access-list 4000 permit icmp6 any any router-advertisement
access-list 4000 permit udp any any eq 546
access-list 4009 deny ipv6 any any
access-list 4010 spi ipv6 any any
!
ip route 0.0.0.0 0.0.0.0 tunnel 1
ip name-server ::1
!
ip dhcp client-profile DHCPv4_client
 retries infinity
exit
!
ip dhcp server-profile DHCPv4_server
 address 192.168.100.2 192.168.100.254
 lease-time 259200
 dns 192.168.100.1
 gateway 192.168.100.1
exit
!
ip nat list 1 192.168.100.0 0.0.0.255
ip nat wellknown 1 1 65535 off
ip nat port-sharing enable
!
ipv6 dhcp client-profile DHCPv6_client
 option-request prefix-delegation
 option-request dns-server
 option-request dns-server-domain
 retries infinity
exit
!
ipv6 dhcp server-profile DHCPv6_server
 dns port-channel 2
 domain port-channel 2
exit
!
ipinip tunnel-profile MAPCE
 profile-mode map-encap option-a
 map rule-get
 ipinip fragment pre
exit
!
logging buffer level informational
!
hostname FITELnet_MAPCE
!
interface GigaEthernet 1/1
 vlan-id 1
 bridge-group 1
 channel-group 1
exit
!
interface GigaEthernet 2/1
 vlan-id 2
 bridge-group 2
 channel-group 2
 ip access-group 100 in
 ip access-group 109 in
 ip access-group 110 out
 ipv6 access-group 4000 in
 ipv6 access-group 4009 in
 ipv6 access-group 4010 out
exit
!
interface Port-channel 1
 ip dhcp service server
 ip dhcp server-profile DHCPv4_server
 ip address 192.168.100.1 255.255.255.0
 ipv6 enable
 ipv6 address dhcp port-channel 2 ::f:0:0:0:1/64
 ipv6 nd other-config-flag
 ipv6 nd send-ra
 ipv6 trust-ra-prefix-lifetime
 ipv6 dhcp service server
 ipv6 dhcp server-profile DHCPv6_server
 mss 1420
exit
!
interface Port-channel 2
 ip dhcp service client
 ip dhcp client-profile DHCPv4_client
 ipv6 enable
 ipv6 address autoconfig
 ipv6 address autoconfig-map-encap MAPCE
 ipv6 nd receive-ra
 ipv6 router-lifetime-receive-enable
 ipv6 trust-ra-prefix-lifetime
 ipv6 dhcp service client
 ipv6 dhcp client-profile DHCPv6_client
exit
!
interface Tunnel 1
 ip access-group 109 in
 ip access-group 110 out
 ip nat inside source list 1 map-encap overload
 tunnel mode ipinip tunnel-profile MAPCE
exit
!
dns-server ip enable
dns-server ipv6 enable
!
proxydns domain 1 any ntt.setup ::1/128 dhcp-no-skip ipv4 port-channel 2
proxydns domain 2 any * any dhcp ipv6 port-channel 2
proxydns address 1 any dhcp ipv6 port-channel 2
!
end
</pre>

<pre>
access-list 100 permit udp any eq 67 any eq 68
access-list 109 deny ip any any
access-list 110 spi ip any any
access-list 4000 permit icmp6 any any neighbor-advertisement
access-list 4000 permit icmp6 any any neighbor-solicitation
access-list 4000 permit icmp6 any any router-advertisement
access-list 4000 permit udp any any eq 546
access-list 4009 deny ipv6 any any
access-list 4010 spi ipv6 any any
access-list 4100 permit tcp any any eq 53
access-list 4100 permit udp any any eq 53
access-list 4101 permit tcp any ::1/128
access-list 4101 permit udp any ::1/128
!
ip route 0.0.0.0 0.0.0.0 tunnel 1
ip name-server ::1
!
ip dhcp client-profile DHCPv4_client
 retries infinity
exit
!
ip dhcp server-profile DHCPv4_server
 address 192.168.100.2 192.168.100.254
 lease-time 259200
 dns 192.168.100.1
 gateway 192.168.100.1
exit
!
ip nat list 1 192.168.100.0 0.0.0.255
ip nat wellknown 1 1 65535 off
ip nat port-sharing enable
!
ipv6 dhcp client-profile DHCPv6_client
 option-request dns-server
 option-request dns-server-domain
 retries infinity
exit
!
ipv6 dhcp server-profile DHCPv6_server
 dns port-channel 2
 domain port-channel 2
exit
!
ipinip tunnel-profile MAPCE
 profile-mode map-encap option-a
 map rule-get
 ipinip fragment pre
exit
!
logging buffer level informational
!
hostname FITELnet_MAPCE
!
interface GigaEthernet 1/1
 vlan-id 1
 bridge-group 1
 channel-group 1
 policy-route input DNS-POLICY
exit
!
interface GigaEthernet 2/1
 vlan-id 2
 bridge-group 2
 channel-group 2
 ip access-group 100 in
 ip access-group 109 in
 ip access-group 110 out
 ipv6 access-group 4000 in
 ipv6 access-group 4009 in
 ipv6 access-group 4010 out
exit
!
interface Port-channel 1
 ip dhcp service server
 ip dhcp server-profile DHCPv4_server
 ip address 192.168.100.1 255.255.255.0
 ipv6 enable
 ipv6 address autoconfig
 ipv6 address autoconfig-map-encap MAPCE
 ipv6 nd other-config-flag
 ipv6 nd send-ra
 ipv6 trust-ra-prefix-lifetime
 ipv6 dhcp service server
 ipv6 dhcp server-profile DHCPv6_server
 mss 1420
exit
!
interface Port-channel 2
 ip dhcp service client
 ip dhcp client-profile DHCPv4_client
 ipv6 enable
 ipv6 nd receive-ra prefix-delegation port-channel 1
 ipv6 router-lifetime-receive-enable
 ipv6 trust-ra-prefix-lifetime
 ipv6 dhcp service client
 ipv6 dhcp client-profile DHCPv6_client
exit
!
interface Tunnel 1
 ip access-group 109 in
 ip access-group 110 out
 ip nat inside source list 1 map-encap overload
 tunnel mode ipinip tunnel-profile MAPCE
exit
!
class-map DNS6
 match ipv6 access-group 4100
exit
!
class-map DNS6_LO
 match ipv6 access-group 4101
exit
!
policy-route-map DNS-POLICY
 !
 class DNS6
  search-sequence 10
  count
  action nexthop ##ネクストホップアドレス(IPv6)##
 exit
 !
 class DNS6_LO
  search-sequence 1
  count
  action transmit
 exit
 !
exit
!
local policy-route DNS-POLICY
!
dns-server ip enable
dns-server ipv6 enable
!
proxydns domain 1 any ntt.setup ::1/128 dhcp-no-skip ipv4 port-channel 2
proxydns domain 2 any * any dhcp ipv6 port-channel 2 source-interface port-channel 1
proxydns address 1 any dhcp ipv6 port-channel 2 source-interface port-channel 1
!
end
</pre>

<pre>
access-list 109 deny ip any any
access-list 110 spi ip any any
access-list 4000 permit icmp6 any any neighbor-advertisement
access-list 4000 permit icmp6 any any neighbor-solicitation
access-list 4000 permit icmp6 any any router-advertisement
access-list 4000 permit udp any any eq 546
access-list 4009 deny ipv6 any any
access-list 4010 spi ipv6 any any
!
ip route 0.0.0.0 0.0.0.0 tunnel 1
ip name-server ::1
!
ip dhcp server-profile DHCPv4_server
 address 192.168.100.2 192.168.100.254
 lease-time 259200
 dns 192.168.100.1
 gateway 192.168.100.1
exit
!
ip nat list 1 192.168.100.0 0.0.0.255
ip nat wellknown 1 1 65535 off
ip nat port-sharing enable
!
ipv6 dhcp client-profile DHCPv6_client
 option-request dns-server
 option-request dns-server-domain
 retries infinity
exit
!
ipv6 dhcp server-profile DHCPv6_server
 dns port-channel 2
 domain port-channel 2
exit
!
ipinip tunnel-profile MAPCE
 profile-mode map-encap option-a
 map rule-get
 ipinip fragment pre
exit
!
logging buffer level informational
!
hostname FITELnet_MAPCE
!
interface GigaEthernet 1/1
 vlan-id 1
 bridge-group 1
 channel-group 1
exit
!
interface GigaEthernet 2/1
 vlan-id 2
 bridge-group 2
 channel-group 2
 ipv6 access-group 4000 in
 ipv6 access-group 4009 in
 ipv6 access-group 4010 out
exit
!
interface Port-channel 1
 ip dhcp service server
 ip dhcp server-profile DHCPv4_server
 ip address 192.168.100.1 255.255.255.0
 ipv6 enable
 ipv6 address autoconfig
 ipv6 address autoconfig-map-encap MAPCE
 ipv6 nd other-config-flag
 ipv6 nd send-ra
 ipv6 trust-ra-prefix-lifetime
 ipv6 dhcp service server
 ipv6 dhcp server-profile DHCPv6_server
 mss 1420
exit
!
interface Port-channel 2
 ipv6 enable
 ipv6 nd receive-ra prefix-delegation port-channel 1
 ipv6 router-lifetime-receive-enable
 ipv6 trust-ra-prefix-lifetime
 ipv6 dhcp service client
 ipv6 dhcp client-profile DHCPv6_client
exit
!
interface Tunnel 1
 ip access-group 109 in
 ip access-group 110 out
 ip nat inside source list 1 map-encap overload
 tunnel mode ipinip tunnel-profile MAPCE
exit
!
dns-server ip enable
dns-server ipv6 enable
!
proxydns domain 1 any * any dhcp ipv6 port-channel 2 source-interface port-channel 1
proxydns address 1 any dhcp ipv6 port-channel 2 source-interface port-channel 1
!
end
</pre>
