リモート初期インストールの手順

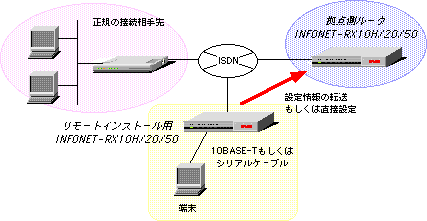

「リモート初期インストール」では,遠隔地にある工場出荷状態にあるINFONET-RX10H/RX20/RX50を,ISDN回線を経由して設定を行うことができます.
「リモート初期インストール」を行う場合は,以下の手順をよく読み,正しく運用を行ってください.

(注)工場出荷状態のINFONET-RX10H/RX20/RX50の初期設定は,発信者番号通知による相手チェックを行いません.そのため,拠点側にINFONET-RX10H/RX20/RX50を設置しただけで外部から接続される可能性があります.すみやかに設定作業を行ってください.

リモート初期インストール


ここでは,リモート初期インストール手順をご紹介します.
INFONET-RX10Hはコマンドによる設定,INFONET-RX20/RX50はメニュー形式による設定となっておりますので,実際に使用される装置の設定手順を行ってください.

その1:INFONET-RX10Hの場合(コマンドによる設定)
その2:INFONET-RX20/RX50の場合(メニュー形式による設定)
拠点側のINFONET-RX10H/RX20/RX50にtelnetでログインし設定を行います
(MUCHOを使用される場合はこちら.)

その1:INFONET-RX10Hの場合

準備
(1) 拠点側にINFONET-RX10Hを設置し,ISDN回線に接続して電源をONします.

リモートインストール用ルータの設定を行います

(1) リモートインストール用ルータに,telnetでログインします.
または,シリアルクロスケーブルで端末とルータを接続している場合は,ターミナルソフトウェアを起動してコンソール画面を開きます.

(2) リモートインストール用ルータを工場出荷時設定にします.
	Login password:
	#reset -d
	Do you want to continue (y/n)?: y
(3) リモートインストール用ルータの設定用コンフィグレーションパスワードが設定されていなければ,コンフィグレーションパスワードを設定します.
	#password -c
	new password:
	retry new password:
(4) コンフィグレーションモードに入ります.
	#conf
	conf#
(5) WAN回線をISDN1回線とします.
	conf#wan isdn
(6) 自局側のISDN番号と複数相手接続を「有効」,無通信監視タイマを「300秒」と設定します.
	conf#isdn multimode=on -1 dial=03xxxxyyyy idletimer=300
					(番号は一例です)
(7) インストールを行う接続先の電話番号を設定します.接続先が複数存在する場合は,その分設定します.
	conf#target add name=Osaka dial=06xxxyyyy
			(ターゲット名,番号は一例です)
(8) リモートインストール用ルータのLAN側のIPアドレス(クラスC)とサブネットマスクを設定します.
	conf#interface lan addr=192.168.1.1,255.255.255.0
				(アドレスは一例です)
LAN側のIPアドレスは,リモートインストール用ルータのLAN環境に合わせてください.この時,'192.52.150.0' のネットワークは使用しないでください.

(9) リモートインストール用ルータのWAN側のIPアドレスとサブネットマスクを設定します.
	conf#interface isdn1 remote=192.52.150.1,255.255.255.0
(10) ルート情報を設定します.デフォルトルートをISDN1とします.
	conf#ipripstatic add dst=0.0.0.0,0.0.0.0 nextif=isdn1

拠点側のINFONET-RX10Hにtelnetでログインして設定を行います

(1) リモートインストール用ルータにtelnetでログインします.
(2) オートログアウト機能をオフにし,再度ログインします.
	Login password:
	#autologout off
	#exit
	V01.00 H
	Login password:
	#
(3) telnetの画面でインストール先と接続します. (この接続は300秒の間にデータ転送が始まらないと回線は切断されます)
	#connect -1 Osaka (接続先は一例です)
(4) 拠点側のINFONET-RX10Hにtelnetでログインします.この時のIPアドレスは "192.52.150.1" 固定です.
	telnet 192.52.150.1
(5) 拠点側のINFONET-RX10Hの場合,ログインパスワードを入力するプロンプトが出ますので,リターンのみ入力します.
	V01.00 H
	Login password:
	#
(6) コンフィグレーションパスワードを設定します.
	#password -c
	new password:
	retry new password:
(7) コンフィグレーションモードに入ります.
	#conf
	conf#
(8) 拠点側のINFONET-RX10Hに応じた設定を行います.
(9) 設定終了後,設定内容を装置に保存し,設定モードを終了します.
	conf#exit
	Configuration modified. save OK? (y/n) : y
(10) 装置をリセットします. 拠点側のINFONET-RX10Hがリセットされ,ISDN回線が切断されます.

(3)〜(10)をくり返すことで,複数の拠点のINFONET-RX10Hをインストールします. インストールが完了した拠点側のINFONET-RX10Hに対しては,正規の接続相手となるところと接続確認試験を行ってください.


その2:INFONET-RX20/RX50の場合

準備
(1) 拠点側にINFONET-RX20/RX50を設置し,ISDN回線に接続して電源をONします.

リモートインストール用ルータの設定を行います

(1) リモートインストール用ルータに,telnetでログインします.
または,シリアルクロスケーブルで端末とルータを接続している場合は,ターミナルソフトウェアを起動してコンソール画面を開きます.

(2) リモートインストール用ルータを工場出荷時設定にします.
	INFONET-RX20 Remote Router A V01.03 1998.04.15
	WAN topology (6) 1998/05/01 15:12:21 (   0 00:00:03) Super Mode
	1. configuration display
	2. configuration set (normal)
	3. configuration set (expert)
	4. operation
	5. information
	6. shift to super mode
	7. exit from remote console or current mode
	Select the number. : 4

	*** Operation menu ***
	  ・
	  ・
	17. reset
	  ・
	  ・
	Select the number. : 17

	*** Reset ***
	1. normal restart          2. all default restart
	3. limited default restart
	Reset mode : 2
(3) リモートインストール用ルータの基本設定を設定します.
	INFONET-RX20 Remote Router A V01.03 1998.04.15
	WAN topology ( 6) 1998/04/22 14:10:28 (   0 00:08:14)  Super Mode
	1. configuration display
	2. configuration set (normal)
	3. configuration set (expert)
	4. operation
	5. information
	6. shift to super mode
	7. exit from remote console or current mode
	Select the number. : 2

	*** Selecting PORT way ***
	  1 HSD,  HSD
	* 2 HSD,  ISDN
	  3 FR,   ISDN
	Select the number. [2]:

	・・・中略

	*** Set multi target configuration ***
	<multi target configuration parameter(s)>
	    multi target: not use
	Do you change (y/n)? [n]: y
	multi target (1:use 2:not use) [2]: 1
	multi target parameter(s) are set to the following values.
	<multi target configuration parameter(s)>
	    multi target: use
	Set OK (y/n)? [y]:

	*** Set ISDN remote address configuration ***
	1. remote address data
	2. remote address list
	3. end
	Select the number. [2]:

	(接続先が複数存在する場合は,その分設定します )
	*** Set ISDN remote address list configuration ***
	    1. change  2. delete  3. add  4. display  5. end
	Select the number. [5]: 3
	<Add ISDN remote address list>(ターゲット名,番号は一例です)
	target [t-0000]: Osaka
	address []: 06xxxyyyy
	subaddress []:
	authen at incoming (1:chap 2:pap 3:off) [3]:
	authen at outgoing (1:chap 2:pap 3:off) [3]:
	password:
	my hostname []:
	my password:

	ISDN remote address list:
	no  target
	---+-----------------------------------------------------------------
	 1. Osaka
	     address                   : 06xxxyyyy
	     subaddress                :
	     authen at incoming        : off
	     authen at outgoing        : off
	     password                  :
	    my host name              :
	    my passwd                 :
	Add OK (y/n)? [y]:

	・・・中略

	*** Main: Set ISDN#1 configuration ***
	<Main ISDN#1 parameter(s)>
	    local  (ISDN address:                      subaddress: )
	    target index:
	    connection activate/deactivate: passive/passive
	Do you change (y/n)? [n]: y
	local ISDN address []: 03xxxxyyyy(番号は一例です)
	       subaddress []:
	<Target index>
	 1. Osaka
	Select the number of target index []: 1

	<Select connection activate/deactivate mode>
	   activate     deactivate    |   activate     deactivate
	------------------------------+----------------------------
	1. time         time          |4. manual       manual
	2. traffic      traffic       |5. passive      passive
	3. time+traffic time+traffic  |
	Select the number. [5]: 2
	Main ISDN#1 parameter(s) are set to the following values.
	<Main ISDN#1 parameter(s)>
	    local  (ISDN address: 03xxxxyyyy           subaddress: )
	    target index: Osaka
	    connection activate/deactivate: traffic/traffic
	Set OK (y/n)? [y]:

	・・・中略

	*** Set IP address target configuration ***
	<IP address target parameter(s)>
	    IP address target table (max 20 entries)
	    no entry.
	Do you change (y/n)? [n]: y

	    1. change  2. delete  3. add  4. end
	Select the number. : 3
	<Add IP address target>
	address []: 192.52.150.1
	<Target index>
	 1. Osaka
	Select the number of target index []: 1

	        address         target
	        192.52.150.1     Osaka
	Add OK (y/n)? [y]:

	*** Set IP router configuration ***
	<IP router configuration parameter(s)>
	    routing interface list
	                                               broadcast or
	             IP address       subnetmask         remote address interface type
	    -------+----------------+----------------+----------------+--------------
	    LAN     192.52.150.1     255.255.255.0    192.52.150.255   broadcast
	    ISDN#1  0.0.0.0          255.255.255.255  0.0.0.0          point to point
	    OSPF protocol: not use
	Do you change (y/n)? [n]: y
	LAN    IP address [192.52.150.1]: 192.168.1.1
	       subnetmask [255.255.255.0]:
	       broadcast [192.168.1.255]:
	ISDN#1 interface type (1:broadcast 2:point to point) [2]: 1
	       IP address []:
	       remote address []:192.52.150.1
	       subnetmask [255.255.255.255]: 255.255.255.0
	OSPF protocol (1:use 2:not use) [2]:
	IP router parameter(s) are set to the following values.
	<IP router configuration parameter(s)>
	      routing interface list
	                                              broadcast or
	            IP address       subnetmask         remote address interface type
	    -------+----------------+----------------+----------------+--------------
	    LAN     192.168.1.1     255.255.255.0    192.168.1.255   broadcast
	    ISDN#1                  255.255.255.0    192.52.150.1    broadcast
	    OSPF protocol: not use
	Set OK (y/n)? [y]:

	・・・中略

	*** Set RIP(IP) interface configuration ***
	<RIP(IP) interface parameter(s)>

	           send    recv    metric pre-    broad- interval   ageout time
	           control control        ference   cast      (sec)             (sec)
	    ------+-------+-------+------+-------+------+----------+------+----------
	    LAN    RIP1    RIP1,2  0      0       -      -          -      -
	    ISDN#1 RIP1    RIP1,2  0      0       off    30         off    180

	        LAN    :                 (not configured)
	        ISDN#1 :                 (not configured)
	Do you change (y/n)? [n]: y
	LAN RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]:
	        recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]:
	    password []:
	    metric [0]:
	    preference [0]:
	ISDN#1 RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]: 4
	           recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]: 4
                           metric [0]:
	       preference [0]:
	       broadcast (1:on 2:off) [2]:
	       broadcast interval (sec) [30]:
	       RIP entry ageout (1:on 2:off) [2]:
	       ageout time (sec) [180]:

	RIP(IP) interface parameter(s) are set to the following values.
	<RIP(IP) interface parameter(s)>

	           send    recv    metric pre-    broad- interval   ageout time
	           control control        ference   cast      (sec)             (sec)
	    ------+-------+-------+------+-------+------+----------+------+----------
	    LAN    RIP1    RIP1,2  0      0       -      -          -      -
	    ISDN#1  off      off  0      0       off    30         off    180
	    <RIP2 password>
                            LAN    :                 (not configured)
	Set OK (y/n)? [y]:

	*** Set IP static routing configuration ***
	    1. change  2. delete  3. add  4. display  5. end
	Select the number. [5]: 4

	<IP static routing table (max 32 entries)>
	    no  dst address     mask            metric preference
	          gateway
	    ---+---------------+---------------+------+----------
	     1. 0.0.0.0         ---.---.---.--- 16     50
	          ISDN#1

	・・・中略

	Now you have set all configurations!
	Do you display the configurations (y/n)? [y]: n

	(Warning): Some configurations are not updated unless you reset
	    1. Save new parameter(s) and reset    3. Configurations set again
	    2. Save new parameter(s) only         4. Quit (no save and no reset)
	Select the number. : 1
(4)拡張設定で, 無通信監視タイマを「300秒」と設定します.
	INFONET-RX20 Remote Router A V01.03 1998.04.15
	WAN topology (6) 1998/05/01 15:12:21 (   0 00:00:03) Super Mode
	1. configuration display
	2. configuration set (normal)
	3. configuration set (expert)
	4. operation
	5. information
	6. shift to super mode
	7. exit from remote console or current mode
	Select the number. : 3

	*** Expert mode (configuration) menu ***
	1. datalink
	  ・
	  ・
	Select the number. : 1

	*** Exp. : Set datalink extension configuration ***
	<Datalink extension parameter(s)>
	  ・
	  ・

	idle timerの設定をデフォルト60秒から300秒に増やす

拠点側のINFONET-RX20/RX50にtelnetでログインして設定を行います

(1) リモートインストール用ルータにtelnetでログインします.
(2)telnetの画面でインストール先と接続します. (この接続は300秒の間にデータ転送が始まらないと回線は切断されます)
	INFONET-RX20 Remote Router A V01.03 1998.04.15
	WAN topology (6) 1998/05/01 15:12:21 (   0 00:00:03) Super Mode
	1. configuration display
	2. configuration set (normal)
	3. configuration set (expert)
	4. operation
	5. information
	6. shift to super mode
	7. exit from remote console or current mode
	Select the number. : 4

	*** Operation menu ***
	1. connect ISDN#1 main line
	  ・
	  ・
	Select the number. : 1

	*** Connect main line ***
	<Target index>
	1. Osaka
	  ・
	  ・
	Select the number of target index [1] :

	(Osaka) Command OK.
	Hit return or ESC or 'q' key:
(4) 端末から拠点側のINFONET-RX20/RX50にtelnetでログインします.この時のIPアドレスは "192.52.150.1" 固定です.
	telnet 192.52.150.1
(5) 拠点側のINFONET-RX20/RX50の場合,メインメニューが出ます.
	INFONET-RX20 Remote Router A V01.03 1998.04.15
	WAN topology (6) 1998/05/01 15:12:21 (   0 00:00:03) Normal Mode
	1. configuration display
	2. configuration set (normal)
	3. configuration set (expert)
	4. operation
	5. information
	6. shift to super mode
	7. exit from remote console or current mode
	Select the number. :
(6) コンフィグレーションを設定するために,スーパーモードに移行します.
(初期導入時は,スーパーモードに移行するためのパスワードが設定されていません)
	INFONET-RX20 Remote Router A V01.03 1998.04.15
	WAN topology (6) 1998/05/01 15:12:21 (   0 00:00:03) Normal Mode
	1. configuration display
	2. configuration set (normal)
	3. configuration set (expert)
	4. operation
	5. information
	6. shift to super mode
	7. exit from remote console or current mode
	Select the number. : 6   ←Super Modeに移動します.
	New password: ***   ←パスワードを入力.
	Retype New password: ***   ←再度パスワードを入力
	New password is accepted.

	INFONET-RX20 Remote Router A V01.03 1998.04.15
	WAN topology (6) 1998/05/01 15:12:30 (   0 00:00:12) Super Mode
	1. configuration display
	2. configuration set (normal)
	3. configuration set (expert)
	4. operation
	5. information
	6. shift to super mode
	7. exit from remote console or current mode
	Select the number. :

(7) 「2. configuration set (normal)」に入り,基本設定を行います.
(8) 拠点側のINFONET-RX20/RX50に応じた設定を行います.
(9) 基本設定終了後,設定内容を装置に保存・リセットを行います.拠点側のINFONET-RX20/RX50がリセットされ,ISDN回線が切断されます.
	(Warning): Some configurations are not updated unless you reset
	    1. Save new parameter(s) and reset    3. Configurations set again
	    2. Save new parameter(s) only         4. Quit (no save and no reset)
	Select the number. : 1

(注)ここで,拡張設定の必要がある場合,メインメニューの表示が出たら「3. configuration set (expert)」に入り,拡張設定を行います.
  • 拠点側のINFONET-RX20/RX50に応じた設定を行います.
  • 拡張設定終了後,装置をリセットします.「4. operation」で「17. reset」を選択し,「1. normal restart」を行います.拠点側のINFONET-RX20/RX50がリセットされ,ISDN回線が切断されます.


  • (3)〜(9)をくり返すことで,複数の拠点のINFONET-RX20/RX50をインストールします. インストールが完了した拠点側のINFONET-RX20/RX50に対しては,正規の接続相手となるところと接続確認試験を行ってください.

    gohome


    All Rights Reserved, Copyright(C) FURUKAWA ELECTRIC CO., LTD. 1998
    古河電工のHomeへ
