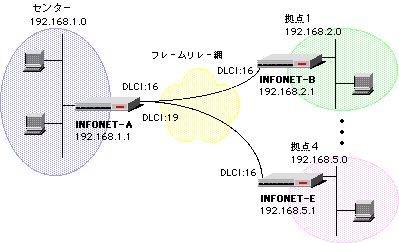

インタフェースアドレスは、InverseARPにより、互いに自動的に割り付けられます。各フレームリレー回線の回線速度は1.5Mbps、CIR値は384kbpsとします。
＊ここでは、INFONET-RX30での設定例を挙げます。
|
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 15:10:39 ( 0 00:30:51) Normal Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 6 ←Super Modeに移動します
New password: ←必ずパスワードを入れてください
Retype New password:
New password is accepted.
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 15:10:49 ( 0 00:31:01) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 2
*** Selecting PORT way ***
* 1 HSD
2 FR
Select the number. [1]: 2 ←フレームリレーを選択します
Execute system reset.
Do you want to continue ? [y/n] y
<< ここでリセットが入ります >>
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology (--) 1998/06/25 15:12:16 ( 0 00:00:09) Normal Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 6
Password:
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology (--) 1998/06/25 15:12:37 ( 0 00:00:29) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 2
*** Selecting PORT way ***
1 HSD
* 2 FR
Select the number. [2]:
*** Set current time parameter(s) ***
1998/06/25 15:12:42
Do you change (y/n)? [n]:
*** Main: Set FR configuration ***
<Main FR parameter(s)>
speed : 192Kbps
Do you change (y/n)? [n]: y
speed(1:192K 2:256K 3:384K 4:512K 5:768K 6:1024K 7:1152K 8:1.5M) [1]: 8
←回線速度は1.5Mbps
Main FR parameter(s) are set to the following values.
<Main FR parameter(s)>
speed : 1.5Mbps
Set OK (y/n)? [y]:
*** Set DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]: 2
Select the DLCI number. [all]:
<DLCI(CIR) table (max 32 entries)>
DLCI CIR(bps) data compress
-----+--------+-------------
16 192000 no
17 192000 no
18 192000 no
19 192000 no
20 192000 no
21 192000 no
22 192000 no
- MORE -
*** Set DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]: 1 ←契約しているCIR値に変更します
<Change DLCI(CIR) data>
Select the DLCI number. : 16 ←契約しているDLCI番号を選択する
Selected DLCI(CIR) data:
DLCI CIR(bps) data compress
-----+--------+-------------
16 192000 no
CIR (bps) [192000]: 384000 ←CIR値は384000kbps
data compress (1:yes 2:no) [2]:
DLCI(CIR) data:
DLCI CIR(bps) data compress
-----+--------+-------------
16 384000 no
Change OK (y/n)? [y]:
<< 同様にDLCI 17〜19を設定 >>
*** Set DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]:
*** Set basic configuration ***
<Basic configuration parameter(s)>
IP routing : use
IP filtering : not use
IPX routing : not use
AppleTalk routing: not use
bridging : not use
SNMP : use
Do you change (y/n)? [n]:
*** Set IP router configuration ***
<IP router configuration parameter(s)>
routing interface list
broadcast or
IP address subnetmask remote address interface type
-------+----------------+----------------+----------------+--------------
LAN 192.52.150.1 255.255.255.0 192.52.150.255 broadcast
FR point to point
OSPF protocol: not use
Do you change (y/n)? [n]: y
LAN IP address [192.52.150.1]: 192.168.1.1
←ルータのLANアドレス
subnetmask [255.255.255.0]:
broadcast [192.168.1.255]:
FR interface type (1:broadcast 2:point to point) [2]:
←Unnumberedで接続
OSPF protocol (1:use 2:not use) [2]:
IP router parameter(s) are set to the following values.
<IP router configuration parameter(s)>
routing interface list
broadcast or
IP address subnetmask remote address interface type
-------+----------------+----------------+----------------+--------------
LAN 192.168.1.1 255.255.255.0 192.168.1.255 broadcast
FR point to point
OSPF protocol: not use
Set OK (y/n)? [y]:
*** Set RIP(IP) motion configuration ***
<RIP(IP) motion parameter(s)>
mode : supplier
default metric: 16
Do you change (y/n)? [n]:
*** Set RIP(IP) interface configuration ***
<RIP(IP) interface parameter(s)>
send recv metric pre- broad- interval ageout time
control control ference cast (sec) (sec)
------+-------+-------+------+-------+------+----------+------+----------
LAN RIP1 RIP1,2 0 0 - - - -
FR RIP1 RIP1,2 0 0 off 30 off 180
<RIP2 password>
LAN : (not configured)
FR : (not configured)
Do you change (y/n)? [n]: y
LAN RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]:
recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]:
password []:
metric [0]:
preference [0]:
FR RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]: 4
←RIPを使用しません
recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]: 4
←RIPを使用しません
metric [0]:
preference [0]:
broadcast (1:on 2:off) [2]:
broadcast interval (sec) [30]:
RIP entry ageout (1:on 2:off) [2]:
ageout time (sec) [180]:
RIP(IP) interface parameter(s) are set to the following values.
<RIP(IP) interface parameter(s)>
send recv metric pre- broad- interval ageout time
control control ference cast (sec) (sec)
------+-------+-------+------+-------+------+----------+------+----------
LAN RIP1 RIP1,2 0 0 - - - -
FR off off 0 0 off 30 off 180
<RIP2 password>
LAN : (not configured)
FR :
Set OK (y/n)? [y]:
**** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 4
<IP static routing table (max 32 entries)>
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 0.0.0.0 ---.---.---.--- 16 50
FR
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 2 ←必要でないスタティックルートを削除する
<Delete IP static routing data>
Select the entry number. : 1
Selected IP static routing data:
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 0.0.0.0 ---.---.---.--- 16 50
FR
Delete OK (y/n)? [n]: y
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 3 ←スタティックルートを設定する
<Add IP static routing data>
destination address [0.0.0.0]: 192.168.2.0
mask [255.255.255.0]:
gateway [0.0.0.0]: 192.168.2.1
metric [16]: 2
preference [50]:
IP static routing data:
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 192.168.2.0 255.255.255.0 2 50
192.168.2.1
Add OK (y/n)? [y]:
<< 同様に〜192.168.5.0宛のスタティックルートを設定 >>
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]:
：
：省略
：
Now you have set all configurations!
Do you display the configurations (y/n)? [y]: n
(Warning): Some configurations are not updated unless you reset
1. Save new parameter(s) and reset 3. Configurations set again
2. Save new parameter(s) only 4. Quit (no save and no reset)
Select the number. : 2 ←セーブを行います
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 15:19:01 ( 0 00:00:14) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 3 ←拡張設定を行います
*** Expert mode (configuration) menu ***
1. datalink
2. bridging
：
：省略
：
Select the number. : 1
*** EXP.: Set datalink configuration ***
1. datalink
2. DLCI address table
3. DLCI(CIR) table
4. DLCI protocol table
Select the number. : 3
*** EXP.: Set datalink DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]: 1
<Change datalink DLCI(CIR) data>
Select the DLCI number. : 16
Selected datalink DLCI(CIR) data:
DLCI CIR(bps) PIR(bps) lowspeed(bps)
-----+--------+--------+-------------
16 384000 384000 0
CIR (bps) [384000]:
PIR (bps) [384000]: 1536000 ←回線速度を設定します
lowspeed (bps) [0]:
datalink DLCI(CIR) data:
DLCI CIR(bps) PIR(bps) lowspeed(bps)
-----+--------+--------+-------------
16 384000 1536000 0
Change OK (y/n)? [y]:
<< 同様にDLCI 17〜19を設定 >>
*** EXP.: Set datalink DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]: 2
Select the DLCI number. [all]:
<Datalink DLCI(CIR) table (max 64 entries)>
DLCI CIR(bps) PIR(bps) lowspeed(bps)
-----+--------+--------+-------------
16 384000 1536000 0
17 384000 1536000 0
18 384000 1536000 0
19 384000 1536000 0
20 192000 192000 0
21 192000 192000 0
22 192000 192000 0
- MORE -
*** EXP.: Set datalink DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]:
*** EXP.: Set datalink configuration ***
1. datalink
2. DLCI address table
3. DLCI(CIR) table
4. DLCI protocol table
Select the number. :
<< ESCでメインメニューまで戻る >>
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 15:20:07 ( 0 00:01:20) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 4
*** Operation menu ***
1. remote console
2. echo test
3. change password
4. dump all configurations
5. frame trace
6. put out system check LED
7. Flush IPX proxy and spoofing table(s)
8. reset
Select the number. : 8
*** Reset ***
1. normal restart 2. all default restart
3. limited default restart
Reset mode: 1 ←リセットが行われ立ち上がり後、設定が有効です
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 15:10:39 ( 0 00:30:51) Normal Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 6 ←Super Modeに移動します
New password: ←必ずパスワードを入れてください
Retype New password:
New password is accepted.
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 15:10:49 ( 0 00:31:01) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 2
*** Selecting PORT way ***
* 1 HSD
2 FR
Select the number. [1]: 2 ←フレームリレーを選択します
Execute system reset.
Do you want to continue ? [y/n] y
<< ここでリセットが入ります >>
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology (--) 1998/06/25 15:12:16 ( 0 00:00:09) Normal Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 6
Password:
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology (--) 1998/06/25 15:12:37 ( 0 00:00:29) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 2
*** Selecting PORT way ***
1 HSD
* 2 FR
Select the number. [2]:
*** Set current time parameter(s) ***
1998/06/25 15:12:42
Do you change (y/n)? [n]:
*** Main: Set FR configuration ***
<Main FR parameter(s)>
speed : 192Kbps
Do you change (y/n)? [n]: y
speed(1:192K 2:256K 3:384K 4:512K 5:768K 6:1024K 7:1152K 8:1.5M) [1]: 8
←回線速度は1.5Mbps
Main FR parameter(s) are set to the following values.
<Main FR parameter(s)>
speed : 1.5Mbps
Set OK (y/n)? [y]:
*** Set DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]: 2
Select the DLCI number. [all]:
<DLCI(CIR) table (max 32 entries)>
DLCI CIR(bps) data compress
-----+--------+-------------
16 192000 no
17 192000 no
18 192000 no
19 192000 no
20 192000 no
21 192000 no
22 192000 no
- MORE -
*** Set DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]: 1 ←契約しているCIR値に変更します
<Change DLCI(CIR) data>
Select the DLCI number. : 16 ←契約しているDLCI番号を選択する
Selected DLCI(CIR) data:
DLCI CIR(bps) data compress
-----+--------+-------------
16 192000 no
CIR (bps) [192000]: 384000 ←CIR値は384000kbps
data compress (1:yes 2:no) [2]:
DLCI(CIR) data:
DLCI CIR(bps) data compress
-----+--------+-------------
16 384000 no
Change OK (y/n)? [y]:
*** Set DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]:
*** Set basic configuration ***
<Basic configuration parameter(s)>
IP routing : use
IP filtering : not use
IPX routing : not use
AppleTalk routing: not use
bridging : not use
SNMP : use
Do you change (y/n)? [n]:
*** Set IP router configuration ***
<IP router configuration parameter(s)>
routing interface list
broadcast or
IP address subnetmask remote address interface type
-------+----------------+----------------+----------------+--------------
LAN 192.52.150.1 255.255.255.0 192.52.150.255 broadcast
FR point to point
OSPF protocol: not use
Do you change (y/n)? [n]: y
LAN IP address [192.52.150.1]: 192.168.2.1
←ルータのLANアドレス
subnetmask [255.255.255.0]:
broadcast [192.168.2.255]:
FR interface type (1:broadcast 2:point to point) [2]:
←Unnumberedで接続
OSPF protocol (1:use 2:not use) [2]:
IP router parameter(s) are set to the following values.
<IP router configuration parameter(s)>
routing interface list
broadcast or
IP address subnetmask remote address interface type
-------+----------------+----------------+----------------+--------------
LAN 192.168.2.1 255.255.255.0 192.168.2.255 broadcast
FR point to point
OSPF protocol: not use
Set OK (y/n)? [y]:
*** Set RIP(IP) motion configuration ***
<RIP(IP) motion parameter(s)>
mode : supplier
default metric: 16
Do you change (y/n)? [n]:
*** Set RIP(IP) interface configuration ***
<RIP(IP) interface parameter(s)>
send recv metric pre- broad- interval ageout time
control control ference cast (sec) (sec)
------+-------+-------+------+-------+------+----------+------+----------
LAN RIP1 RIP1,2 0 0 - - - -
FR RIP1 RIP1,2 0 0 off 30 off 180
<RIP2 password>
LAN : (not configured)
FR : (not configured)
Do you change (y/n)? [n]: y
LAN RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]:
recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]:
password []:
metric [0]:
preference [0]:
FR RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]: 4
←RIPを使用しません
recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]: 4
←RIPを使用しません
metric [0]:
preference [0]:
broadcast (1:on 2:off) [2]:
broadcast interval (sec) [30]:
RIP entry ageout (1:on 2:off) [2]:
ageout time (sec) [180]:
RIP(IP) interface parameter(s) are set to the following values.
<RIP(IP) interface parameter(s)>
send recv metric pre- broad- interval ageout time
control control ference cast (sec) (sec)
------+-------+-------+------+-------+------+----------+------+----------
LAN RIP1 RIP1,2 0 0 - - - -
FR off off 0 0 off 30 off 180
<RIP2 password>
LAN : (not configured)
FR :
Set OK (y/n)? [y]:
**** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 4
<IP static routing table (max 32 entries)>
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 0.0.0.0 ---.---.---.--- 16 50
FR
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 2 ←必要でないスタティックルートを削除する
<Delete IP static routing data>
Select the entry number. : 1
Selected IP static routing data:
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 0.0.0.0 ---.---.---.--- 16 50
FR
Delete OK (y/n)? [n]: y
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 3 ←スタティックルートを設定する
<Add IP static routing data>
destination address [0.0.0.0]: 192.168.1.0
mask [255.255.255.0]:
gateway [0.0.0.0]: 192.168.1.1
metric [16]: 2
preference [50]:
IP static routing data:
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 192.168.1.0 255.255.255.0 2 50
192.168.1.1
Add OK (y/n)? [y]:
（通信したい相手のみを設定）
<< 同様に〜192.168.5.0宛のスタティックルートを設定 >>
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]:
：
：省略
：
Now you have set all configurations!
Do you display the configurations (y/n)? [y]: n
(Warning): Some configurations are not updated unless you reset
1. Save new parameter(s) and reset 3. Configurations set again
2. Save new parameter(s) only 4. Quit (no save and no reset)
Select the number. : 2 ←セーブを行います
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 15:19:01 ( 0 00:00:14) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 3 ←拡張設定を行います
*** Expert mode (configuration) menu ***
1. datalink
2. bridging
：
：省略
：
Select the number. : 1
*** EXP.: Set datalink configuration ***
1. datalink
2. DLCI address table
3. DLCI(CIR) table
4. DLCI protocol table
Select the number. : 3
*** EXP.: Set datalink DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]: 1
<Change datalink DLCI(CIR) data>
Select the DLCI number. : 16
Selected datalink DLCI(CIR) data:
DLCI CIR(bps) PIR(bps) lowspeed(bps)
-----+--------+--------+-------------
16 384000 384000 0
CIR (bps) [384000]:
PIR (bps) [384000]: 1536000 ←回線速度を設定します
lowspeed (bps) [0]:
datalink DLCI(CIR) data:
DLCI CIR(bps) PIR(bps) lowspeed(bps)
-----+--------+--------+-------------
16 384000 1536000 0
Change OK (y/n)? [y]:
<< 同様にDLCI 17〜19を設定 >>
*** EXP.: Set datalink DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]: 2
Select the DLCI number. [all]:
<Datalink DLCI(CIR) table (max 64 entries)>
DLCI CIR(bps) PIR(bps) lowspeed(bps)
-----+--------+--------+-------------
16 384000 1536000 0
17 192000 192000 0
18 192000 192000 0
19 192000 192000 0
20 192000 192000 0
21 192000 192000 0
22 192000 192000 0
- MORE -
*** EXP.: Set datalink DLCI(CIR) table configuration ***
1. change 2. display 3. end
Select the number. [3]:
*** EXP.: Set datalink configuration ***
1. datalink
2. DLCI address table
3. DLCI(CIR) table
4. DLCI protocol table
Select the number. :
<< ESCでメインメニューまで戻る >>
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 15:20:07 ( 0 00:01:20) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 4
*** Operation menu ***
1. remote console
2. echo test
3. change password
4. dump all configurations
5. frame trace
6. put out system check LED
7. Flush IPX proxy and spoofing table(s)
8. reset
Select the number. : 8
*** Reset ***
1. normal restart 2. all default restart
3. limited default restart
Reset mode: 1 ←リセットが行われ立ち上がり後、設定が有効です
