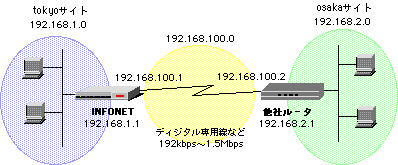

＊ここでは、INFONET-RX30での設定例を挙げます。
|
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 17:34:14 ( 0 00:38:24) Normal Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 6 ←Super Modeに移動します
New password: ←必ずパスワードを入れてください
Retype New password:
New password is accepted.
INFONET-RX30 Remote Router B V01.01 1998.04.06
WAN topology ( 1) 1998/06/25 17:34:25 ( 0 00:38:35) Super Mode
1. configuration display
2. configuration set (normal)
3. configuration set (expert)
4. operation
5. information
6. shift to super mode
7. exit from remote console or current mode
Select the number. : 2
*** Selecting PORT way ***
* 1 HSD
2 FR
Select the number. [1]:
*** Set current time parameter(s) ***
1998/06/25 17:34:29
Do you change (y/n)? [n]:
*** Main: Set HSD configuration ***
<Main HSD parameter(s)>
speed : 192Kbps
Do you change (y/n)? [n]: y
speed(1:192K 2:256K 3:384K 4:512K 5:768K 6:1024K 7:1152K 8:1.5M) [1]: 5
←回線速度は768kbps
Main HSD parameter(s) are set to the following values.
<Main HSD parameter(s)>
speed : 768Kbps
Set OK (y/n)? [y]:
*** Set basic configuration ***
<Basic configuration parameter(s)>
IP routing : use
IP filtering : not use
IPX routing : not use
AppleTalk routing: not use
bridging : not use
SNMP : use
Do you change (y/n)? [n]:
*** Set IP router configuration ***
<IP router configuration parameter(s)>
routing interface list
broadcast or
IP address subnetmask remote address interface type
-------+----------------+----------------+----------------+--------------
LAN 192.52.150.1 255.255.255.0 192.52.150.255 broadcast
HSD 0.0.0.0 255.255.255.255 0.0.0.0 point to point
OSPF protocol: not use
Do you change (y/n)? [n]: y
LAN IP address [192.52.150.1]: 192.168.1.1
←ルータのLANアドレス
subnetmask [255.255.255.0]:
broadcast [192.168.1.255]:
HSD interface type (1:broadcast 2:point to point) [2]: 1
IP address []: 192.168.100.1
←ルータのWANアドレス
subnetmask [255.255.255.255]: 255.255.255.0
broadcast [192.168.100.255]:
OSPF protocol (1:use 2:not use) [2]:
IP router parameter(s) are set to the following values.
<IP router configuration parameter(s)>
routing interface list
broadcast or
IP address subnetmask remote address interface type
-------+----------------+----------------+----------------+--------------
LAN 192.168.1.1 255.255.255.0 192.168.1.255 broadcast
HSD 192.168.100.1 255.255.255.0 192.168.100.255 broadcast
OSPF protocol: not use
Set OK (y/n)? [y]:
*** Set RIP(IP) motion configuration ***
<RIP(IP) motion parameter(s)>
mode : supplier
default metric: 16
Do you change (y/n)? [n]:
*** Set RIP(IP) interface configuration ***
<RIP(IP) interface parameter(s)>
send recv metric pre- broad- interval ageout time
control control ference cast (sec) (sec)
------+-------+-------+------+-------+------+----------+------+----------
LAN RIP1 RIP1,2 0 0 - - - -
HSD RIP1 RIP1,2 0 0 on 30 on 180
<RIP2 password>
LAN : (not configured)
HSD : (not configured)
Do you change (y/n)? [n]:
Do you change (y/n)? [n]: y
LAN RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]:
recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]:
password []:
metric [0]:
preference [0]:
HSD RIP send control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [1]: 4
←RIPを使用しません
recv control (1:RIP1 2:RIP2 3:RIP1,2 4:off) [3]: 4
←RIPを使用しません
metric [0]:
preference [0]:
broadcast (1:on 2:off) [1]:
broadcast interval (sec) [30]:
RIP entry ageout (1:on 2:off) [1]:
ageout time (sec) [180]:
RIP(IP) interface parameter(s) are set to the following values.
<RIP(IP) interface parameter(s)>
send recv metric pre- broad- interval ageout time
control control ference cast (sec) (sec)
------+-------+-------+------+-------+------+----------+------+----------
LAN RIP1 RIP1,2 0 0 - - - -
HSD off off 0 0 on 30 on 180
<RIP2 password>
LAN : (not configured)
HSD :
Set OK (y/n)? [y]:
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 4
<IP static routing table (max 32 entries)>
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 0.0.0.0 ---.---.---.--- 16 50
HSD
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 2 ←必要でないスタティックルートを削除する
<Delete IP static routing data>
Select the entry number. : 1
Selected IP static routing data:
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 0.0.0.0 ---.---.---.--- 16 50
HSD
Delete OK (y/n)? [n]: y
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]: 3 ←スタティックルートを設定する
<Add IP static routing data>
destination address [0.0.0.0]: 192.168.2.0
mask [255.255.255.0]:
gateway type(1:IP address 2:Interface) [1]: 2
interface(1:HSD) []: 1
metric [16]: 2
preference [50]:
IP static routing data:
no dst address mask metric preference
gateway
---+---------------+---------------+------+----------
1. 192.168.2.0 255.255.255.0 2 50
HSD
Add OK (y/n)? [y]:
*** Set IP static routing configuration ***
1. change 2. delete 3. add 4. display 5. end
Select the number. [5]:
：
：省略
：
Now you have set all configurations!
Do you display the configurations (y/n)? [y]: n
(Warning): Some configurations are not updated unless you reset
1. Save new parameter(s) and reset 3. Configurations set again
2. Save new parameter(s) only 4. Quit (no save and no reset)
Select the number. : 1 ←リセットが行われ立ち上がり後、設定が有効です
