Like CPU (Central Processing Unit), LED is made of semiconductive material.
An appropriate cooling measure must be taken.
Otherwise, LED will be damaged by heat and will eventually lose it’s brightness…
Can you really trust the thermal solution you are now using?
The HYC series draws on the heat dissipation/cooling technologies and expertise in electronics products that Furukawa Electric has developed over many years.

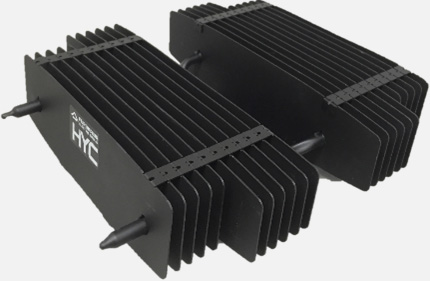

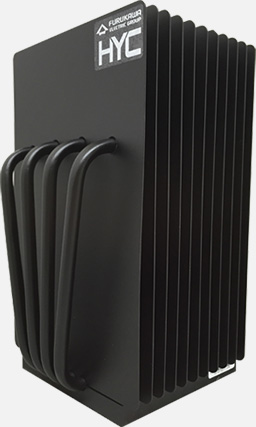

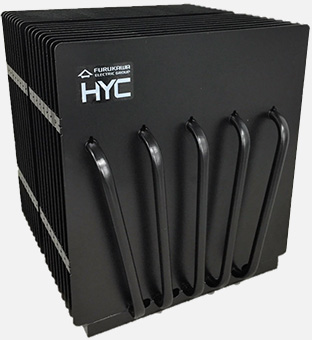

HYC series is designed to cool high power LED (COB module) in addition, HYC Series has achieved less than half the weight as compared to conventional die cast and extruded heat sinks.
Click below for your most suitable "HYC"
Click below for details and enquiries

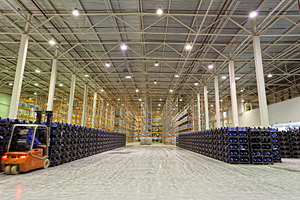

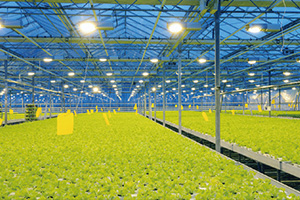

HYC series is used for cooling high power LED lighting in stadiums, gymnasiums, boat race courses, theaters, warehouses, and factories worldwide.

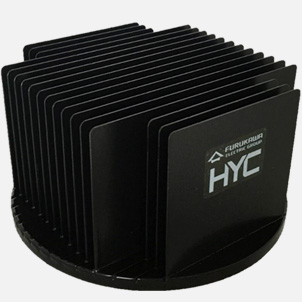

Spot Light
High Bay
Flood Light

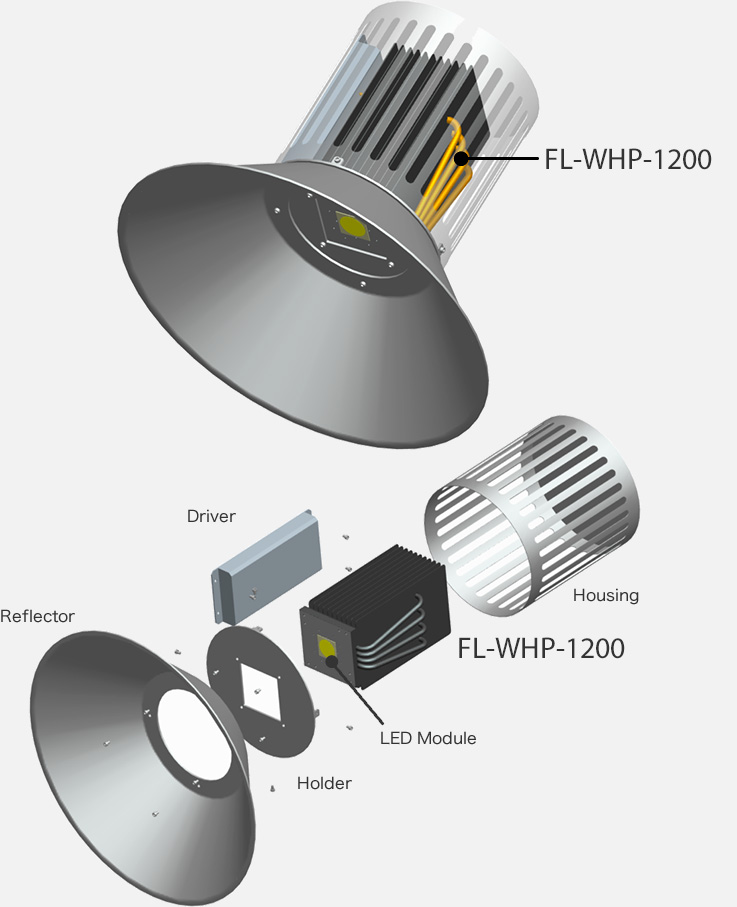

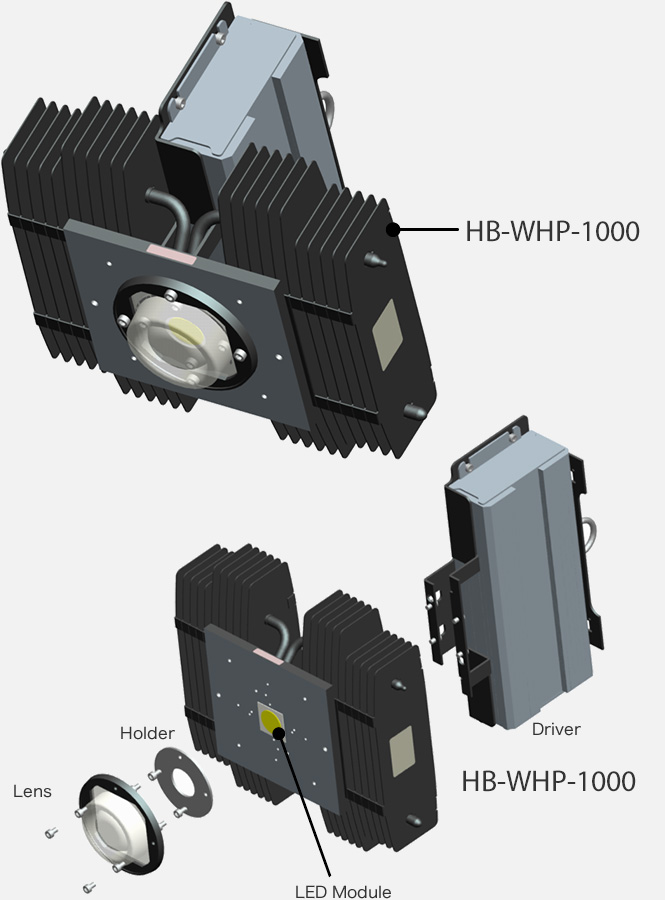

By simply using standard lighting components such as COB module, holder, lens, and driver with HYC heat sink, you can easily design and assemble your own LED lighting product.
Click below for your most suitable "HYC"
Click below for details and enquiries

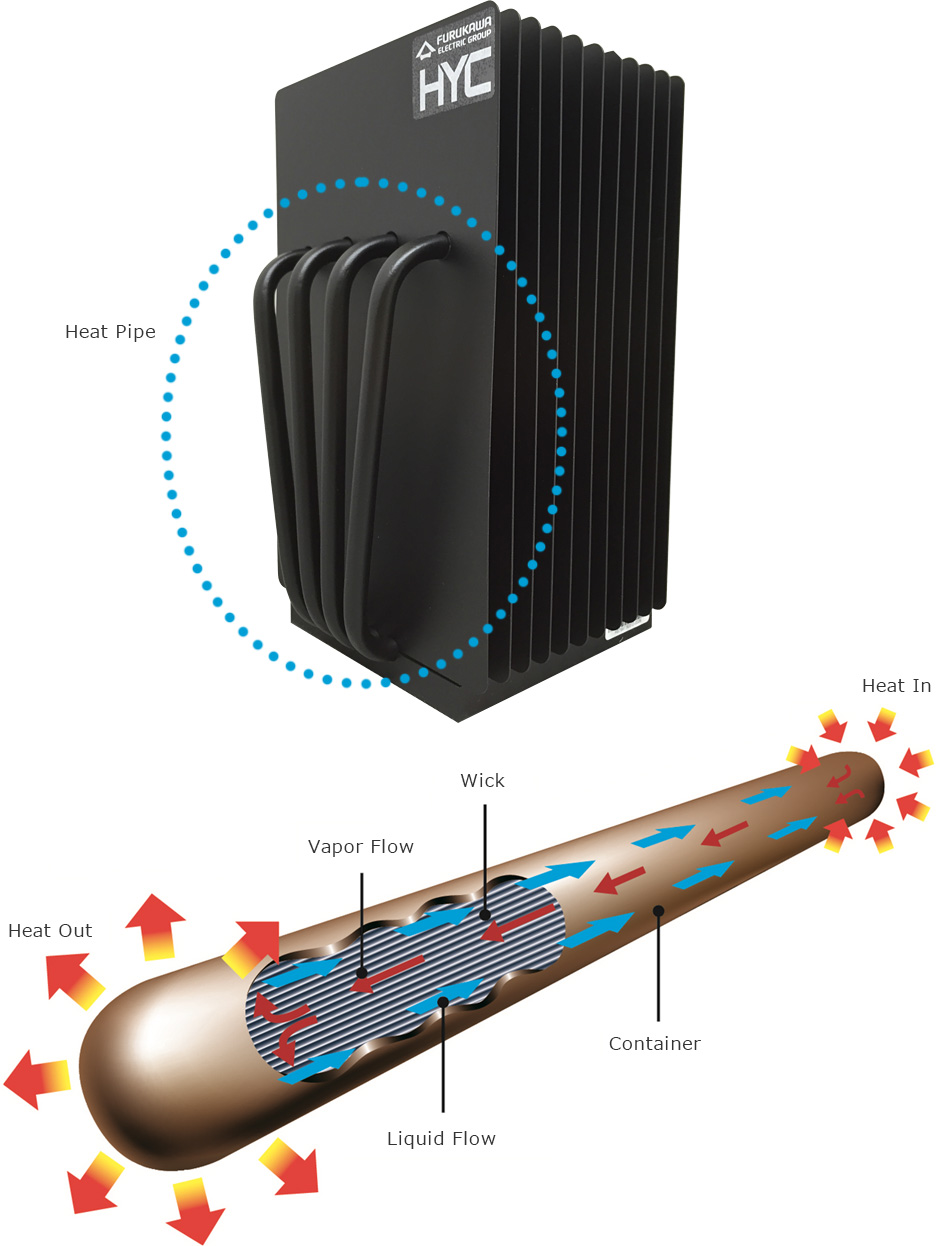

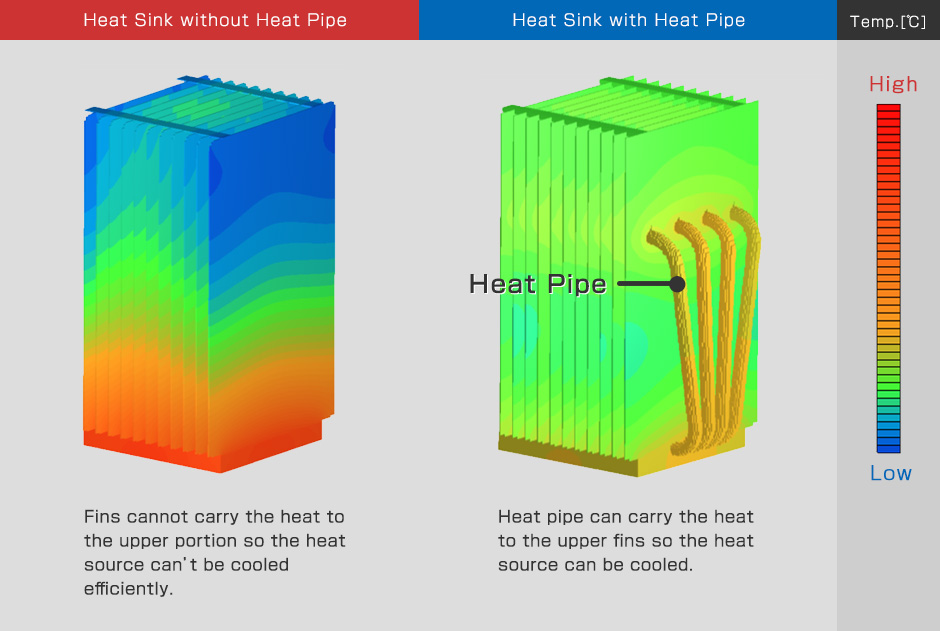

By using the heat pipe technology, HYC heat sink can achieve excellent thermal performance without adding weight.
Heat pipe is a very highly effective thermal conductive device used in satellites.
Heat pipe is simply made of copper and water. By using Furukawa Electric’s high quality heat pipe, there is no need to use an active fan for cooling high power LED solutions.
Click below for your most suitable "HYC"
Click below for details and enquiries
Download our "Simulation Tool " for the most suitable HYC for your case.
OR Contact Us by web form or through our Regional Contacts for more details.
| Product Name | Weight | Dimensions | Spec | |
|---|---|---|---|---|
 |
DL-CHS-0700-B | 0.8 kg | φ158×H82.5mm | DL-CHS-0700-B |
|

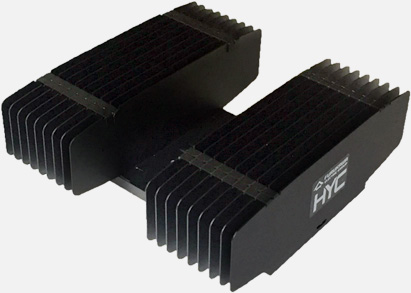

HB-WHP-0700-B | 0.7 kg | W173×L176×H61mm | HB-WHP-0700-B |
 |
HB-WHP-1000-B | 1.0 kg | W250×L220×H68mm | HB-WHP-1000-B |
 |
FL-WHP-1200-B | 1.2 kg | W143×L130×H220mm | FL-WHP-1200-B |
 |
FL-WHP-3100-B | 3.1 kg | W226×L200×H220mm | FL-WHP-3100-B |
Click below for your most suitable "HYC"
Click below for details and enquiries
The product life of LED lighting is strongly connected with the thermal design. In other words, without a reliable thermal solution, LED will burn out just like a light bulb which contradicts with the reason why people buy LED products even if it costs much more than conventional lightings.
But how do you know which thermal solution to choose for your LED lights when you are not experienced with thermal engineering?
To ensure that you have enough cooling power for your LEDs, let us calculate the thermal requirements based on your product specs. Try our new simulation tool for FREE and it can guide you to the most suitable HYC product for you in less than a minute.
Free Simulation Tool
Contact us today for quote, sample and additional information.
