HYC
HYC series Standard LED Heat sink

Bringing CPU Cooling Technology to Lighting

Like CPU (Central Processing Unit), LED is made of semiconductive material.
An appropriate cooling measure must be taken.
Otherwise, LED will be damaged by heat and will eventually lose it’s brightness…

Can you really trust the thermal solution you are now using?

back to the top

The Lightest Cooling Solution

Less than half the weight of conventional die cast and extruded heatsink

The HYC series draws on the heat dissipation/cooling technologies and expertise in electronics products that Furukawa Electric has developed over many years.
HYC series is designed to cool high power LED (COB module) in addition, HYC Series has achieved less than half the weight as compared to conventional die cast and extruded heat sinks.

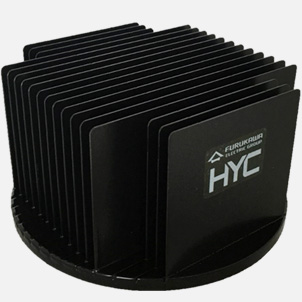

DL-CHS-0700

Electrical Power 130W LED (COB module)
Weight 0.8kg

Learn More

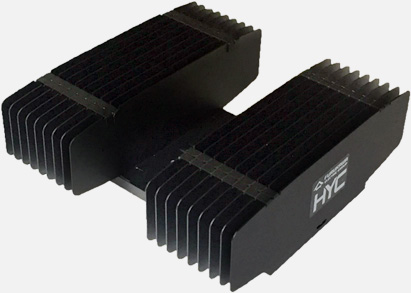

HB-WHP-0700

Electrical Power 150W LED (COB Module)
Weight 0.7kg

Learn More

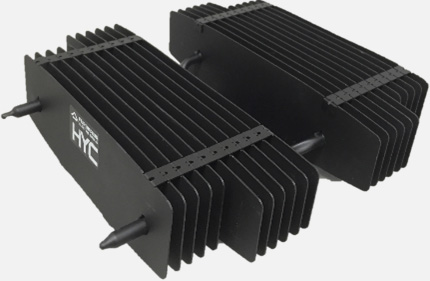

HB-WHP-1000

Electrical Power 200 to 300W LED (COB module)
Weight 1.0kg

Learn More

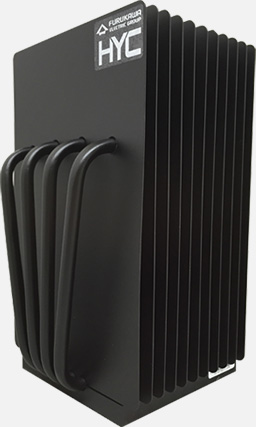

FL-WHP-1200

Electrical Power from 200W to 300W LED (COB module)
Weight 1.2kg

Learn More

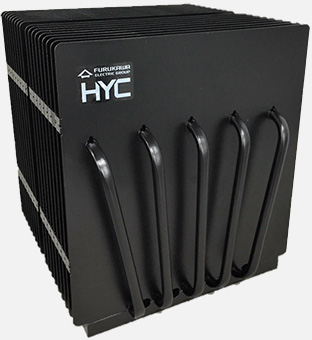

FL-WHP-3100

Electrical Power 500W LED (COB module)
Weight 3.1kg

Learn More

Click below for your most suitable "HYC"

Free Simulation Tool

Click below for details and enquiries

Ask Questions

back to the top

Supporting High Power LED

HYC series is used for cooling high power LED lighting in stadiums, gymnasiums, boat race courses, theaters, warehouses, and factories worldwide.

Spot Light

Spot Light

Spot Light

Green House

High Bay

High Bay

High Bay

High Bay

Flood Light

Flood Light

Flood Light

Flood Light

back to the top

Quick and Easy to Design and Build

By simply using standard lighting components such as COB module, holder, lens, and driver with HYC heat sink, you can easily design and assemble your own LED lighting product.

FL-WHP-1200-A?FL-WHP-1200-B (former “HYC200”)の図解

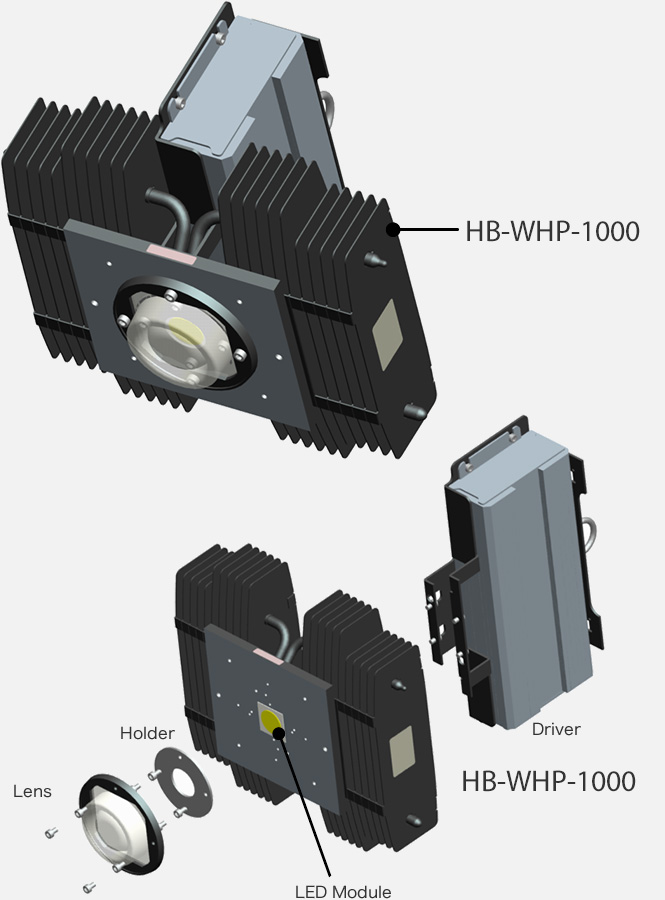

HB-WHP-1000-A, HB-WHP-1000-B(former “HYC300HB”)の図解

Click below for your most suitable "HYC"

Free Simulation Tool

Click below for details and enquiries

Ask Questions

back to the top

Technology Used in Space

Excellent thermal performance using heat pipe technology

By using the heat pipe technology, HYC heat sink can achieve excellent thermal performance without adding weight.
Heat pipe is a very highly effective thermal conductive device used in satellites.
Heat pipe is simply made of copper and water. By using Furukawa Electric’s high quality heat pipe, there is no need to use an active fan for cooling high power LED solutions.

Heat Pipe
Thermal Conductive Rate 200 Times of Copper,No Need of Electric Power,Life Over 20 years

back to the top

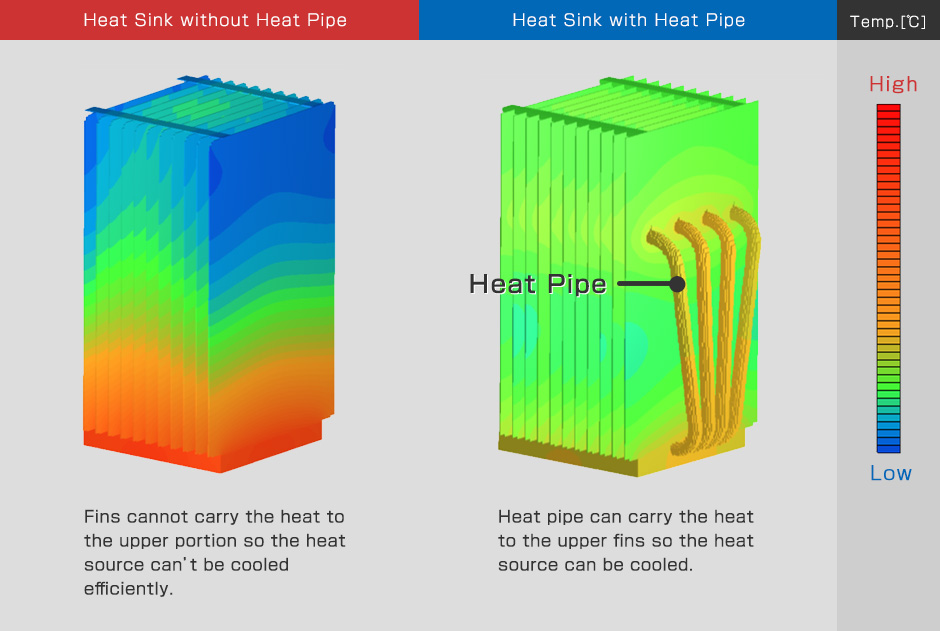

Effect of Heat Pipe

Heat pipe can carry the heat to the upper fins so the heat source can be cooled.

Click below for your most suitable "HYC"

Free Simulation Tool

Click below for details and enquiries

Ask Questions

back to the top

Product Line up

Capable from 100W to 500W

Download our "Simulation Tool " for the most suitable HYC for your case.

OR Contact Us by web form or through our Regional Contacts for more details.

Product Name Weight Dimensions Spec
DL-CHS-0700-B (former “HYC130c”) DL-CHS-0700-B 0.8 kg φ158×H82.5mm DL-CHS-0700-B

HB-WHP-0700-B 0.7 kg W173×L176×H61mm HB-WHP-0700-B
HB-WHP-1000-A, HB-WHP-1000-B(former “HYC300HB”) HB-WHP-1000-B 1.0 kg W250×L220×H68mm HB-WHP-1000-B
FL-WHP-1200-A?FL-WHP-1200-B (former “HYC200”) FL-WHP-1200-B 1.2 kg W143×L130×H220mm FL-WHP-1200-B
FL-WHP-3100-A,FL-WHP-3100-B(former “HYC 500ST”) FL-WHP-3100-B 3.1 kg W226×L200×H220mm FL-WHP-3100-B

Click below for your most suitable "HYC"

Free Simulation Tool

Click below for details and enquiries

Ask Questions

back to the top

Let’s Simulate

Find out which thermal solution you need for your LED lights

The product life of LED lighting is strongly connected with the thermal design. In other words, without a reliable thermal solution, LED will burn out just like a light bulb which contradicts with the reason why people buy LED products even if it costs much more than conventional lightings.

But how do you know which thermal solution to choose for your LED lights when you are not experienced with thermal engineering?

To ensure that you have enough cooling power for your LEDs, let us calculate the thermal requirements based on your product specs. Try our new simulation tool for FREE and it can guide you to the most suitable HYC product for you in less than a minute.

Free Simulation Tool

Download Now

back to the top



Contact us today for quote, sample and additional information.

Contact Us

Regional Contacts

Asia Pacific

Singapore

Furukawa Electric Singapore Pte. Ltd. (FES)

60 Albert Street, #13-10 OG Albert Complex, Singapore 189969
PIC: Mr. Euston Tsai
E-mail: fec.hyc@furukawaelectric.com
Tel: +65-6224-4686

Europe, Turkey, Middle East, Africa

Open New Window.Furukawa Electric Europe Ltd. (FEEL)

Turkey

Barbaros Mahallesi Kardelen Sokak Palladium Tower No:2 K:10 D:41 Atasehir - Istanbul, Turkey
PIC: Mr. Özgür Çandır
E-mail: fec.hyc@furukawaelectric.com
Tel: +90-216-687-0366

Germany

Schimmelbuschstr. 9,
D-40699 Erkrath,
Germany
PIC: Mr. Jens Gollata
E-mail: fec.hyc@furukawaelectric.com
Tel: +49(0)-2104-95236-11

North, Central, South America

America

Furukawa Sangyo North America, Inc. (FSNA)

1922 The Alameda, Ste 205, San Jose, CA95126 United States of America
PIC: Mr. Ryuichi Jeffrey Nakayama
E-mail: fec.hyc@furukawaelectric.com
Tel: +1-408-496-0051 Ext. 104
