OFDM signal processor unit with backup system


This equipment is cannel amplifier of ISDB-T signal.

OFDM signal processor unit with backup system

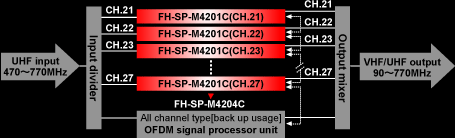

Application All channel type[back up usage] OFDM signal processor unit

Item Specifications
RF Input section Input signal ISDB-T
Input channel CH13 to 62[470 to 770MHz],1ch
Input level Typical 60dBµV [50 to 75dBµV]
Input connecter F[75Ω]
RF Output section Output signal ISDB-T
Number of output channel CH1 to 62[90 to 770MHz],1ch
Output level 85 to 100dBµV
Output connecter F[75Ω]
Power Supply/
Power Supply DC+24V [from sub-rack : FH-MF-1011A]
Dimensions SP:44.5[W]×400.0[D]×288.0[H]mm
Joint unit:44.5[W]×45.5[D]×278.0[H]mm
Mass SP:<3.0kg
Joint unit:<0.5kg
Current Use <250mA
