課金監視機能

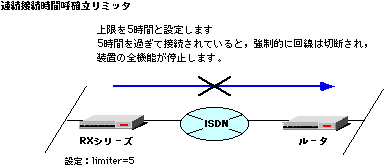

conf#isdn limiter=50 ←連続接続時間の上限を50時間と設定 conf#isdn ←設定内容を確認 dialcheck:off recvcheck:off sendcheck:off pppaccept:all multimode:off continuouslimiter:50(hour) congestiontimer:1(sec) loadsplitcheckinterval:300(sec) <1> 0311112222 retrytimes:8 idletimer:60(sec) target:Osaka <2> retrytimes:8 idletimer:60(sec) target:

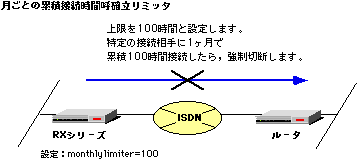

conf#target add name=Osaka dial=061231234 monthlylimiter=100 ←月ごとの累積時間の上限を100時間と設定 conf#target ←設定内容を確認 Osaka :061231234 nn monthlylimiter:100(hour),on dailylimiter:600(min),on continuouslimiter:600(min),on callinglimiter:40(times),on conf#

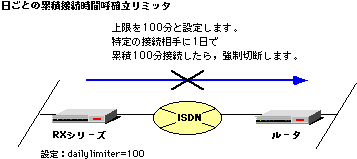

conf#target add name=Yokohama dial=0451231234 dailylimiter=100 ←日ごとの累積時間の上限を100分と設定 conf#target ←設定内容を確認 Yokohama :0451231234 nn monthlylimiter:240(hour),on dailylimiter:100(min),on continuouslimiter:600(min),on callinglimiter:40(times),on conf#
conf#target add name=Chiba dial=0431231234 continuouslimiter=100 ←相手ごとの連続接続時間の上限を100分と設定 conf#target ←設定内容を確認 Chiba :0431231234 nn monthlylimiter:240(hour),on dailylimiter:600(min),on continuouslimiter:100(min),on callinglimiter:40(times),on conf#

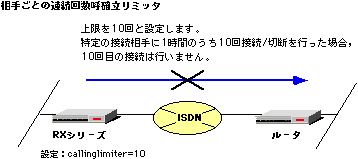

conf#target add name=Tokyo dial=031231234 callinglimiter=10 ←相手ごとの接続回数の上限を10回と設定 conf#target ←設定内容を確認 Tokyo :0312341234 nn monthlylimiter:240(hour),on dailylimiter:600(min),on continuouslimiter:600(min),on callinglimiter:10(times),on conf#
INFONET-RX20 Remote Router A V01.03 1998.04.15 WAN topology ( 6) 1998/04/22 13:10:48 ( 0 00:03:18) Super Mode 1. configuration display 2. configuration set (normal) 3. configuration set (expert) 4. operation 5. information 6. shift to super mode 7. exit from remote console or current mode Select the number. : 3 ←拡張設定へ *** Expert mode (configuration) menu *** 1. datalink 2. bridging 3. ICMP redirect 4. IP routing 5. TCP MSS 6. IPX routing 7. AppleTalk routing 8. SNMP 9. packet priority control 10. traffic logging 11. limitation of ISDN connection period 12. syslogd 13. mail inform Select the number. : 11 ←ISDN課金監視の設定へ
*** EXP.: limitation of ISDN connection period *** 1. consecutive time (all) 2. monthly total time 3. daily total time 4. consecutive time (target) 5. calling count Select the number: 1 <consecutive time parameter(s)> mode : on time(hour): 12 Do you change (y/n)? [n]:
*** EXP.: limitation of ISDN connection period *** 1. consecutive time (all) 2. monthly total time 3. daily total time 4. consecutive time (target) 5. calling count Select the number: 2 <monthly total time> limitations table of ISDN connection period (max 20 entries) no target action disc time(h) ---+--------------------------------+------+----+------- 1. Osaka on on 240 Do you change (y/n)? [n]:
*** EXP.: limitation of ISDN connection period *** 1. consecutive time (all) 2. monthly total time 3. daily total time 4. consecutive time (target) 5. calling count Select the number: 3 <daily total time> limitations table of ISDN connection period (max 20 entries) no target action disc time(min) ---+--------------------------------+------+----+--------- 1. Osaka on on 600 Do you change (y/n)? [n]:
*** EXP.: limitation of ISDN connection period *** 1. consecutive time (all) 2. monthly total time 3. daily total time 4. consecutive time (target) 5. calling count Select the number: 4 <consecutive time (target)> limitations table of ISDN connection period (max 20 entries) no target action disc time(min) ---+--------------------------------+------+----+--------- 1. Osaka on on 600 Do you change (y/n)? [n]:
*** EXP.: limitation of ISDN connection period *** 1. consecutive time (all) 2. monthly total time 3. daily total time 4. consecutive time (target) 5. calling count Select the number: 5 <calling count> limitations table of ISDN connection period (max 20 entries) no target action disc count(times) ---+--------------------------------+------+----+------------ 1. Osaka on on 40 Do you change (y/n)? [n]:
上記の課金監視機能のうち,連続接続時間呼確立リミッタ以外のリミッタでは,ISDN回線の接続時間または接続回数の累計が指定した時間/回数に達した場合にリミッタ機能が「作動」します(回線が切断されます)。また,接続時間の累計が,呼確立リミッタが作動する指定の時間/回数の90%に達したときは「警告」が出されます。
この時の「警告」が管理装置宛に電子メールで通知されます。
電子メール障害通知機能を利用するためには,以下の内容を設定しておく必要があります。
SysDescr : INFONET-RX20 Remote Router A V01.00 1998.06.018 IP Address : xxx.xxx.xxx.xxx Target Name : Tokyo Target ISDN Address : 03xxxxxxxx Limiter Mode : Month Current : 3250 Status : alert 90% Time : 1997/09/16(FRI) 12:52:23
conf#mailinform limiter=on err=err-admin@furukawa.co.jp conf#mailinform ←設定内容を確認 limiter:on erroraddress:err-admin@furukawa.co.jp
conf#mailtoaddr add addr=aaa@furukawa.co.jp conf#mailtoaddr add addr=bbb@furukawa.co.jp conf#mailtoaddr ←設定内容を確認 1:aaa@furukawa.co.jp 2:bbb@furukawa.co.jp
conf#mailserver add 1 addr=192.168.1.100 conf#mailserver ←設定内容を確認 1:192.168.1.100 conf#
*** Expert mode (configuration) menu *** 1. datalink 2. bridging 3. ICMP redirect 4. IP routing 5. TCP MSS 6. IPX routing 7. AppleTalk routing 8. SNMP 9. packet priority control 10. traffic logging 11. limitation of ISDN connection period 12. syslogd 13. mail inform Select the number. : 13 ←電子メール障害通知の設定へ *** EXP.: Set Mail inform configuration menu *** 1. motion parameter(s) 2. to address 3. mail server Select the number. : 1 ←電子メール障害通知を行うかどうか *** EXP.: Set Mail inform motion parameters configuration ***limiter mail inform: off error mail address : Do you change (y/n)? [n]: y limiter mail inform (1:on 2:off) [2]: 1 ←電子メール障害通知を行う error mail address [] : err-admin@furukawa.co.jp EXP.: Mail inform motion parameter(s) are set to the following values. limiter mail inform: on error mail address : err-admin@furukawa.co.jp Set OK (y/n)? [y]:
*** EXP.: Set Mail inform configuration menu *** 1. motion parameter(s) 2. to address 3. mail server Select the number. : 2 ←メール送信先の登録 *** EXP.: Set Mail inform to address list configuration *** 1. change 2. delete 3. add 4. display 5. end Select the number. [5]: 4 <Mail inform to address table (max 5 entries)> no entry. *** EXP.: Set Mail inform to address list configuration *** 1. change 2. delete 3. add 4. display 5. end Select the number. [5]: 3 <Add Mail inform to address data> mail address [] : aaa@furukawa.co.jp Mail inform to address data: no mail address ---+---------------------------------------------------------------- 1. aaa@furukawa.co.jp Add OK (y/n)? [y]: *** EXP.: Set Mail inform to address list configuration *** 1. change 2. delete 3. add 4. display 5. end Select the number. [5]:
*** EXP.: Set Mail inform configuration menu *** 1. motion parameter(s) 2. to address 3. mail server Select the number. : 3 ←メールサーバの登録 *** EXP.: Set Mail inform mail server configuration *** <Mail inform mail server table (max 3 entries)> no. mail server address --+-------------------- 1. ---.---.---.--- 2. ---.---.---.--- 3. ---.---.---.--- 1. change 2. delete 3. end Select the number. [3]: 1 <Change Mail inform mail server table data> Select the entry number. : 1 Selected Mail inform mail server table data: no. mail server address --+-------------------- 1. ---.---.---.--- mail server address []: 192.168.1.100 Mail inform mail server table data: no. mail server address --+-------------------- 1. 192.168.1.100 Change OK (y/n)? [y]: *** EXP.: Set Mail inform mail server configuration *** <Mail inform mail server table (max 3 entries)> no. mail server address --+-------------------- 1. 192.168.1.100 2. ---.---.---.--- 3. ---.---.---.--- 1. change 2. delete 3. end Select the number. [3]: *** EXP.: Set Mail inform configuration menu *** 1. motion parameter(s) 2. to address 3. mail server Select the number. :
