Overview

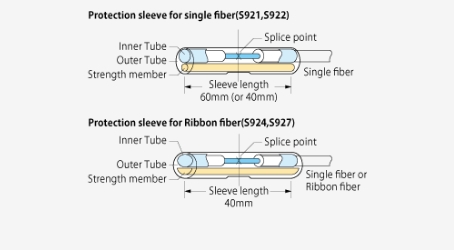

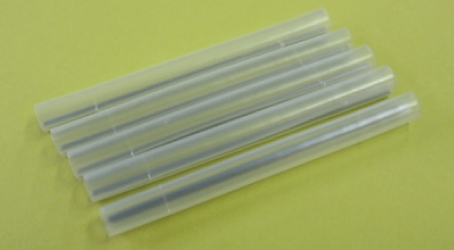

The protection sleeves are used for to protect the splice points.
Reinforcing by an internal member made of stainless steel or ceramics , it prevents to apply the bending at splice points.
Lineup
| Model | Applicable fiber | Recommended cleave length |
Length | Material of Strength member |
Quantity |
|---|---|---|---|---|---|
| S921 | Single fiber, 0.25-0.9mm coating diameter | 16mm | 60mm | Stainless steel |
25 pcs per pack |
| S921DC | Drop/Indoor cable | 16mm | 60mm | Stainless steel |
25 pcs per pack |
| S922 | Single fiber, 0.25-0.9mm coating diameter | 10mm | 40mm | Stainless steel |
25 pcs per pack |
| S924 | Single fiber and up to 8-fiber ribbon | 10mm | 40mm | Quartz | 25 pcs per pack |
| S924F | 12-fiber ribbon (Flat ribbon) | 10mm | 40mm | Quartz | 25 pcs per pack |
| S927A | Single fiber and up to 8-fiber ribbon | 10mm | 40mm | Ceramic | 25 pcs per pack |
| S927B | Single fiber and up to 12-fiber ribbon (Flat ribbon) | 10mm | 40mm | Ceramic | 25 pcs per pack |
| S927R | 12-fiber ribbon | 10mm | 40mm | Ceramic | 25 pcs per pack |
| S928A-20 | Single fiber 0.25-0.4mm coating diameter | 5mm | 20mm | Stainless steel |
100 pcs per pack |
| S928A-25 | 7mm | 25mm | Stainless steel |
100 pcs per pack |
|
| S928A-35 | 10mm | 35mm | Stainless steel |
100 pcs per pack |
