PFS / PFD can be used as exposed outdoor piping for solar power facilities, as well electrical equipment and infrastructure projects such as railways, roads, and bridges.
PFD is available in 6 size and 3 colors, and PFS is available in 7 sizes. PFD is versatile and workable, making it easy to install.
Suitable for a wide range of applications, from general architecture to plants and Solar Power.

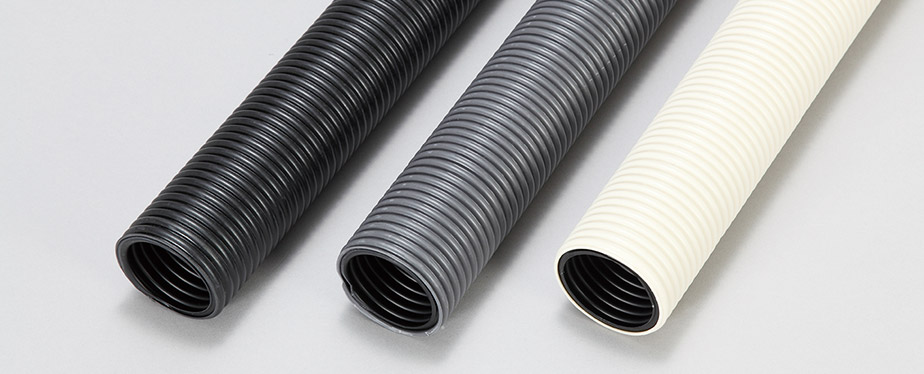

About PLAFLEKY PFS / PFD
PLAFLEKY PFD
Item No. High quality black | Length(m) | Weight / coil (kg) |
---|---|---|
PFDK-16 | 50 | 9 |
PFDK-22 | 50 | 15 |
PFDK-28N | 30 | 8 |
PFDK-36N | 20 | 8 |
2 new sizes available for larger cables.

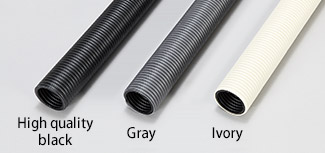

Item No. Gray | Item No. Ivory | Item No. High quality black | Length (m) | Weight / coil (kg) |
---|---|---|---|---|
PFD-42 | PFDI-42 | PFDK-42 | 10 | 5.0 |
PFD-54 | PFDI-54 | PFDK-54 | 10 | 6.2 |
PLAFLEKY PFS
Item No. | Length (m) | Weight / coil (kg) |
---|---|---|
PFS-14 | 50 | 4 |
PFS-16 | 50 | 4 |
PFS-22 | 50 | 6 |
PFS-28 | 30 | 4 |
PFS-36 | 30 | 6 |
PFS-42 | 30 | 7 |
PFS-54 | 30 | 10 |
Advantages of PFS / PFD
Strong but light
Furukawa's unique structure makes it very flexible, and it can be bent by hand, making piping work easy.Especially, PFD-42 54 is very easy to bend with the smallest bending radius being three times the inner diameter of the pipe.
Long and easy to bend
It is lightweight and easy to carry, and because of its long length, it can reduce the number of parts used and save labor.
Easy to cut with knife
Easy cutting and connectable with a push-in connection fitting.
Resistant to climate change
PFD has been demonstrated to be superior in durability due to its double structure and to be highly weatherproof for approximately 30 years (PFD: black type) in accelerated exposure tests.
Waterproof specifications
Excellent waterproof fitting system prevents water from entering.
Installation
-

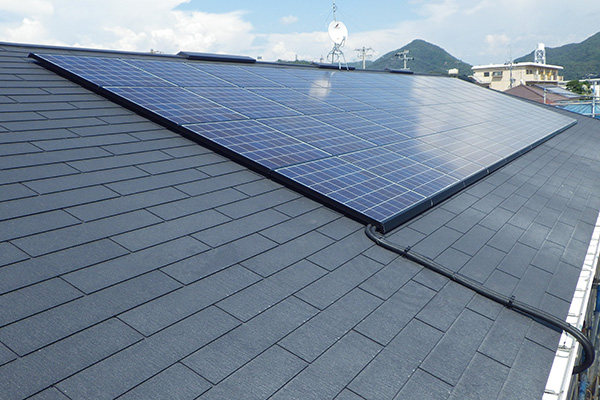

Detached house photovoltaic system
Subtle appearance.
-

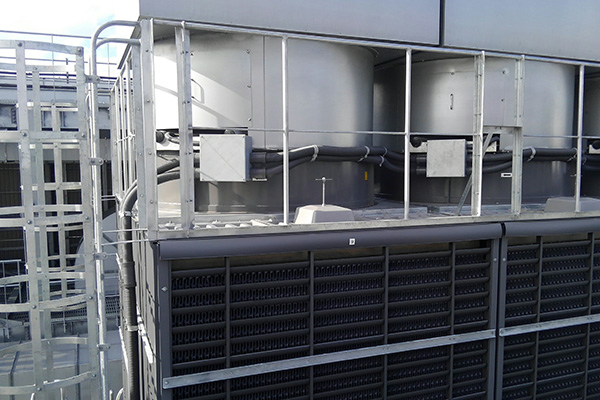

Building Equipment
Around the Equipment of General Buildings
Resistant to changes in the external environment caused by wind, vibration, and ultraviolet rays, enabling installation outdoors
-

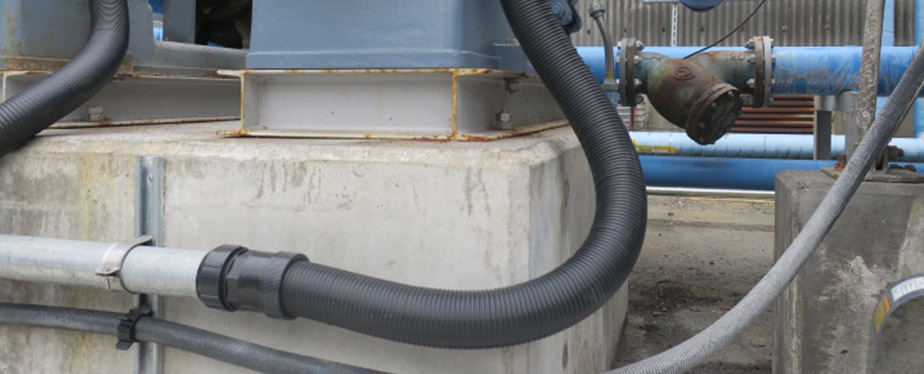

Plant equipment
Lightweight and easy to bend, enabling construction in tight spaces
-

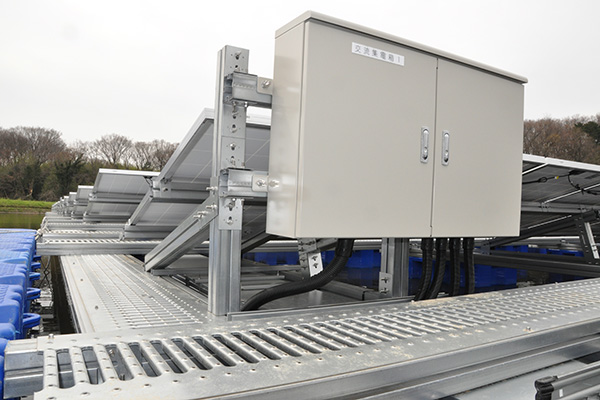

Solar power generation facility
Around the equipment of the solar power generation facility
Resistant to changes in the external environment caused by wind, vibration, and ultraviolet rays, enabling installation outdoors
-

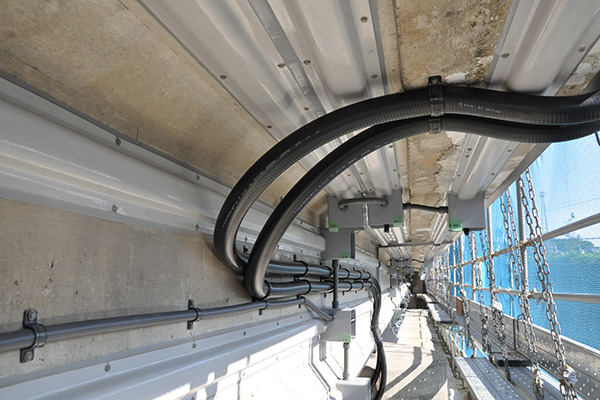

Roads and Bridge sections
Road and Bridge section wiring
Because it does not rust, it can be installed in salt-damaged areas.
-

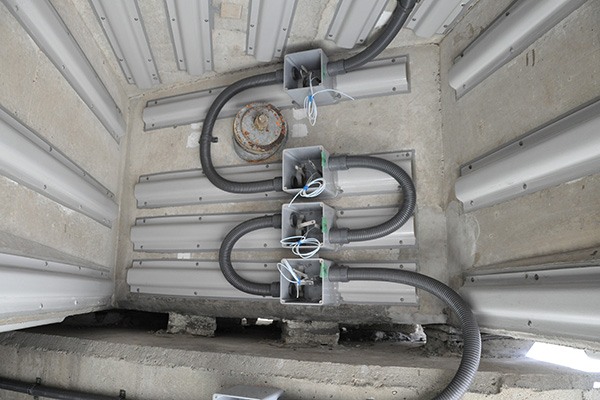

Road and Bridge Section
Bridge Section Wiring
Lightweight and easy to bend, enabling construction in tight spaces
