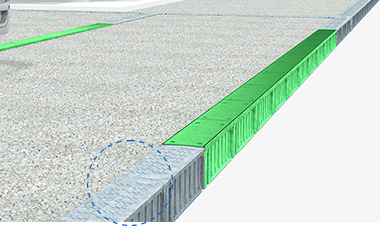

Compared to equivalent concrete troughing systems, Green Trough Vehicle Rated is 3 times lighter.

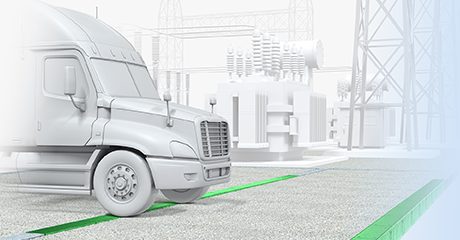

Green Trough Vehicle Rated provides outstanding vehicle load rating at any point. It is designed and tested to exceed industry standards, and with an unmatched strength to weight ratio, Furukawa's Green Trough Vehicle Rated reduces installation costs and is the safer cable trench choice.

Green Trough
Vehicle Rated		 Concrete Trough
Body 15kg 70kg
Lid 23kg 36kg
Combined 38kg 106kg

(note) Size is based on 430C

Green Trough Cable Management Systems

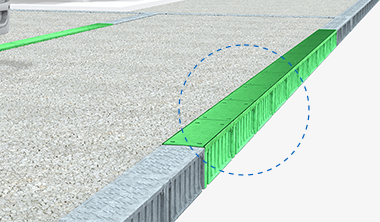

Green Trough perfectly fit with Green Trough Vehicle Rated

Top of Page

Size

Series Dimension (mm (inch)) Weight (kg (lbs))
A B C D L Base Lid Total
200B 200
(7.9)		 270
(10.6)		 185
(7.3)		 259
(10.2)		 1000
(39.4)		 20
(44.1)		 17
(37.5)		 37
(81.6)
300B 300
(11.8)		 390
(15.4)		 175
(6.9)		 267
(10.5)		 1000
(39.4)		 26
(57.3)		 30
(66.1)		 56
(123.5)
430C 450
(17.7)		 540
(21.3)		 255
(10.0)		 363
(14.3)		 500
(19.7)		 20
(44.1)		 23
(50.7)		 43
(94.8)

Top of Page

How to use

Install the trough body so that the top surface is level with the ground.

The lid can be installed by 2 people.
Use a manhole lifter to position the lid in the trough body.

Secure in place with included bolts.

Top of Page

Engineering

Green Trough Vehicle Rated is manufactured using galvanized zig zag grating process that combines recycle polymer with an advanced reinforcement, creating a strong, lightweight cover that is durable under demanding loads and can be removed without heavy lifting equipment.

Top of Page

Key Benefits

  • Strong (H20, HS20)
  • Connects to Green Trough
  • Interlocking lids
  • 2-4 Degrees of Flexibility
  • Flame Resistant
  • Simple Installation and access
