标准型的TEX-E是可焊锡，由古河电工自主开发的变性聚酯耐热树脂被膜和聚酰胺树脂被 膜组成的拥有3层绝缘层的绝缘绕组电线。

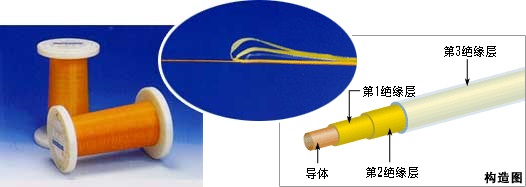

构造图
线材尺寸
| 导体直径 (mm) |
公差 (mm) |
标称成品外径 (mm) |
最大成品外径 (mm) |
最大导体电阻 at 20℃ (Ω/km) |
产品重量 (kg/km) |
|---|---|---|---|---|---|
|
0.20
|
±0.008
|
0.400
|
0.417
|
607.6
|
0.398
|
|
0.21
|
±0.008
|
0.410
|
0.427
|
549.0
|
0.431
|
|
0.22
|
±0.008
|
0.420
|
0.437
|
498.4
|
0.465
|
|
0.23
|
±0.008
|
0.430
|
0.447
|
454.5
|
0.500
|
|
0.24
|
±0.008
|
0.440
|
0.457
|
416.2
|
0.537
|
|
0.25
|
±0.008
|
0.450
|
0.467
|
382.5
|
0.575
|
|
0.26
|
±0.010
|
0.460
|
0.477
|
358.4
|
0.616
|
|
0.27
|
±0.010
|
0.470
|
0.487
|
331.4
|
0.656
|
|
0.28
|
±0.010
|
0.480
|
0.497
|
307.3
|
0.697
|
|
0.29
|
±0.010
|
0.490
|
0.507
|
285.7
|
0.742
|
|
0.30
|
±0.010
|
0.500
|
0.520
|
262.9
|
0.786
|
|
0.32
|
±0.010
|
0.520
|
0.540
|
230.3
|
0.882
|
|
0.35
|
±0.010
|
0.550
|
0.570
|
191.2
|
1.033
|
|
0.37
|
±0.010
|
0.570
|
0.590
|
170.6
|
1.143
|
|
0.40
|
±0.010
|
0.600
|
0.625
|
145.3
|
1.316
|
|
0.45
|
±0.010
|
0.650
|
0.675
|
114.2
|
1.633
|
|
0.50
|
±0.010
|
0.700
|
0.725
|
91.43
|
1.985
|
|
0.55
|
±0.020
|
0.750
|
0.775
|
78.15
|
2.371
|
|
0.60
|
±0.020
|
0.800
|
0.825
|
65.26
|
2.793
|
|
0.65
|
±0.020
|
0.850
|
0.875
|
55.31
|
3.249
|
|
0.70
|
±0.020
|
0.900
|
0.925
|
47.47
|
3.741
|
|
0.75
|
±0.020
|
0.950
|
0.975
|
41.19
|
4.267
|
|
0.80
|
±0.020
|
1.000
|
1.030
|
36.08
|
4.829
|
|
0.85
|
±0.020
|
1.050
|
1.080
|
31.87
|
5.425
|
|
0.90
|
±0.020
|
1.100
|
1.130
|
28.35
|
6.056
|
|
0.95
|
±0.020
|
1.150
|
1.180
|
25.38
|
6.721
|
|
1.00
|
±0.030
|
1.200
|
1.230
|
23.33
|
7.422
|
(参考值)
注意：在这里记载的特性值都是参考值，有时与规格数据有所不同
