TEX-ELZ is the wire organized by litz conductor and triple insulation layers for high frequency applications.

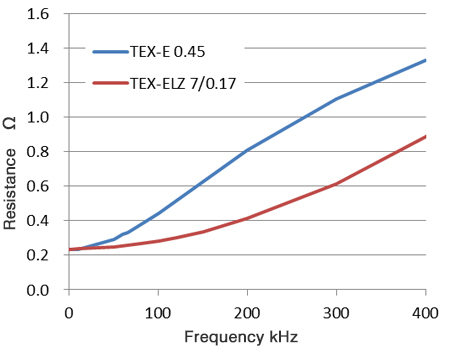

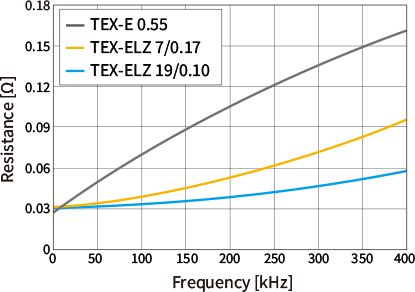

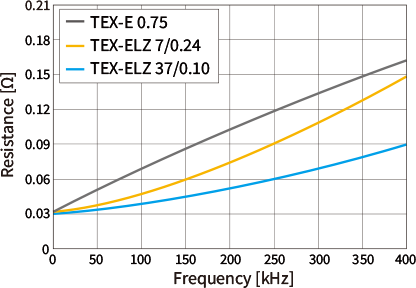

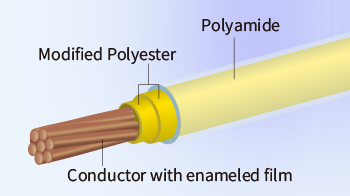

Structure
Dimensions
| Nominal conductor diameter (mm) |
Typical overall diameter (mm) |
Maximum overall diameter (mm) |
Maximum conductor resistance (Ω/km) |
Unit Weight (kg/km) |
|---|---|---|---|---|
| 7/0.10 | 0.524 | 0.580 | 346.9 | 0.679 |
| 7/0.11 | 0.554 | 0.610 | 285.2 | 0.797 |
| 7/0.12 | 0.590 | 0.650 | 238.4 | 0.931 |
| 7/0.13 | 0.620 | 0.680 | 202.4 | 1.069 |
| 7/0.14 | 0.650 | 0.710 | 173.8 | 1.217 |
| 7/0.15 | 0.680 | 0.740 | 151.1 | 1.375 |
| 7/0.16 | 0.716 | 0.770 | 132.4 | 1.550 |
| 7/0.17 | 0.746 | 0.800 | 117.0 | 1.728 |
| 7/0.18 | 0.776 | 0.830 | 104.2 | 1.917 |
| 7/0.19 | 0.806 | 0.860 | 93.34 | 2.115 |
| 7/0.20 | 0.836 | 0.890 | 84.10 | 2.323 |
| 7/0.21 | 0.866 | 0.920 | 76.18 | 2.541 |
| 7/0.22 | 0.896 | 0.950 | 69.96 | 2.769 |
| 7/0.23 | 0.932 | 0.990 | 63.91 | 3.017 |
| 7/0.24 | 0.962 | 1.020 | 58.61 | 3.265 |
| 7/0.25 | 0.992 | 1.050 | 53.94 | 3.523 |
| 7/0.26 | 1.022 | 1.080 | 49.81 | 3.792 |
| 7/0.27 | 1.052 | 1.110 | 46.13 | 4.070 |
| 7/0.28 | 1.082 | 1.140 | 42.85 | 4.358 |
| 7/0.29 | 1.112 | 1.170 | 39.91 | 4.656 |
| 7/0.30 | 1.148 | 1.200 | 37.01 | 4.976 |
(Reference Values)
Note: All the above values are shown just for reference and may differ slightly from batch to batch.
