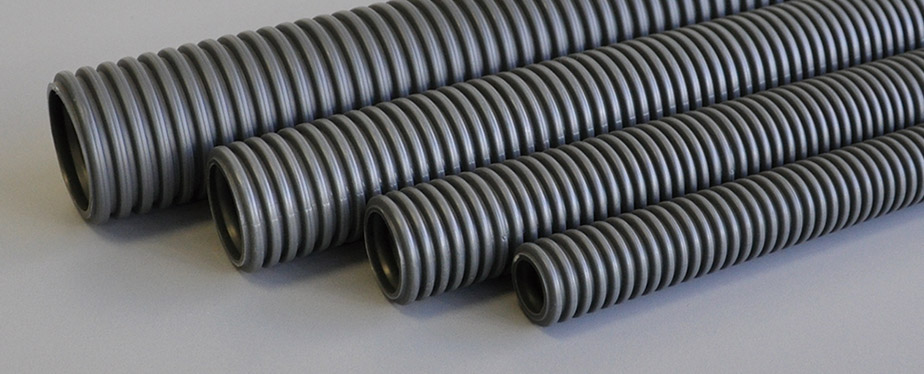

PLAFLEKY TOUGHST is an innovative pipe that combines the advantages of PFS-tube and steel conduit.
Excellent straightness and good appearance during exposed piping, and more than 2.5 times stronger than PFS pipes.
In addition, all parts for PFS pipes can be used, so piping can be combined with PFS pipes to suit the construction environment.
About PLAFLEKY TOUGHST
- Tough pipe equivalent or superior to steel pipe.
- Straight pipes that can be bent.
- 2.5m straight pipe packaged in a box, which can be loaded in vans or elevators.
PLAFLEKY TOUGHST
| Item No. Gray | Item No. Ivory | Length (m) | Weight / piece (kg) |
|---|---|---|---|
| PFT-16 | PFTI-16 | 2.5 | 0.4 |
| PFT-22 | PFTI-22 | 2.5 | 0.55 |
| PFT-28 | PFTI-28 | 2.5 | 0.75 |
| PFT-36 | PFTI-36 | 2.5 | 1.0 |
PLAFLEKY TOUGHST L
| Item No. Gray | Item No. Ivory | Length (m) | Weight / piece (kg) |
|---|---|---|---|
| PFTL-42 | PFTLI-42 | 2.5 | 1.4 |
| PFTL-54 | PFTLI-54 | 2.5 | 1.75 |
Advantages of PLAFLEKY TOUGHST
Straight and Strong
It features excellent straightness and good aesthetics in exposed piping.
and also extremely strong, more than 2.5 times that of PFS tubes.
Light and easy to bend
It is lighter and safer, weighing approximately 1/3 than steel pipes. In addition, it is easier to cut and bend than steel pipes, and produces no flames, sparks, chips, or noise. Bonding is also not required.
Easy to cut with knife
It is easier to cut and bend than steel pipes, and produces no sparks, chips or noise.
Resistant to rust
It does not rust, and it's resistant to chemicals and oils, and is also to corrosion and durability. It can be also self-extinguishing.
Resistant to temperature changes
The change in length due to temperature change is very slight, and temperature expansion and contraction measures like other resin pipes are not required.
Parts of PFS / PFD can be used
All PFS/PFD components can be used, allowing for aesthetically superior plumbing with PFS/PFD.
Installation
-
Plant

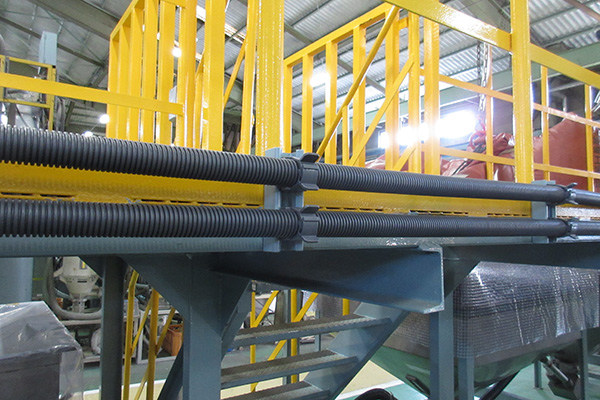

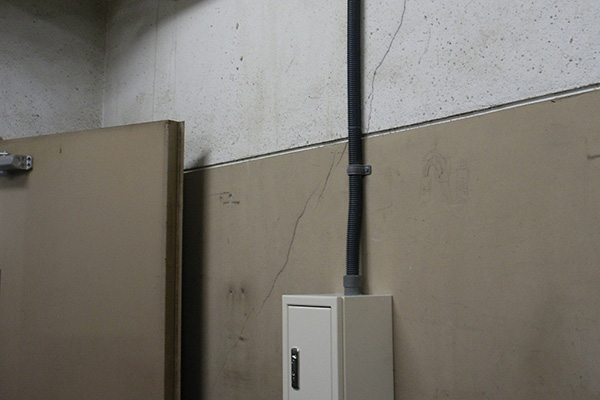

Enclosed piping in a warehouse
Excellent straightness and aesthetics
-
Plant

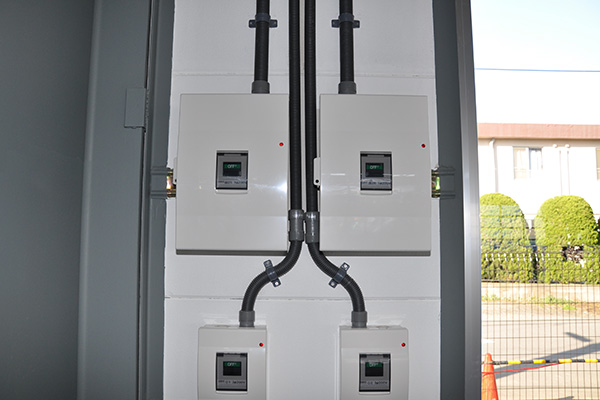

Around a power distribution board
Can be installed in conjunction with a PLAFLEKY
-
Commercial facilities

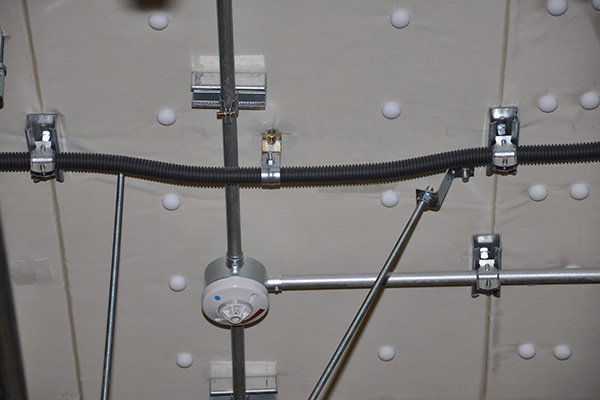

Exposed piping for ceiling
Lightweight and safe construction even for work at high altitudes
-
Commercial facilities

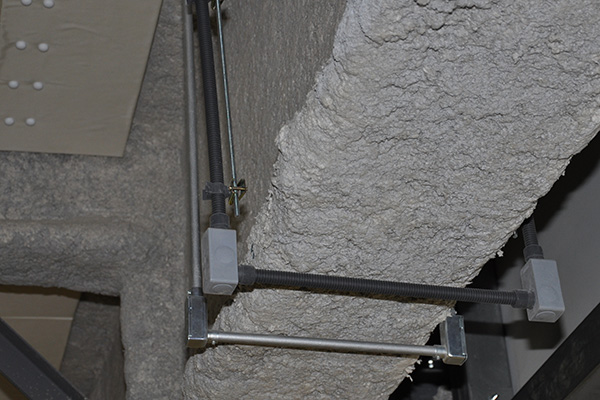

Exposed piping in the beam section
It can be installed in accordance with the location.
-
Plant

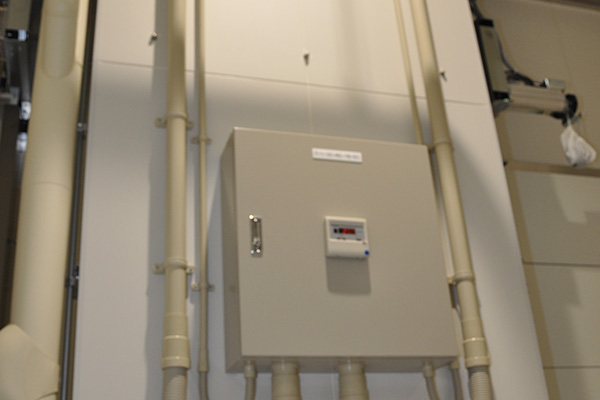

Around switchboard
Resistant to impact. Ideal for use in factories.
-
Plant
Enclosed piping in the warehouse
Excellent straightness and aesthetics
