Available in 5 sizes, with a range of innovative accessories, EFLEX Square is an incredibly versatile system which enables simple and fast installation of buried cable routes.
Movie

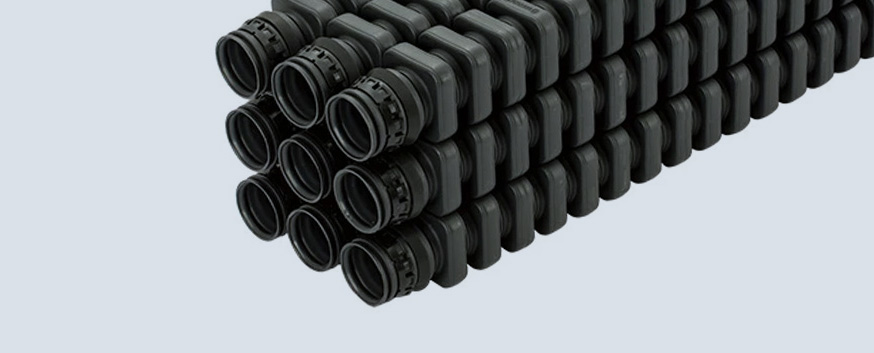

The stackable units are supplied in 5.3m lengths with built-in male and female push-fit watertight connectors.
EFLEX Square
Aqua Square (Joint)
Used to connect cut ends of EFLEX Square, when adjusting length.
- Non-woven expanding material for a moistureactivated watertight seal
- Single action locking clips for a quick and secure connection
- No tools required
Cable Installation Test
Size

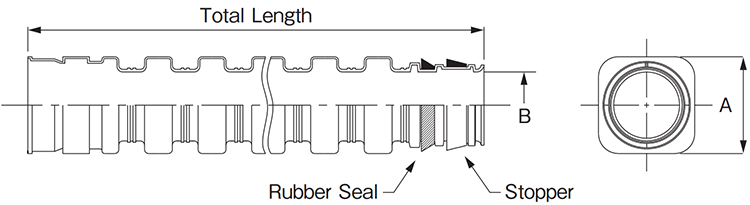

| Series | A: Outer Diameter (mm) |
B: Inner Diameter (mm) | Total Length (mm) | Effective Length (mm) |
|---|---|---|---|---|
| 50 | 73 | 50 | 5,300 | 5,250 |
| 75 | 99.5 | 75 | ||
| 100 | 125 | 100 | ||
| 130 | 162 | 130 | ||
| 150 | 184 | 150 |
Advantages of EFLEX Square

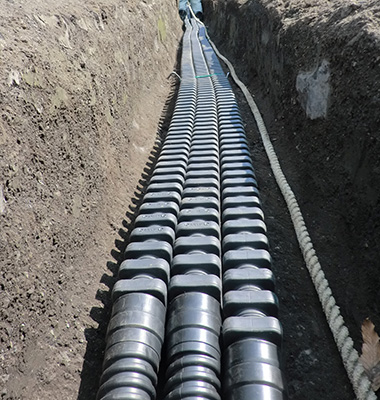

Compact Stacking

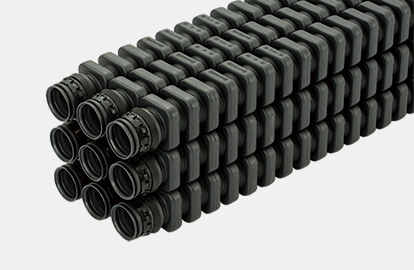

- A stable stack can be created.

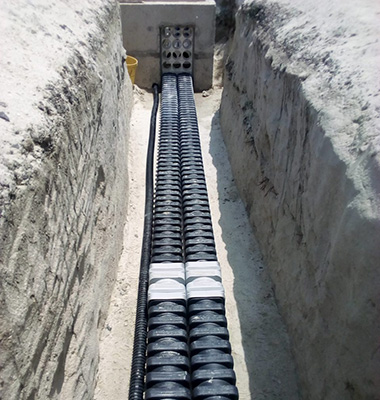

- Entire stack is backfilled at once.
- Space saving.

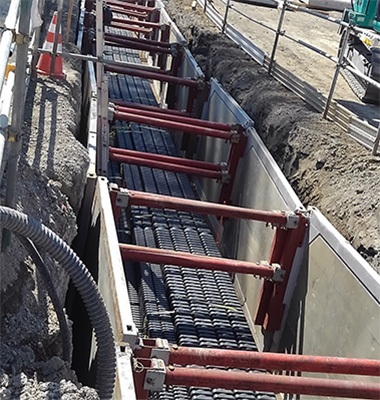

- Amount of digging can be reduced due to stacking compactly.
It doesn’t need bend units due to its flexible.
Easy to use
- Flexible
- 5.3m length allow for reduced processing.
- Single-action connection.
- Internal smoothness (easy cable installation)
Strong and Resistant
- High compression strength (Appendix 3,JIS C 3653)
- High fire-resistant(Appendix 3,JIS C 3653)
- Connector part is applied to IP67(IEC-60529)
Applicable parts
- Huge range of innovative accessories to enable fast installation and interface with other duct types.
- Can be connected to EFLEX Coil and EFLEX Straight.
- Basically, part of connection is all watertight.
- ”Aqua Series” have watertight connection with a moisture-activated expanding fabic lining. Without some tapes and putty, it’s very easy to install.
-

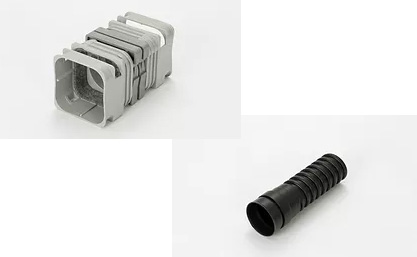

Aqua Series

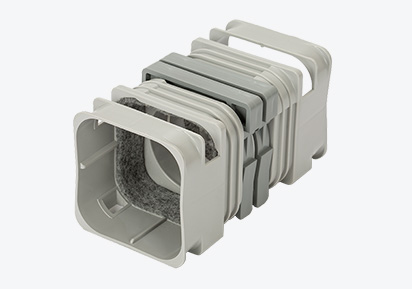

Aqua SquareCreates a watertight connection between two cut pieces of EFLEX Square.
It is possible to change length of EFLEX Square again and again till inserting locking clips.
It is applied to IP67(IEC-60529)
-
Aqua Series

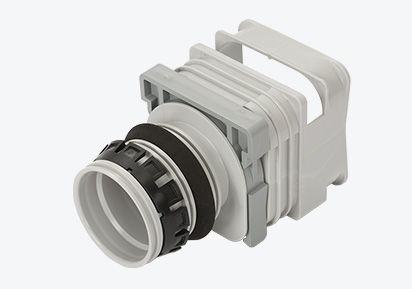

Aqua Square male adaptorTo connect a cut end of EFLEX Square to a female connector
-

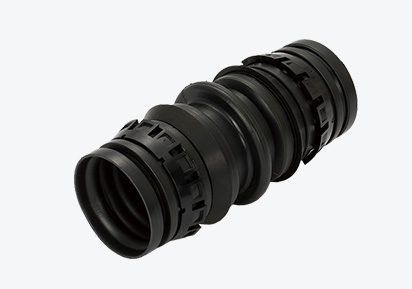

Male to male adaptorUsed to connect two EFLEX Square female connectors.
Because extra pieces can be used efficiently, it is economical to reduce loss of conduits.
-

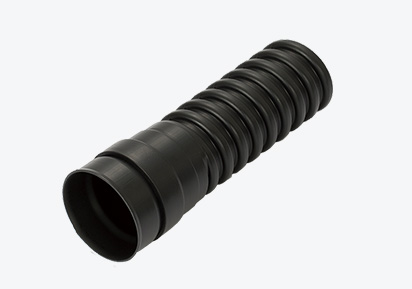

Converter to EFLEX CoilAllows connection to a wide range of accessories including the AQUA Connector
-

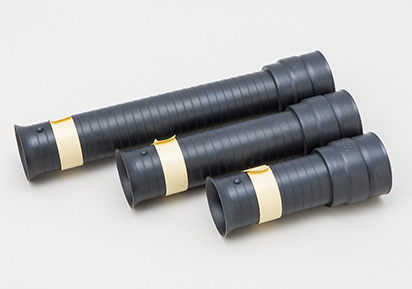

Long Bell MouthFor connecting to chambers. Available in 3 lengths. Built-in female connectors.
-

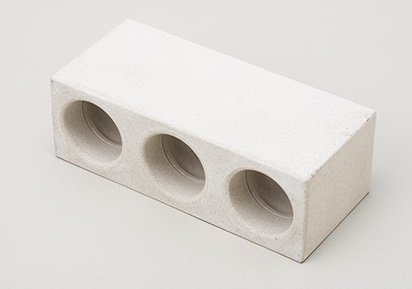

Bell BlockFor connecting to chambers. Available in 1, 2, 3, 4, 5, 6 and 9-way profiles. Built-in female connectors

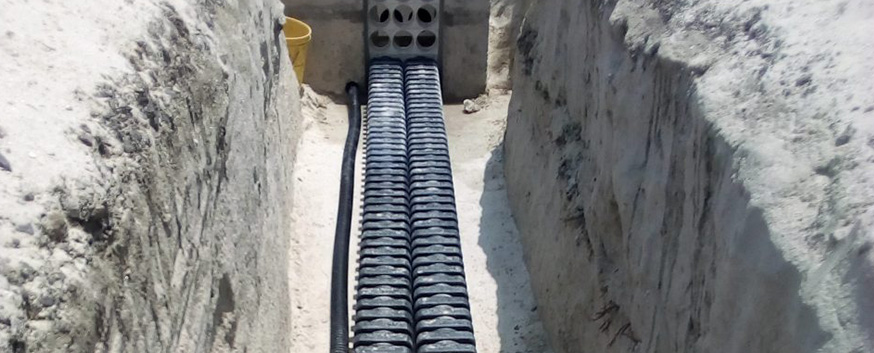

Installation
-

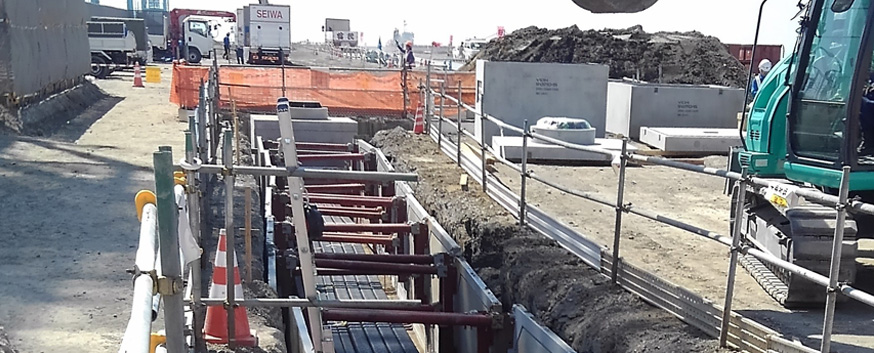

Highway
Can be connected to EFLEX. -

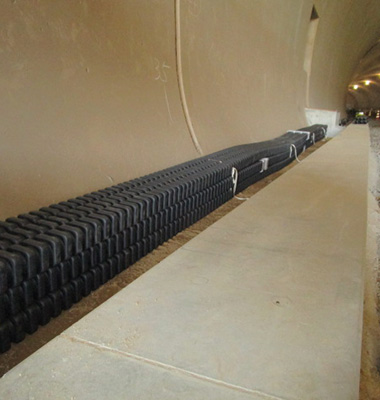

Tunnel

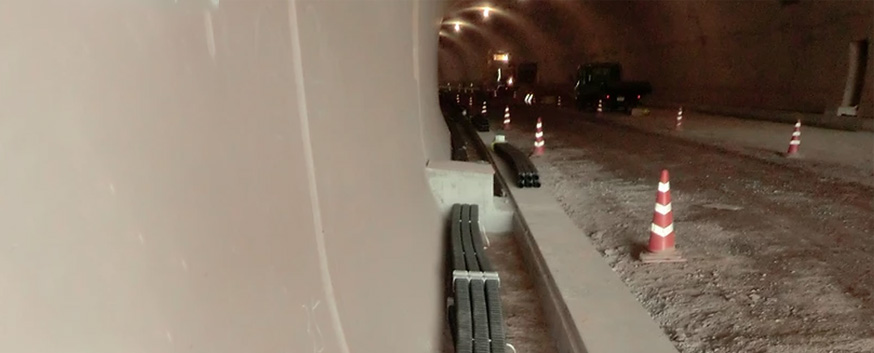

Can be installed in areas with limited space.
-
Port

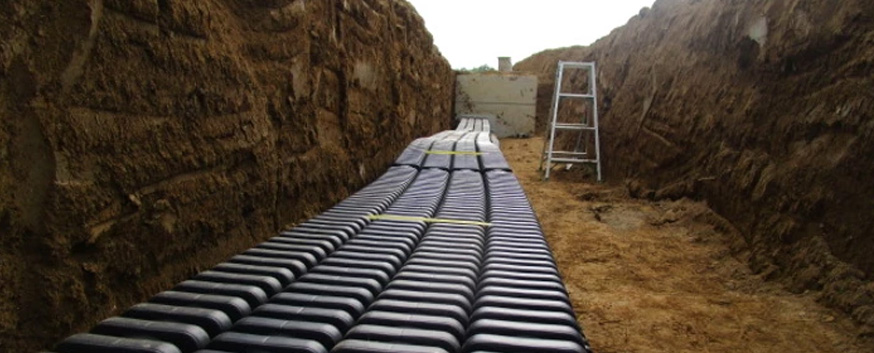

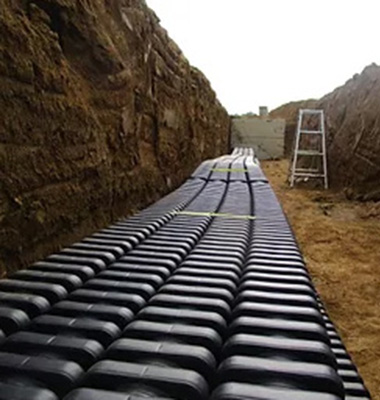

Due to the 5.3m length it is possible to install in areas with many obstructions.
-
Factory
Neatly Manage cable routes in small spaces.
-

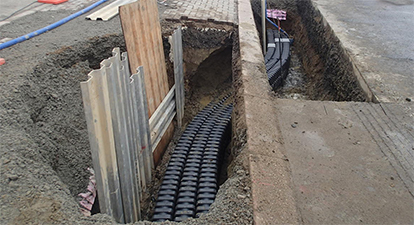

Bridge

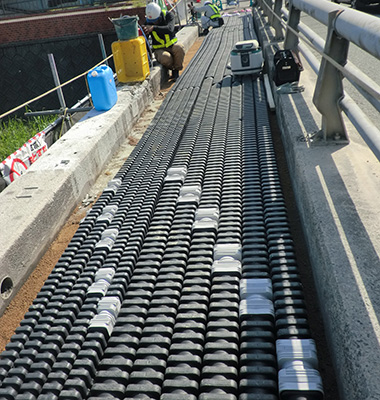

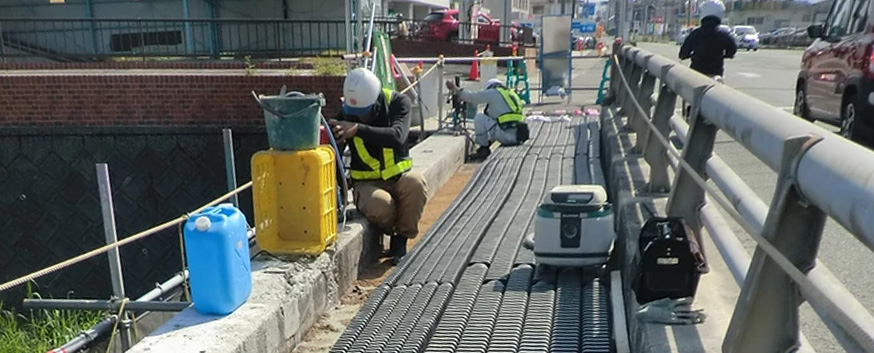

Can be installed with limited space next to roads.
-
Port
EFLEX Square is supplied in straight units.
