Advantages of GREEN TROUGH

Furukawa GREEN TROUGH offers the most innovative, environmentally friendly and state-of-the art solution to cable route management.

Lightweight
Intuitive joint
Secure lid
Load bearing
Impact resistant
Flame resistant
Extremely durable
Processing

Lightweight

Approximately 70% lighter on average than conventional concrete alternatives.

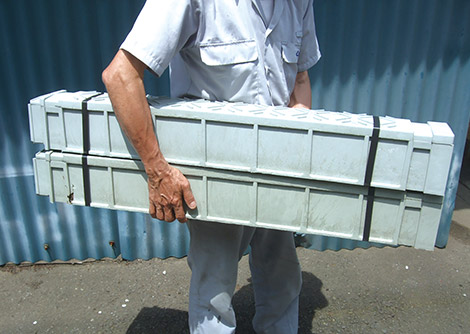

GREEN TROUGH can be installed by human power and carried easily.

Size			G90	G135	150B	200B	300B	430C
GREEN TROUGH	Main body		4	6	8	14	16	15
	Lid		3	4	5	7	11	9
	Total (kg)		7 (1m)	10 (1m)	13 (1m)	21 (1m)	27 (1m)	24 (0.5m)
JIS concrete trough	Main body		16	10	16	26	36	70
	Lid		10	11	14	18	26	36
	Total (kg)		26 (1m)	21 (0.5m)	30 (0.5m)	44 (0.5m)	62 (0.5m)	106 (0.5m)

Intuitive joint

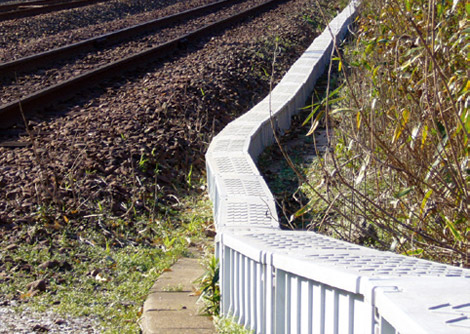

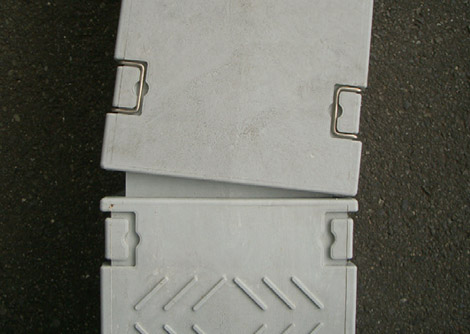

Joint system allows for minor obstacles to be avoided without the need for 45 degree units. A radius of 13-15 m (Left and Right) can be created by using only straight units.
Straights, 45 degree angle trough, gradients and T-junctions all available in 6 sizes, together with accessories and an elevated system to meet any requirement.

Secure lid

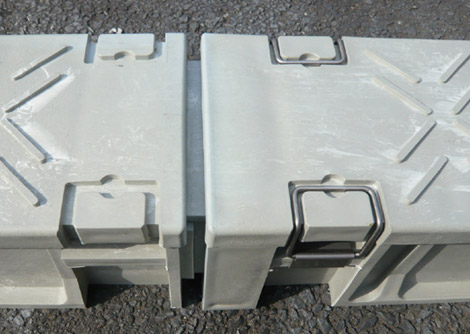

GREEN TROUGH reliably prevents lid movement as a result of tilting, vibration, and wind.

3 types of lid fixation

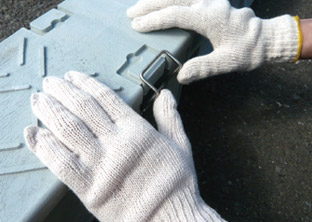

Clasp

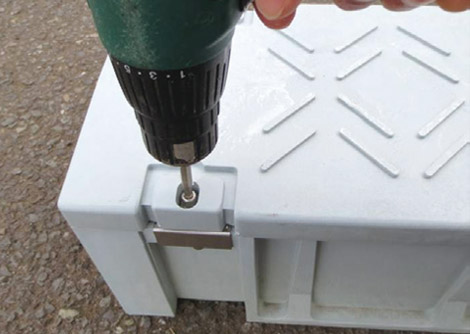

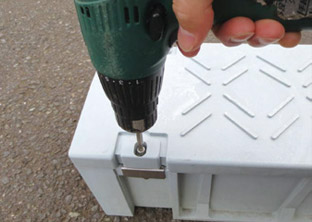

Screw

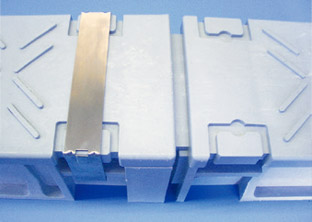

Band

Load bearing

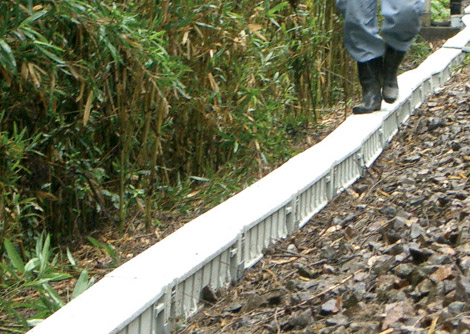

It is possible to walk on GREEN TROUGH.

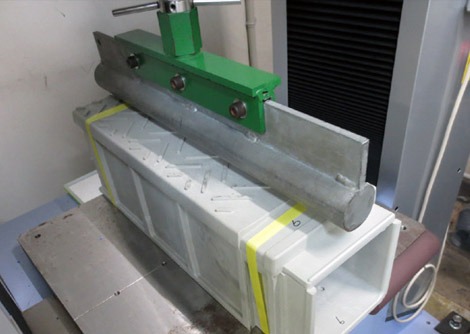

Withstands 4.9 kN/500 mm.

Impact resistant

GREEN TROUGH sustains only minor damage when dropped from a height of 0.7 m.
GREEN TROUGH can still be used even if dropped during installation as it receives no structural damage.

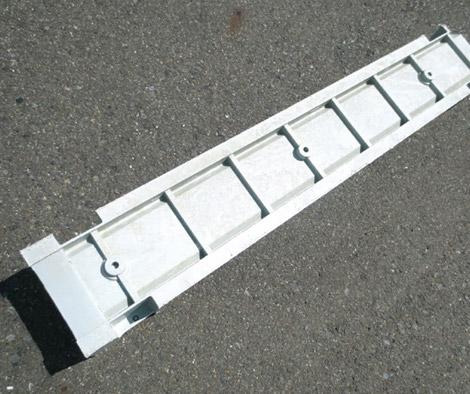

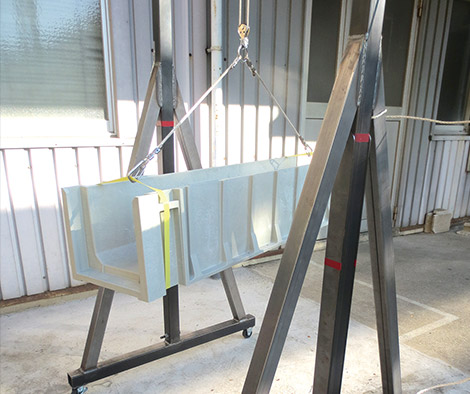

After a free fall test

Flame resistant

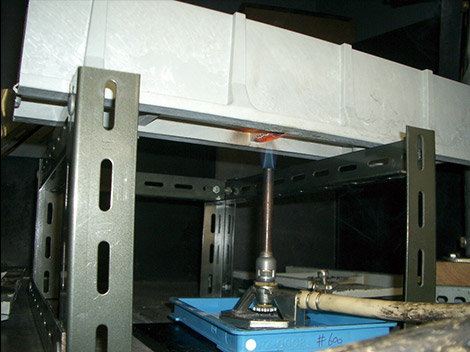

GREEN TROUGH will self extinguish in under 60 seconds after flame source is removed.

* The confirmation method is based on JESC E7003.
Non-halogen.

Extremely durable

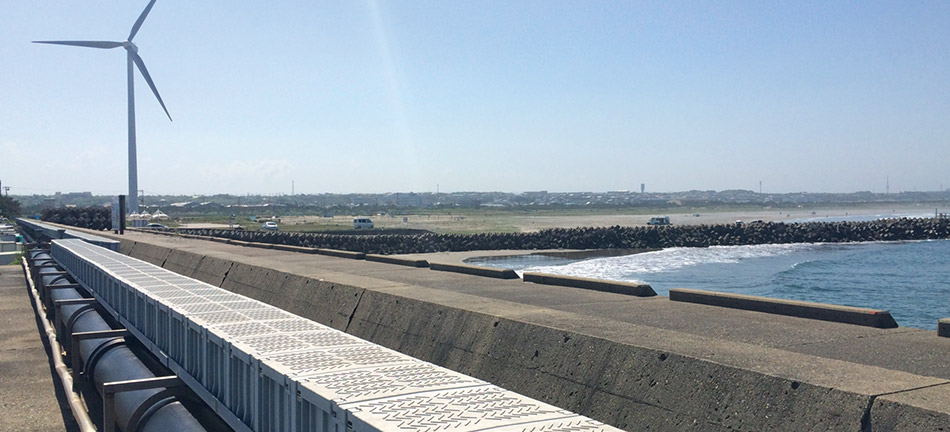

Resistant to salt damage and snow melting agents.
Excellent weather resistance.
Equivalent to 50 years in compliance with our original accelerated UV test.

Processing

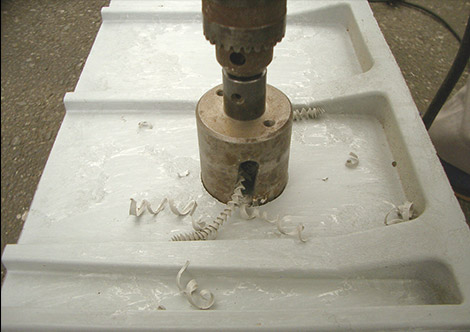

Significantly reduces labour time. GREEN TROUGH can be easily manually handled, installed and processed using basic hand tools. Overall ‘installed cost’ is reduced when compared with concrete alternatives.

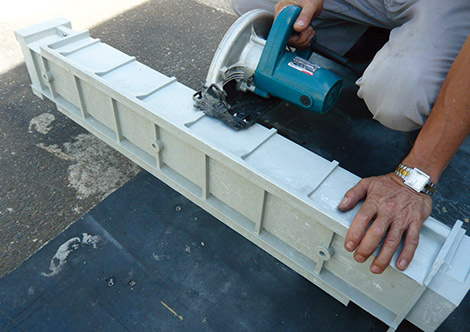

Possible to cut GREEN TROUGH for adjustment.
