Used for straight route.
Joint system allows for minor obstacles to be avoided without the need for 45 degree bend units.
Size

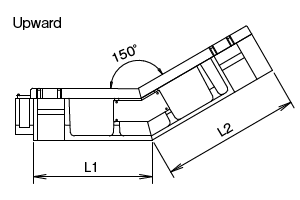

Upward
| Size | L1 (mm) | L2 (mm) | Weight (kg) | Screwtype | Clasptype | Bandtype |
|---|---|---|---|---|---|---|
| G90 series | 300 | 350 | 4 | － | － | ＋ |
| G135 series | 300 | 350 | 7 | － | － | ＋ |
| 150B series | 300 | 350 | 8 | ＋ | ＋ | ＋ |
| 200B series | 200 | 250 | 10 | ＋ | ＋ | ＋ |
| 300B series | 200 | 250 | 13 | ＋ | ＋ | ＋ |
| 430C series | 200 | 250 | 17 | ＋ | ＋ | ＋ |

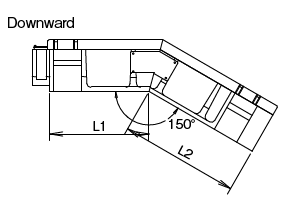

Downward
| Size | L1 (mm) | L2 (mm) | Weight (kg) | Screwtype | Clasptype | Bandtype |
|---|---|---|---|---|---|---|
| G90 series | 250 | 300 | 4 | － | － | ＋ |
| G135 series | 250 | 300 | 7 | － | － | ＋ |
| 150B series | 250 | 300 | 8 | ＋ | ＋ | ＋ |
| 200B series | 150 | 200 | 11 | ＋ | ＋ | ＋ |
| 300B series | 150 | 200 | 14 | ＋ | ＋ | ＋ |
| 430C series | 100 | 150 | 18 | ＋ | ＋ | ＋ |
(note) Including four clasps. (or four screws or two bands)

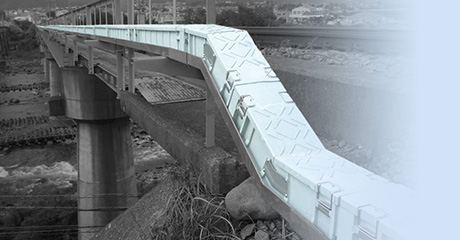

Installation
