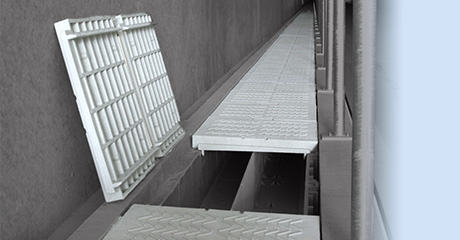

Straight type with divider function.
The moveable divider wall allows the user to separate different cable types.
Size
Material of divider: Calcium silicate
| Size | A (mm) | B (mm) | C (mm) | D (mm) | Length (mm) |
Weight (kg) |
Screw type | Clasp type | Band type |
|---|---|---|---|---|---|---|---|---|---|
| G135 series | 135 | 170 | 125 | 170 | 1000 | 10 | － | － | ＋ |
| 150B series | 160 | 210 | 135 | 190 | 1000 | 13 | ＋ | ＋ | ＋ |
| 200B series | 200 | 270 | 185 | 255 | 1000 | 21 | ＋ | ＋ | ＋ |
| 300B series | 300 | 390 | 175 | 265 | 1000 | 27 | ＋ | ＋ | ＋ |
| 430C series | 450 | 540 | 255 | 360 | 500 | 24 | ＋ | ＋ | ＋ |
Installation
-
-
-
Built-in divider stand
-
An example of cables separated by the divider wall
