Parts of EFLEX & Straight

”Aqua Series” have watertight connection with a moisture-activated expanding fabic lining.
Without some tapes and putty, it’s very easy to install.

•

  Aqua Series

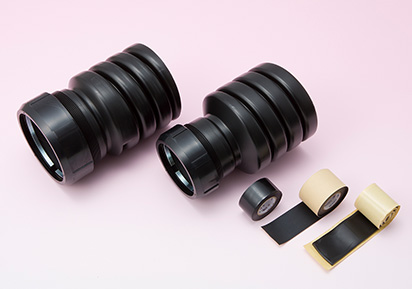

  Joints with Oter Types of Pipe Conduits (AQ-Type)
  • For connecting EFLEX to other types of cable duct.
  • Watertight connection with a moisture-activated expanding fabic lining
•

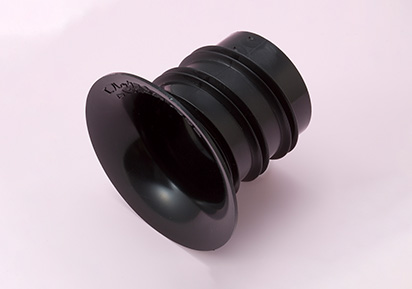

  Bell Mouth

  Secures EFLEX to the chamber wall, allowing for safe pulling and postiionaing of ducts.

  ※ Non-watertight. Please use epoxy putty for water tightness.

•

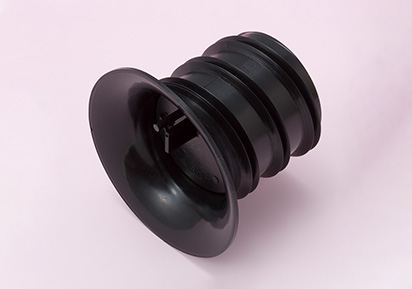

  BellMouth with Lid

  Prevents sand/soil and deposits from entering the duct.

  ※ Non-watertight. Please use epoxy putty for water tightness.

•

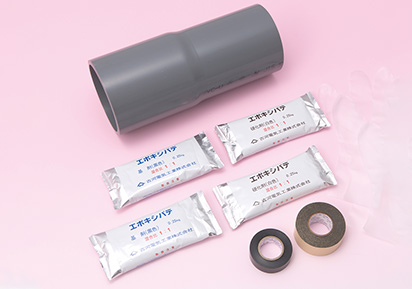

  (A-Type)
  • Allows connection to any type of duct, when the AQ Type connector is not suitable.
  • Requires EPOXY putty.
•

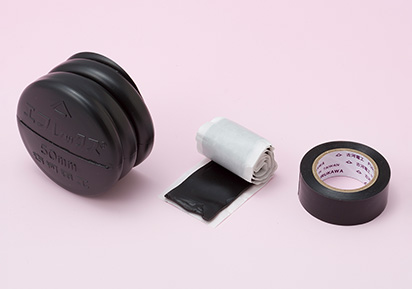

  Waterproof cap

  Creates a water tight seal at the duct opening.

•
  Clamp

  Connects EFLEX to a termination box.

  ※ Non-watertight.

•

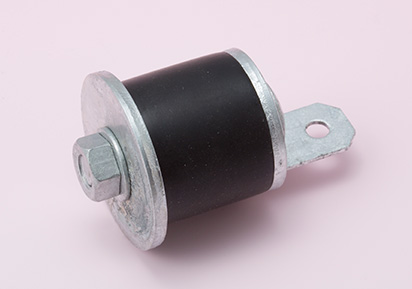

  Waterproof plug

  Prevent water from entering the duct by inserting into the Bellmouth.

•

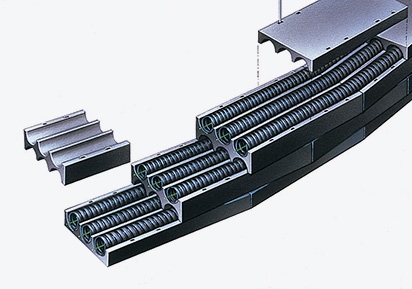

  Kota-kun

  Provides additional strength for EFLEX and lower installation scosts compared to concrete alternatives.
