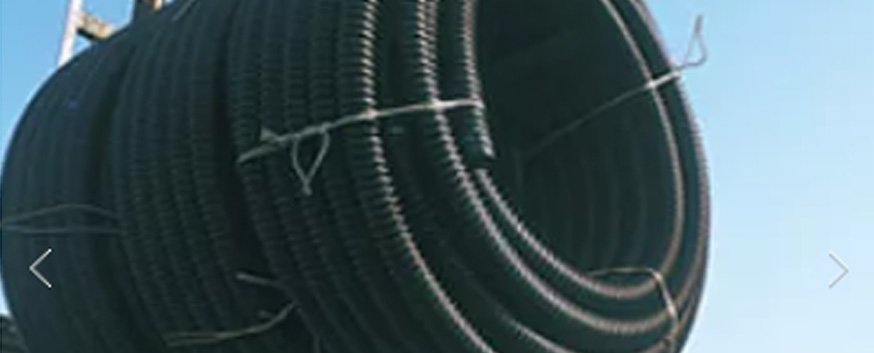

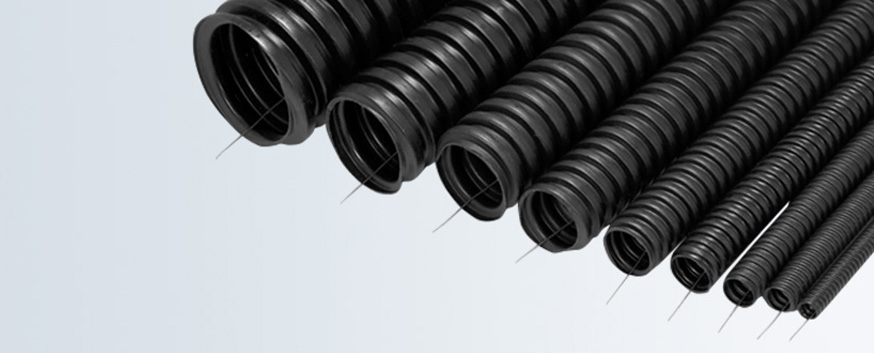

EFLEX is a well established buried cable protection system that Furukawa has been supplying for more than 50 years.
EFLEX provides simple installation thanks to its low weight and versatile accessories.
Movie
-

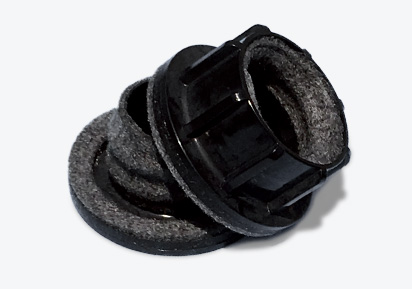

Aqua connector is the parts of EFLEX, and used to connect the pipe to handhole easily.
-

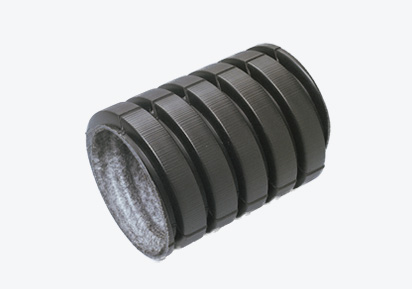

Aqua fit is the parts of EFLEX, and used to connect pipe to pipe.
Size
FP-

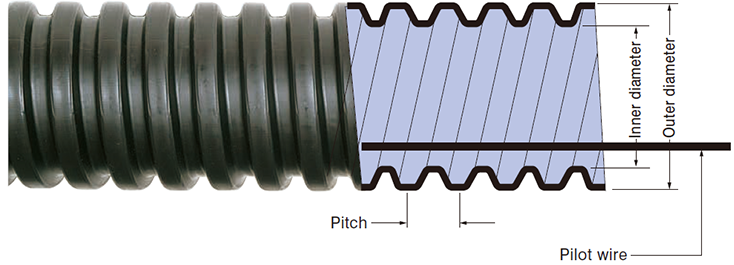

Standard diameters table
| Product No. | Outer diameter |
Inner diameter (approx. in mm) |
Pitch (approx. in mm) |
Reference weight (approx. in kg/m) |
Standard length of product bundle (m) | Standard diameters of product bundle Outer diameter x width (approx. in m) |
|---|---|---|---|---|---|---|
| FP-30 | 40 | 30 | 10 | 0.2 | 300 | 1.2×0.5 |
| FP-40 | 54 | 42 | 13 | 0.3 | 200 | 1.5×0.65 |
| FP-50 | 65 | 50 | 17 | 0.4 | 200 | 1.6×0.7 |
| FP-65 | 85 | 66 | 21 | 0.6 | 100 | 1.6×0.65 |
| FP-80 | 102 | 80 | 25 | 0.7 | 100 | 1.7×0.7 |
| FP-100 | 130 | 100 | 32 | 1.0 | 100 | 2.0 ×0.8 |
| FP-125 | 160 | 125 | 39 | 1.5 | 50 | 1.6×1.2 |
| FP-150 | 189 | 150 | 47 | 2.0 | 50 | 1.8×1.3 |
| FP-200 | 253 | 200 | 55 | 3.5 | 40 | 2.25×1.1 |
- When purchasing EFLEX, it is recommended that its nominal diameter be more than 1.5 times as large as the outer diameter of the cable to be accommodated.
- The allowable bending radius should be five times or more of the EFLEX outer diameter.
・If cables are not drawn in for a long time, the pilot wires could corrode. Replace them with plastic order wires to suit the conditions of use. When drawing in cables, replace pilot wires with order wires for the purpose.・Keep away from fire
Advantages of EFLEX
Easy to use
- Lightweight plastic construction.
- Flexible.
- Supplied with an installed pilot wire to aid cable installation.
- Provided in long lengths and can be easily cut to size.
Strong and Resistant
- Withstands 25 tons loads when buried at 300mm.
- Corrosion, weather and chemical resistant.
- Flame retardant.
Characteristic Parts
- Watertight connection with a moisture-activated expanding fabric lining
- EFLEX Straight and Square can be connected.

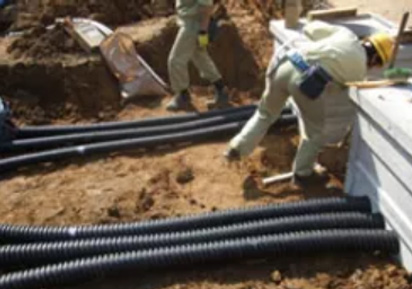

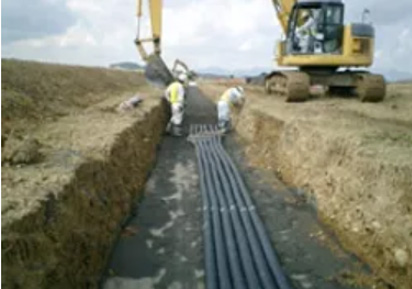

Installation
-

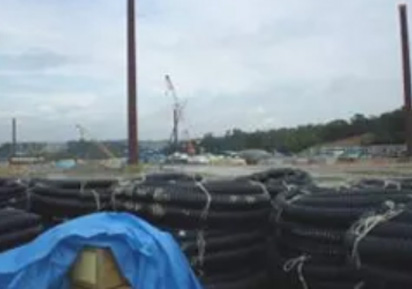

Airport
Due to its long length, EFLEX can reduce installation time on large-scale projects.
-
Factory
Flexibility allows for installation in confined spaces.
-

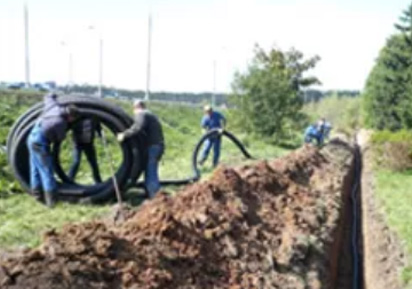

Park
Due to its long length, EFLEX can reduce installation time on large-scale projects.
-

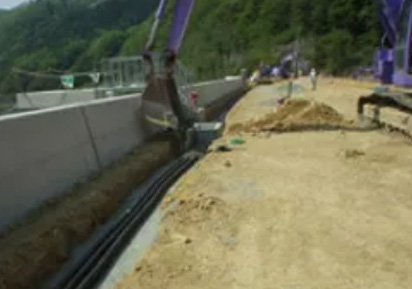

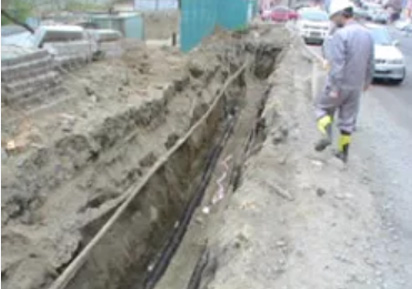

Road
The flexibility allows for cable routes to road route.
-
National Park
EFLEX can be installed with standard tools.
-
Bank
Due to its long length, EFLEX can reduce installation time on large-scale projects.
