Furukawa Electric Announces Sampling of Micro ITLA for 100Gb/s Optical Coherent Transmission

March 13, 2013

OFC/NFOEC 2013, Booth #2627, Anaheim, California, March 18, 2013 - Furukawa Electric Co., Ltd. has developed a micro Integrable Tunable Laser Assembly (ITLA), a key component in ultrahigh-speed optical digital coherent transmission devices operating at 100 gigabits per second (Gb/s). This transmission device is now being introduced globally with initial sampling of the micro ITLA. In addition to meeting the industries' demand for much lower power consumption and high optical output, Furukawa has also developed a new wave length tunable laser chip that enables an additional 20% reduction in power consumption. When used in combination with the micro ITLA, it further reduces power consumption by 40% against conventional products and nearly doubles the optical output when compared with micro ITLA. These benefits along with the acceptance of the Optical Internetworking Forum (OIF) to standardize the ITLA specification make the micro ITLAs an attractive choice for optical communication devices. The new wave length tunable laser chips are planned to be mounted on the micro ITLA devices beginning in early 2014.

Presently, global network traffic continues to grow at a phenomenal rate in both terrestrial and wireless networks. With smartphones now a ubiquitous tool for consumers and business users, acceptance of cloud computing, data center connectivity and mass video distribution, the telecommunications industry is presently accelerating the deployment of 100Gb/s transmission systems for high capacity. The industry has converged on optical digital coherent technology in transmission systems, which involves the use of optical phases (wave conditions) resistant to signal deterioration and impervious to the effects of noise.

Furukawa has already commercialized high-output and narrow-line-width ITLAs that exhibit excellent properties for signal lights from the optical digital coherent system(note 1) and for local oscillator(note 2). Since the industry continues to demand higher capacity, the specifications for small and low power-consumption ITLAs have now been accepted and standardized by the OIF(note 3).

The micro ITLA is a light source that has been made smaller, consuming less electricity while retaining the same specifications of conventional ITLAs that the industry is used to. These specifications include communications protocol and optical-electric properties.

Conventional (top) and micro ITLA (bottom) comparison

Using its innovative history and manufacturing prowess, Furukawa has developed technologies for assembling and fixing high-accuracy optical components for manufacturing micro ITLAs (half the size or less compared to conventional ITLAs, 45 x 20mm). A small package module has been developed by harnessing these technologies. Furukawa's expertise in laser driver circuits and digital circuits has also been exercised to reduce the form factor.

The new wave length tunable laser chips from Furukawa can reduce power consumption by 20% from 5W to 4W. Currently available conventional lasers use GaInAsP crystals as active layers of the lasers. However, the optical output is reduced significantly at higher temperatures requiring cooling operation below room temperature. Furukawa's new wave length tunable laser chips use AlGaInAs crystals(note 4) for the light-emitting layer. By using this material, Furukawa has achieved better control of the optical output at higher temperatures improving it to 16dBm or higher compared with 13.5dBm of conventional GaInAsP products. In addition, new wavelength tunable laser chips also increases the operating temperature by 15 degrees Celsius higher than conventional products, thus reducing the power consumption on the TEC(note 5) and even lower when used on the micro ITLA (up to 40% compared to conventional products).

The new micro ITLA product will be exhibited at OFC/NFOEC 2013, scheduled to be held from March 19 in Anaheim, California, United States. A paper on the new wave length tunable laser chips will also be presented at the IEICE General Conference 2013, which will be held in Gifu, Japan from March 19.

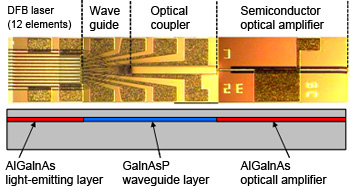

Picture of the semiconductor lasers and the schematic cross-section diagram

Technical Specifications
Item Specifications of micro ITLAs Specifications of conventional ITLAs
Wavelength variable width 1528 to 1564nm (C band)
1570 to 1607nm (L band)
1528 to 1564nm (C band)
1570 to 1607nm (L band)
Optical output 13.5dBm (1st release)
16dBm (with new chip)
13.5dBm or greater
Line width < 500kHz < 500kHz
Side mode suppression ratio > 40dB > 40dB
Average relative intensity noise < -140dB/Hz  < -140dB/Hz
Wavelength stability < ±2.5GHz < ±2.5GHz
Power consumption 5W 6.5W
Size 45×20×7.5mm 74×30.5×10.5mm


(note 1)Optical digital coherent system - Involving the use of digital signal processing to detect optical phase information from transmitted data, the system is capable of transmitting a large volume of information within a narrow bandwidth.

(note 2)Local oscillator - In the optical digital coherent system of transmission, this kind of light is locally used to facilitate interference with signal lights to obtain phase information from the transmitted data. This requires a narrow line width.

(note 3)OIF - Optical Internetworking Forum is an industry group that endorses the standardization of optical network devices and their optical components.

(note 4)AlGaInAs - This material makes it possible to create lasers that control the lowering of output even at high temperatures, compared to the conventional GaInAsP. As it contains Al which is oxidized readily, it is generally considered difficult to apply AlGaInAs to integrated-type optical elements that are produced through complicated processes.

(note 5)TEC - Thermoelectric Cooling Module - This module carries out heat generation and heat absorption by passing a current to the portion connecting two thermal electronic materials. It is used for adjusting the temperature of the laser chips in this product.
