Development of the functional fine metal particle PoMPFINE with a metal coating applied
- Featuring significantly enhanced semiconductor mounting reliability -
KANZACC Co., Ltd. (Head Office: Osaka-shi; President: Hisakazu Ishibashi; hereinafter, “KANZACC”), a member of the Furukawa Electric Group, has developed a functional fine metal particle PoMPFINE with another metal coating applied to the surface of the metal particles.
There are various types and diameters of metal particles that have been used in a broad range of applications, but the metal particles in the “PoMPFINE” that we have developed this time are coated with another kind of metal, creating functional particles that include new functions.
It is possible to select the type of metal, substrate particle diameter, and metal coating of the surface. Using these particles will contribute to significantly enhanced semiconductor mounting reliability. In addition, by applying surface treatment to the heat sink material and other equipment, a heat dissipation effect is expectable. KANZACC is also planning to develop a broad range of uses such as application to conductive film and the like.
KANZACC aims to implement functional fine metal particles by the second half of 2014 and anticipates sales of 100 million yen in fiscal 2016.
- Functional fine metal particles with a metal coating applied
- Contribution to enhanced semiconductor mounting reliability
- Improved heat dissipation
|Type of metal substrate||Cu, Ni, Sn, Sn-Ag-Cu, etc.|
|Type of coating||Ni, Ag, Au, Cu, Sn, In, etc.|
|Particle diameter (standard)||2.5 – 50 μm|
(note) Other metals can also be applied for the coating and substrate.
Metal particles (substrate)/metal coating
- Reflow soldering of electronic components, semiconductors, and the like
- Applied to the conductive film and surface treatment of the heat sink material

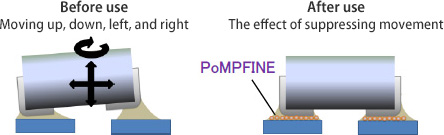

The effects of using PoMPFINE when mounting semiconductors
KANZACC Co., Ltd.
Sales Management Department
