Method of analysis established for compound semiconductors using electron holography
- The first success in the world capturing the minuscule impurity concentration differential -

August 21, 2014

Furukawa Electric Co., Ltd. has established a method of analysis for the distribution of impurities in compound semiconductors (note 1) with electron holography (note 2) through collaborative research with the Japan Fine Ceramics Center (hereinafter JFCC) (note 3). This research captured not only the p-n junction (note 4) in compound semiconductors, but rather it was also the first success in the world capturing the minuscule impurity concentration differential.


Optical communications and industrial laser devices of Furukawa Electric are manufactured using compound semiconductor material, and the device structure is designed to incorporate a mixture of minuscule impurities. Because these products comprise impurities at a nano level, the distribution of impurities in the products must be analyzed at a nano level in development and manufacturing.


Through collaborative research with the JFCC, Furukawa Electric has succeeded in observing not only the p-n junction, but also the minuscule impurity concentration differential, using electron holography, which is one method of electron microscopy. This method can be used to analyze defective products in semiconductor devices and to develop new products because two-dimensional complex device structures can be analyzed at a nano level. Specifically, this method clarifies the cause of device failure, and by providing feedback on the manufacturing process and design we can determine design guidelines for high output and long operating life.

The results of this research were selected as the Editor's Choice Paper in the Journal of Microscopy, Number 3, Volume 63 issued by the Japanese Society of Microscopy (note 5), and photos taken through the electron holography method that was successfully developed this time were featured on the cover.

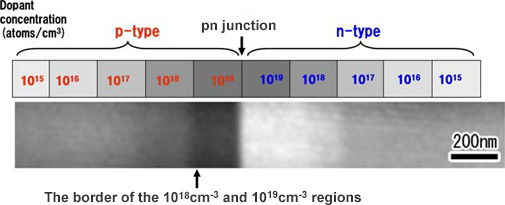

Phase image by GaAs semiconductor electron holography
The 1018cm-3 and 1019cm-3 regions in a P-type semiconductor are clearly discernable.
