These high-power blue oscillators are equipped with blue laser diode modules and were jointly developed with Nichia Corporation. Blue semiconductor laser beams are output directly for excellent energy efficiency.

This blue laser can be used in conjunction with a fiber laser to perform blue-IR hybrid processing, and is also ideal for PI/PAI flat wire insulation removal and various types of copper processing.

BR0400

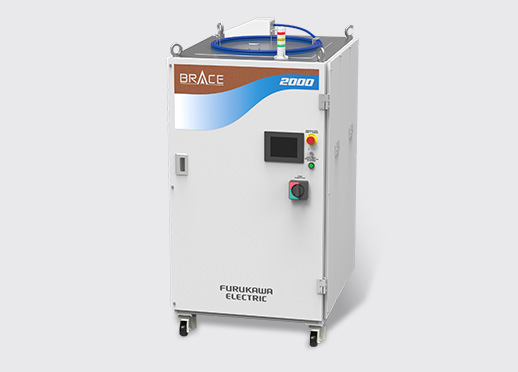

BR2200

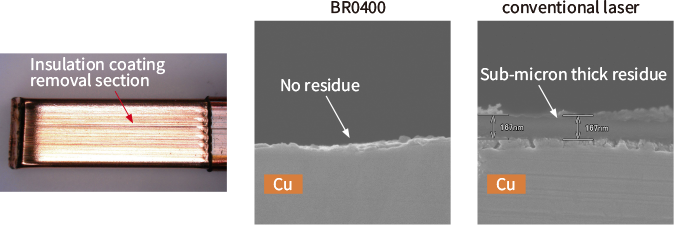

Flat wire insulation removal using the blue laser

BR0400 is a 400 W blue CW laser that is capable of completely removing PI/PAI insulation from flat wires at high speed and high efficiency, using a blue beam with a high energy density output from a 110 μm core.

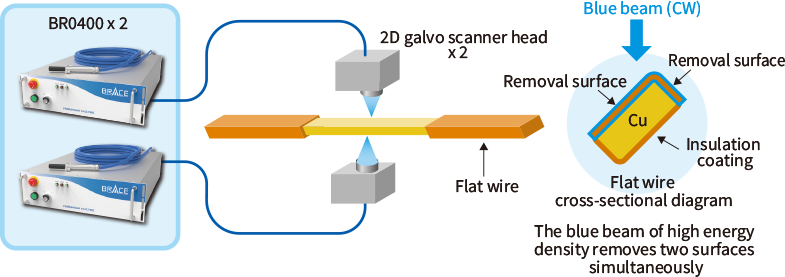

A single unit can remove two surfaces, and two units can be used together to remove all surfaces.

Videos

Product Catalogs

Brochures and product catalogs can be downloaded here.

Catalog Download

Inquiries about Industrial Lasers
