World's highest penetration depth

Model Fiber core diameter Power density (W/cm2) Beam quality (typ.)
1.5kW single-mode 14µm 9.7 × 108 <1.1(M2 value)
6kW multi-mode 50µm 3.1 × 108 1.7 mm · mrad (BPP value)
12kW multi-mode 100µm 1.5 × 108 3.3 mm · mrad (BPP value)

Fiber laser (IR)

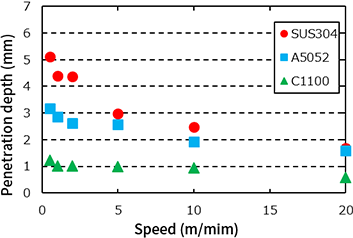

1.0kW single-mode fiber laser

  Stainless steel (SUS304) Aluminum (A5052) Copper
(C1100)

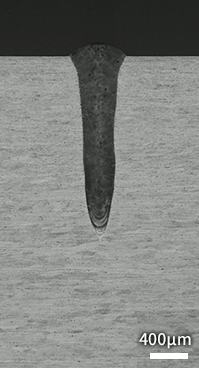

Cross-sectional photograph
Speed
(mm/sec)
10 10 10
Penetration
depth (mm)
2.5 1.9 0.9

Penetration depth equivalent to Furukawa Electric's 2 kW multi-mode fiber laser

6kW multi-mode fiber laser

  Stainless steel (SUS304) Aluminum (A5052) Copper (C1100)

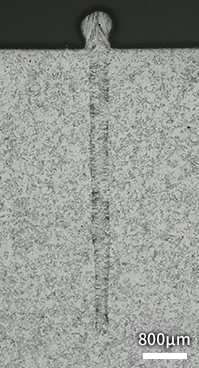

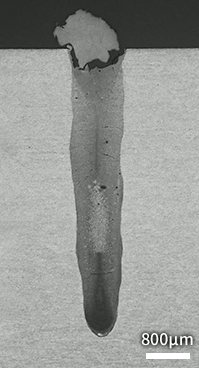

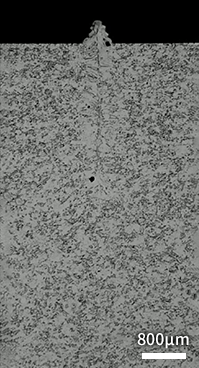

Cross-sectional photograph
Speed (m/min) 10 10 10
Penetration depth (mm) 5.8 5.7 2.0

Capable of high-speed cutting and welding of medium thickness sheets

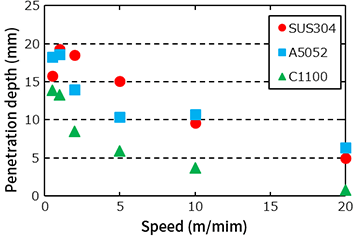

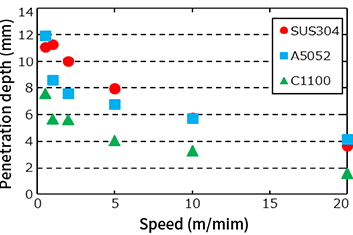

12kW multi-mode fiber laser

  Stainless steel (SUS304) Aluminum (A5052) Copper (C1100)

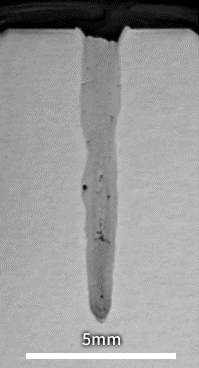

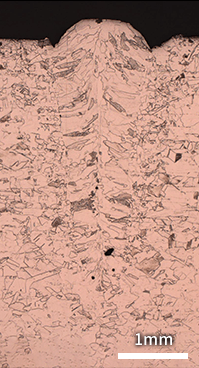

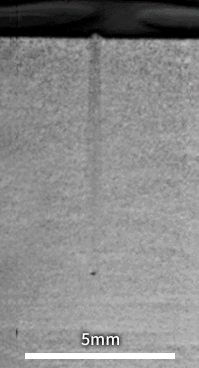

Cross-sectional photograph
Speed (m/min) 10 10 10
Penetration depth (mm) 9.6 10.7 3.7

Capable of high-speed cutting and welding of medium thickness sheets

Multi-mode Fiber Laser product details

Blue-IR hybrid laser

Blue 2000 W, IR 5800 W

  Copper
(C1020)

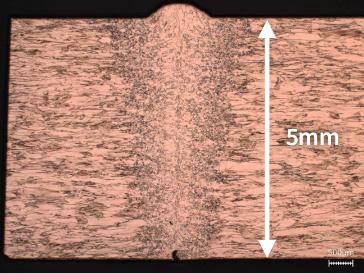

Cross-sectional photograph
Speed (mm/sec) 100
Penetration depth
(mm)
5
